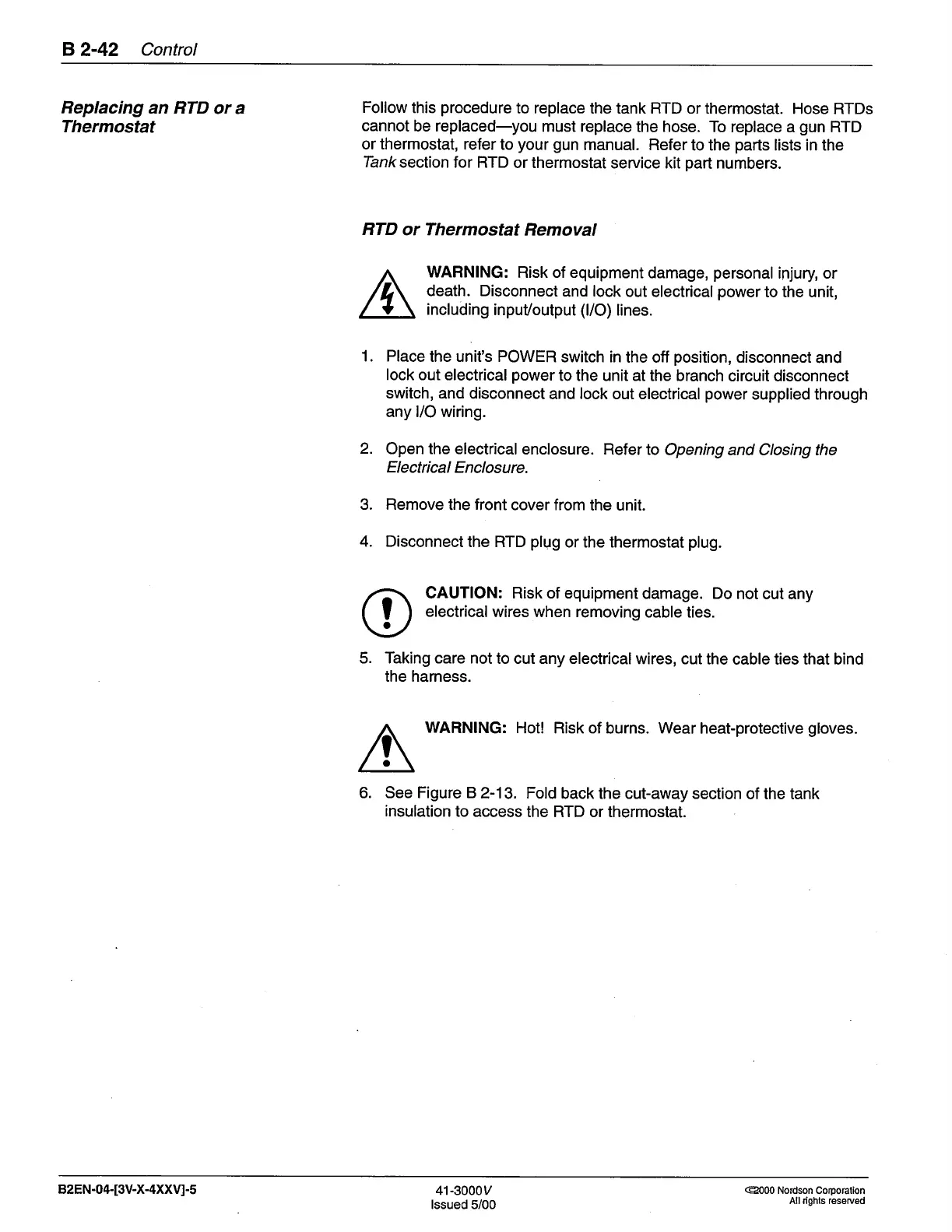

Nordson 3100V Series Customer Product Manual

B 2-42
Control
Replacing
an RTD
or a
Thermostat
Follow
this
procedure
to replace
the tank FITD or thermostat.
Hose RTDs
cannot
be replaced-you
must replace
the hose. To
replace a
gun
RTD
or thermostat,
refer to
your gun
manual. Refer
to the
parts
lists in
the
Ianksection
for RTD
or thermostat
seruice kit
part
numbers.
RTD
or Thermostat
Removal
WARNING:
Risk of equipment
damage,
personal
ipjury, or
death. Disconnect
and
lock
out electrical
power
to the unit,
including
inpuUoutput
(l/O)
lines.
Place
the unit's POWER
switch in
the off
position,
disconnect
and
lock out electrical
power
to the unit at the branch
circuit disconnect
switch,
and disconnect
and
lock
out electrical
power
supplied through
any l/O wiring.
2.
Open the electrical
enclosure. Refer
to
Opening and Closing the
Electrical
Enclosure.
3. Remove
the
front
cover from
the unit.
4. Disconnect
the RTD
plug
or the thermostat
plug.
CAUTION: Risk of equipment
damage. Do
not cut any
electrical
wires when removing
cable
ties.
5. Taking care not
to cut any electrical
wires, cut
the cable ties that bind
the harness.
WARNING:
Hot! Risk of
burns.
Wear
heat-protective
gloves.
6. See Figure B
2-13. Fold
back the cut-away section
of the tank
insulation
to access
the RTD or thermostat.
!
82EN-04-[3V-X-4XXVj-s
41-3000v
lssued 5/00
@00 Nordson
CoDoration
All dghts reseNed
