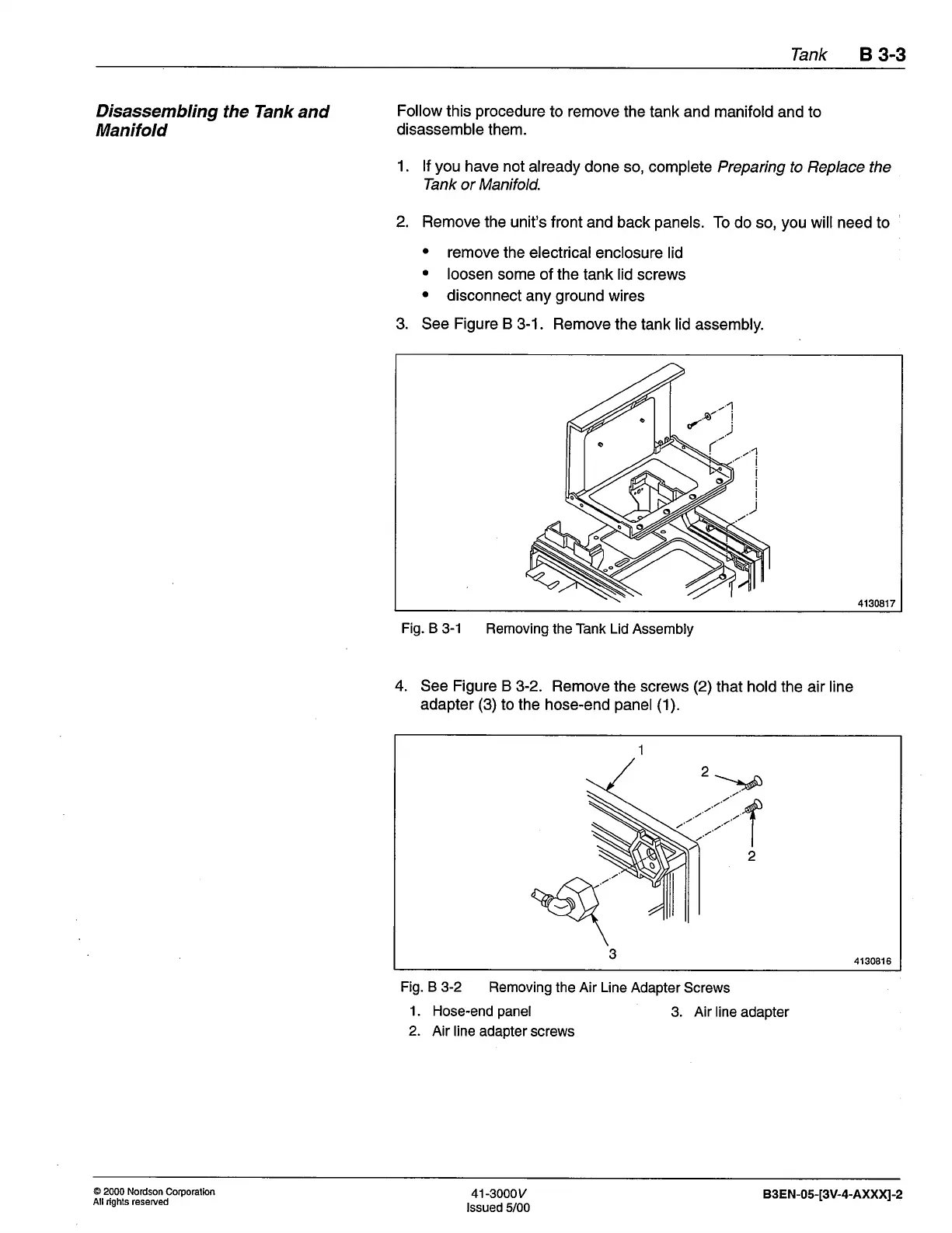

Nordson 3100V Series Customer Product Manual

Tank
B 3-3
Disassembling
the Tank and
Manifold
Follow
this
procedure
to remove the
tank
and
manifold and to
disassemble
them.
1.
lf
you
have not
already done so, complete Preparing
to Replace the
Tank
or Manifold.
2. Remove the
unit's front and back
panels.
To do so,
you
will need to
.
remove
the electrical
enclosure lid
.
loosen
some of the
tank
lid
screws
.
disconnect
any
ground
wires
3. See
Figure
B 3-1. Remove
the tank lid assembly.
4130817
Fig. B
3-1 Removing
the
Tank Lid
Assembly
4. See Figure B
3-2. Remove the
screws
(2)
that hold the air line
adapter
(3)
to the hose-end
panel
(1).
1
2
2
3
4130816
Fig. B 3-2
Removing the
Air
Line
Adapter Screws
1. Hose-end
panel
3.
Air line
adapter
2.
Air line
adapter screws
o
2000 Nordson
Corporation
All rights reseled
41-3000y
lssued 5/0O
83EN-05-[3V-4-AXXX]-2
