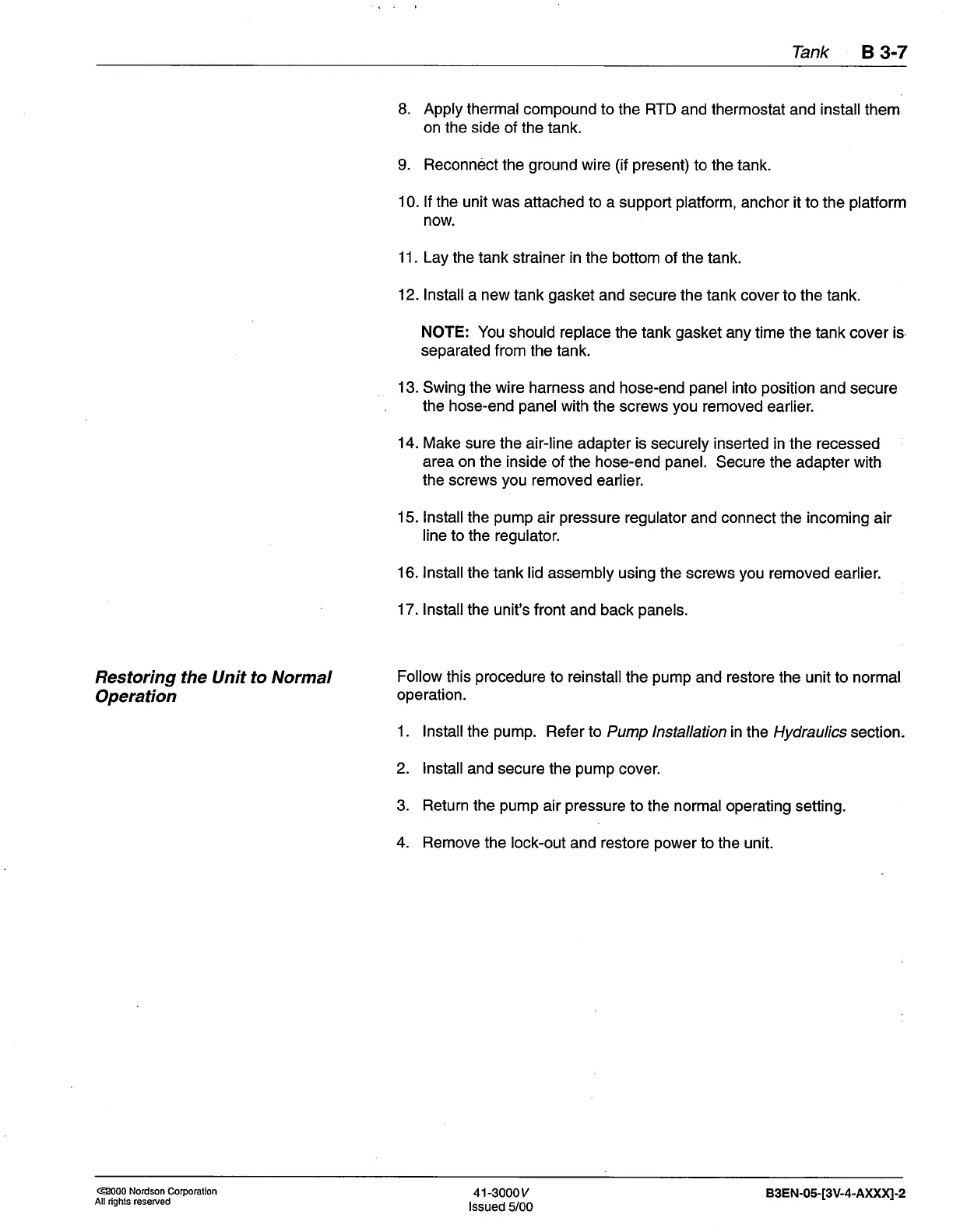

Tank
B
3-7
Restoring the
Unit
to Normal
Operation
B.
Apply
thermal compound to
the RTD and thermostat and install
them
on the side of the tank.
9. Reconnect the
ground
wire
(if present)
to the tank.
10. lf the
unit
was
attached to a support
platform,
anchor it to the
platform
now.
11. Lay
the tank strainer in
the bottom of the tank.
12. lnstall
a new tank
gasket
and secure the tank cover
to the tank.
NOTE: You
should replace
the
tank
gasket
any time the tank cover is.
separated from the tank.
13.
Swing the wire harness
and hose-end
panel
into
position
and secure
the hose-end
panel
with
the screws
you
removed
earlier.
14. Make
sure the
air-line
adapter is
securely inserted in the recessed
area on the inside
of the hose-end
panel.
Secure the adapter with
the screws
you
removed earlier.
15. lnstall the
pump
air
pressure
regulator
and
connect
the
incoming
air
line to the regulator.
16. lnstall
the tank lid assembly using
the screws
you
removed earlier.
17. lnstallthe
unit's front and back
panels.
Follow
this
procedure
to
reinstall
the
pump
and restore
the
unit
to
normal
operation.
1 . lnstall
the
pump.
Refer to Pump
lnstallation in lhe Hydraufbs
section,
2. lnstall
and secure the
pump
cover.
3.
Return
the
pump
air
pressure
to the normal operating setting.
4. Remove
the lock-out
and
restore
power
to the unit.
@000 Nordson
Corporation
All dghts reserved
41-3000y
lssued
5/00
BsEN-05-[3V-4-AXX]0-2
