MEG® II Airless Spray Guns with 10 ft Cable
© 2021 Nordson Corporation
1602990-12
Optional Equipment
90 Degree Cable Routing Fitting Kit

appropriate location.
See .
Item Part Description Quantity Note
— 1609137  1
— 1613314  1
1
945064 •  2
1614049 •  2
2 - - - - - - • FITTING, strain, ½-20 M x ½-20 F 1
3 972367 •  2
4 - - - - - - • NIPPLE, ¼ NPT x 1.5 in., stainless steel 1
5 973141 • ELBOW, male, pipe, hydraulic, ¼ in., stainless steel 1
1
2
1
3
3
4
5
Removed from the gun
Leave on gun

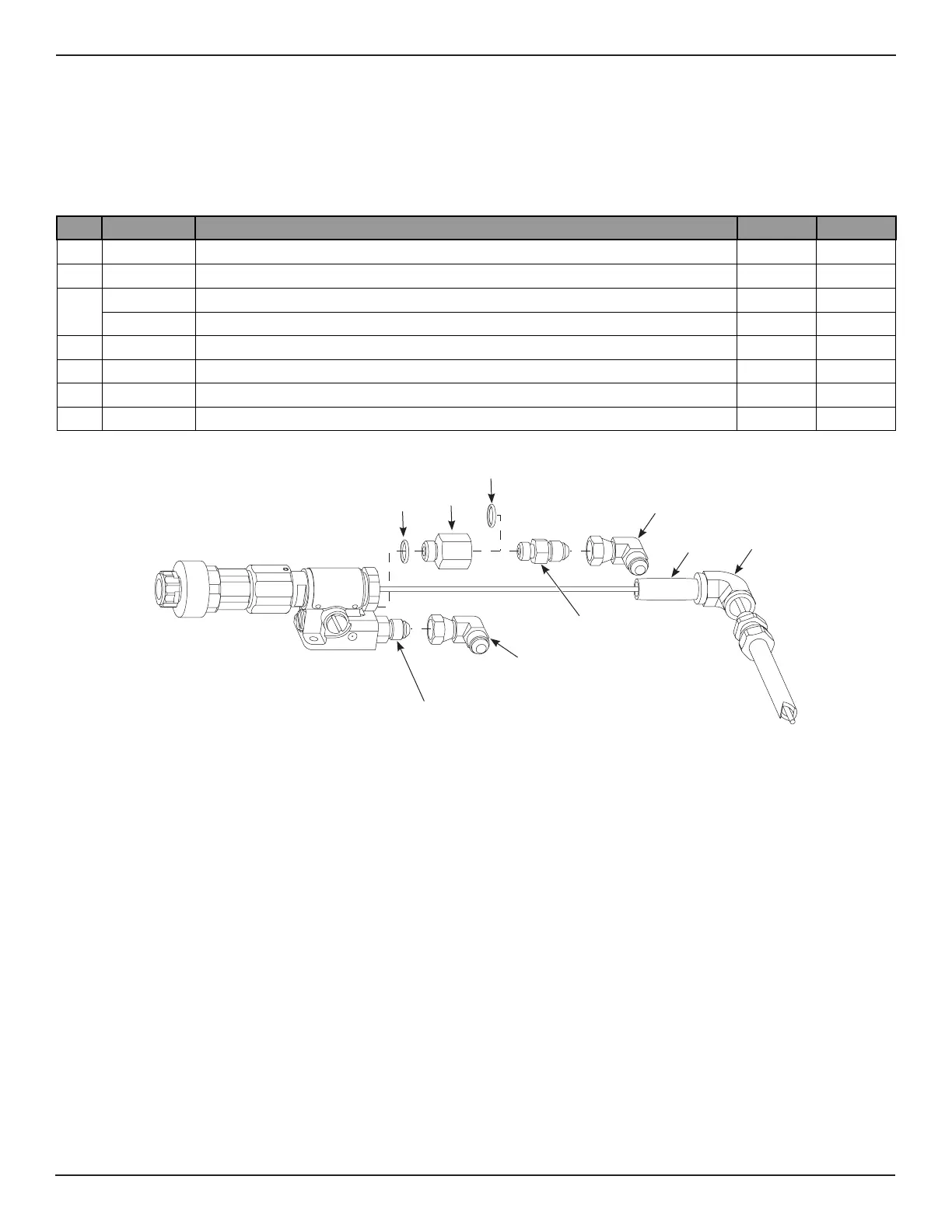

Figure 10 90 Degree Cable Routing Fiting Kit
