MEG® II Airless Spray Guns with 10 ft Cable
© 2021 Nordson Corporation
1602990-12
IIII 2 G 2 G
Conduit and
Cable Length:
10 ft (304 mm)
1.06 in
27 mm
5.43 in.
138 mm
6.46 in.
164 mm
7.32 in.
186 mm
0.80 in.
20 mm
0.37 in.
9 mm
1.54 in.
39 mm
1.28 in.
32 mm
1.85 in.
47 mm
Mounting Holes

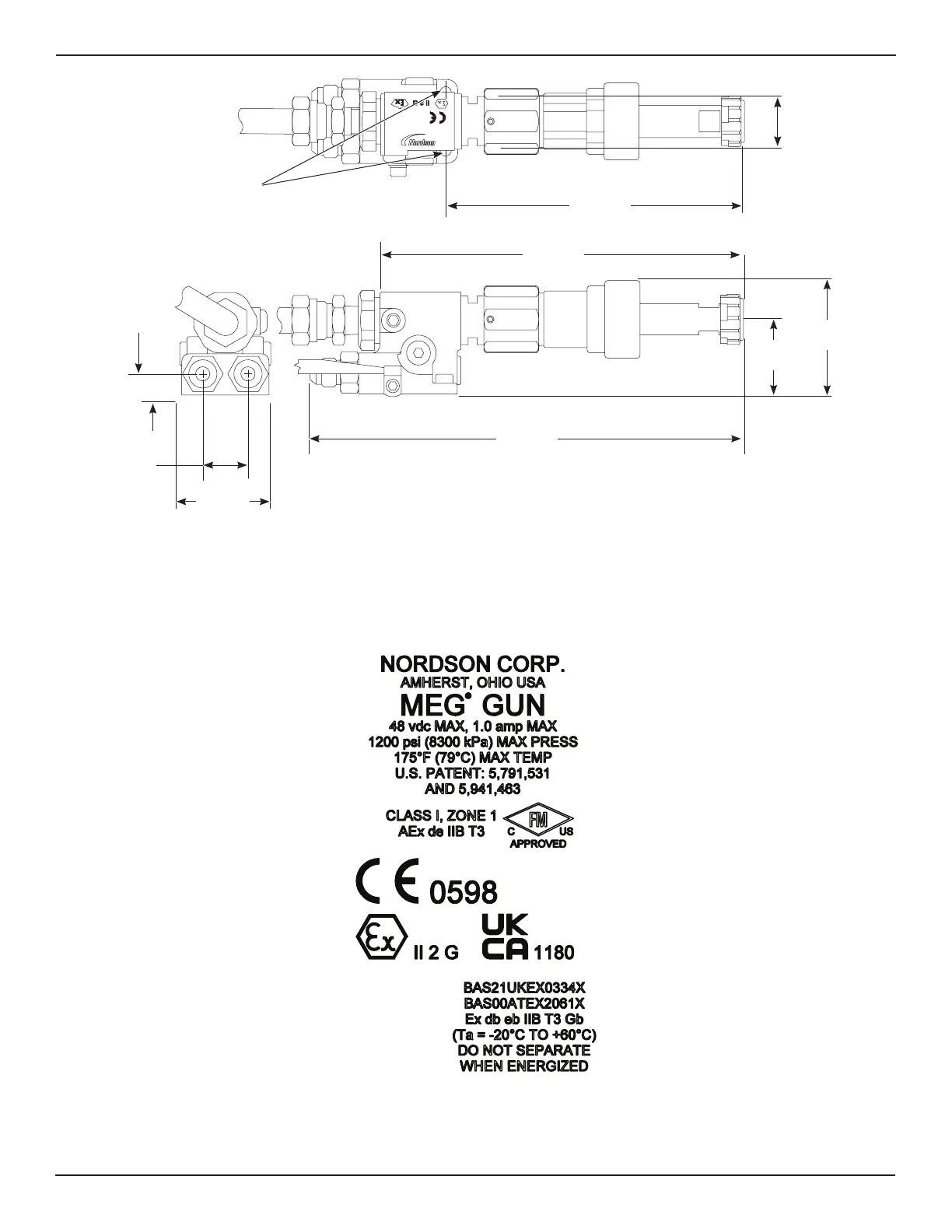

Figure 13 Gun Dimensions for Extended Tip Spray Gun
Ratings and Label Information
See Figure 14.
Figure 14 

Nordson MEG II Specifications
