Noritsu QSS-3201 - Page 46

4 Installing the component parts and units
32

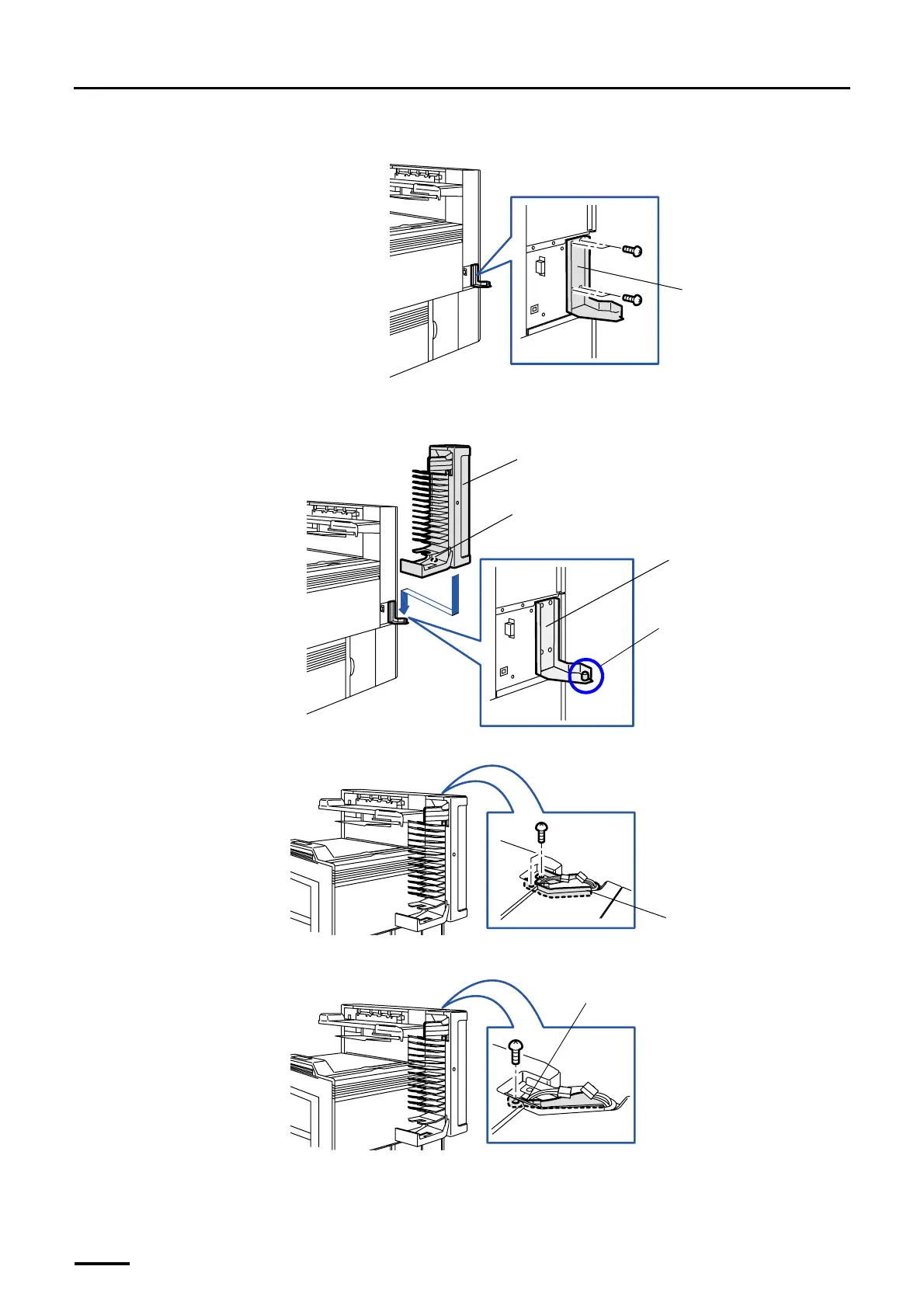

(1) Attach hinge 1. (four screws)
(2) Place the print sorter unit so that the pin of hinge 1 is inserted into the attaching hole of the print sorter
unit.
(3) Fix hinge 2. (two screws)
(4) Attach the ground wire. (one screw)
Hinge 1
G069001
Pin
Print sorter unit
Attaching hole
Hinge 1
G068893
Hinge 2
G070269
Ground wire
G070260
