๎๎ 3URJUDP &KDQJH
Point Programming
12 AFP-300/AFP-400 Programming PN 50259:C1 06/19/97
3URJUDPPLQJ D &RQWURO
0RGXOH ๎&0;๎
Programming a CMX module is similar to MMX modulesโexcept the default zone is

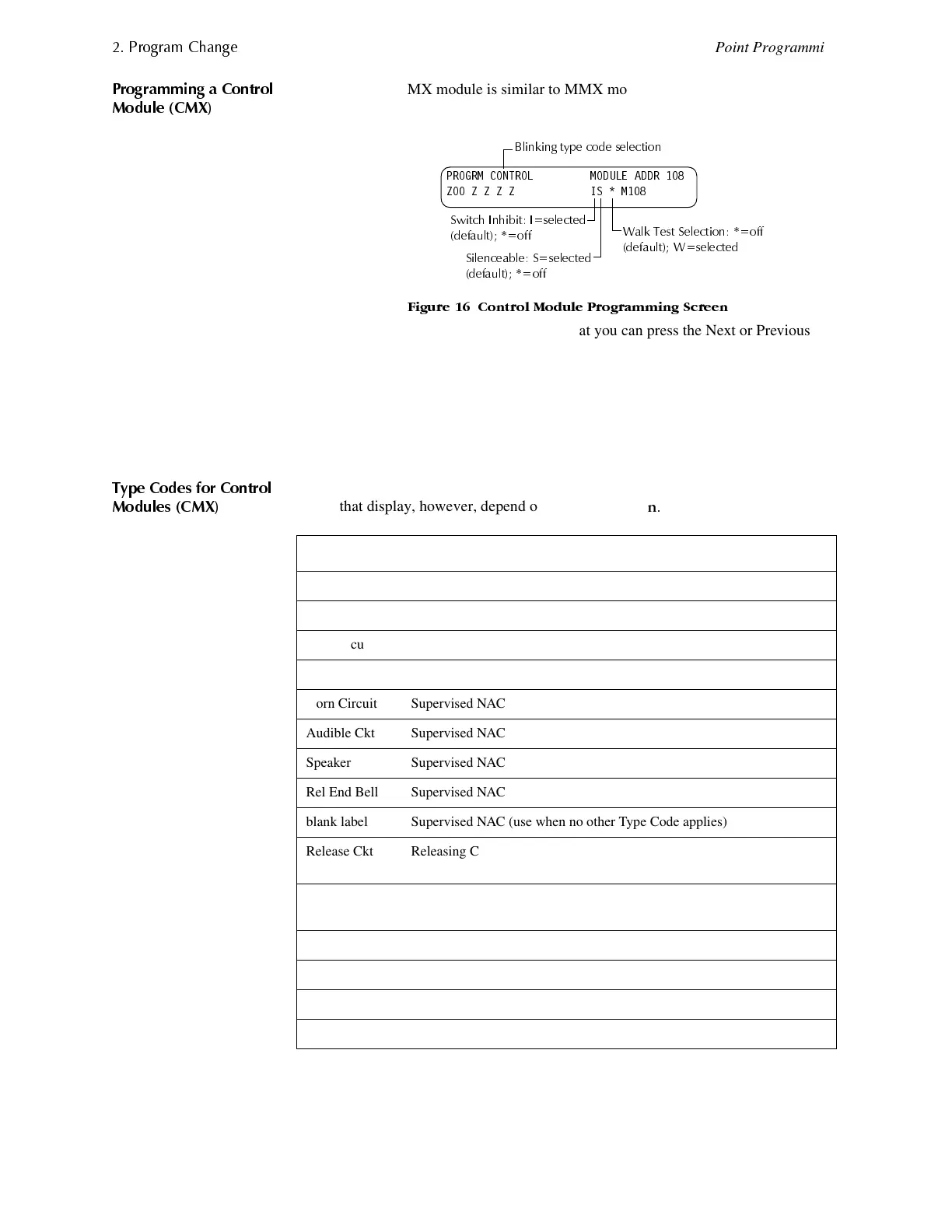

always set to Zone 00 (General Alarm). Figure 16 shows a sample display for editing a
CMX module:
)LJXUH ๎๎ &RQWURO 0RGXOH 3URJUDPPLQJ 6FUHHQ
The Type Code selection blinks, indicating that you can press the Next or Previous
Selection keys to scroll through the CMX Type Code selections (listed in Table 12).
You can also do the following:
1. Use the arrow and alphanumeric keys to modify point information, such as the
CBE equation.
2. When finished modifying a point, press <Enter>; then use the Next and Previous
keys to select another point.
7\SH &RGHV IRU &RQWURO
0RGXOHV ๎&0;๎
Table 12 contains a comprehensive list of Control Module Type Codes. The Type
Codes that display, however, depend on the configuratio
Q๎
Table 12 Control Module (CMX) Type Codes
:DON 7HVW 6HOHFWLRQ๎ ๎ RII
๎GHIDXOW๎๎ : VHOHFWHG
6ZLWFK ,QKLELW๎ , VHOHFWHG
๎GHIDXOW๎๎ ๎ RII
%OLQNLQJ W\SH FRGH VHOHFWLRQ
6LOHQFHDEOH๎ 6 VHOHFWHG
๎GHIDXO W๎๎ ๎ RII
352*50 &2 175 2/ 02'8/( $' '5 ๎๎๎
=2๎ = = = = ,6 ๎ 0๎๎๎
Type Code Special Function
Control Supervised NAC
Relay Relay output
Bell Circuit Supervised NAC
Strobe Ckt Supervised NAC
Horn Circuit Supervised NAC
Audible Ckt Supervised NAC
Speaker Supervised NAC
Rel End Bell Supervised NAC
blank label Supervised NAC (use when no other Type Code applies)
Release Ckt Releasing Circuit, nonpower-limited, supervised for opens, shorts, and
ground faults (always non-silenceable)
Rel Ckt ULC Releasing Circuit, power-limited, supervised for opens, shorts, and ground
faults
Relea. Form C Relay output, contacts operate upon release
Rel Audible NAC, activated upon release
NonReset Ctl Relay output, unaffected by โSystem Resetโ command
Telephone Standard telephone circuit
