AWACS Features
34 AFP-300/AFP-400 Programming PN 50259:C1 06/19/97

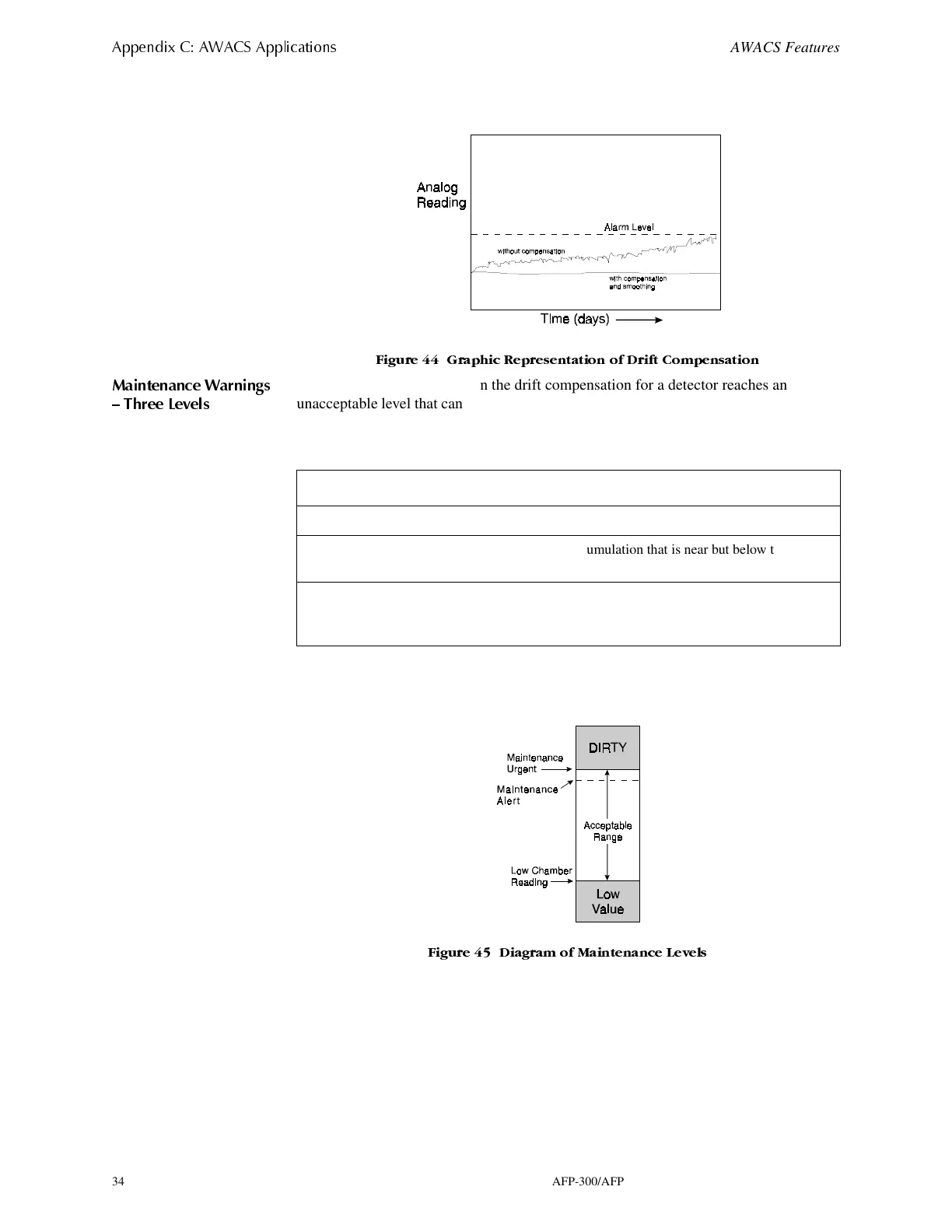

Figure 44 contains a graphic representation of a detector analog reading using drift
compensation and smoothing:
)LJXUH *UDSKLF 5HSUHVHQWDWLRQ RI 'ULIW &RPSHQVDWLRQ
0DLQWHQDQFH :DUQLQJV
² 7KUHH /HYHOV
The software determines when the drift compensation for a detector reaches an
unacceptable level that can compromise detector performance. When a detector reaches
an unacceptable level, the software gives a maintenance warning. Table 36 summarizes
the three levels of AWACS maintenance warnings:
Table 36 Definitions of AWACS Maintenance Levels
Figure 45 contains a graphic representation of the maintenance levels:
)LJXUH 'LDJUDP RI 0DLQWHQDQFH /HYHOV
Maintenance Level Indicates...
Low Chamber value a hardware problem in the detector.
Maintenance Alert dust accumulation that is near but below the
allowed limit.
Maintenance Urgent dust accumulation above the allowed limit. The
Maintenance Alert level allows maintenance before
the performance of the device is compromised.
