BACnet GW-3 Configuration and Operation BACnet GW-3 Configuration
32 BACnet Gateway-3 Installation and Operation Manual - P/N: 53372:Rev: A 5/6/09

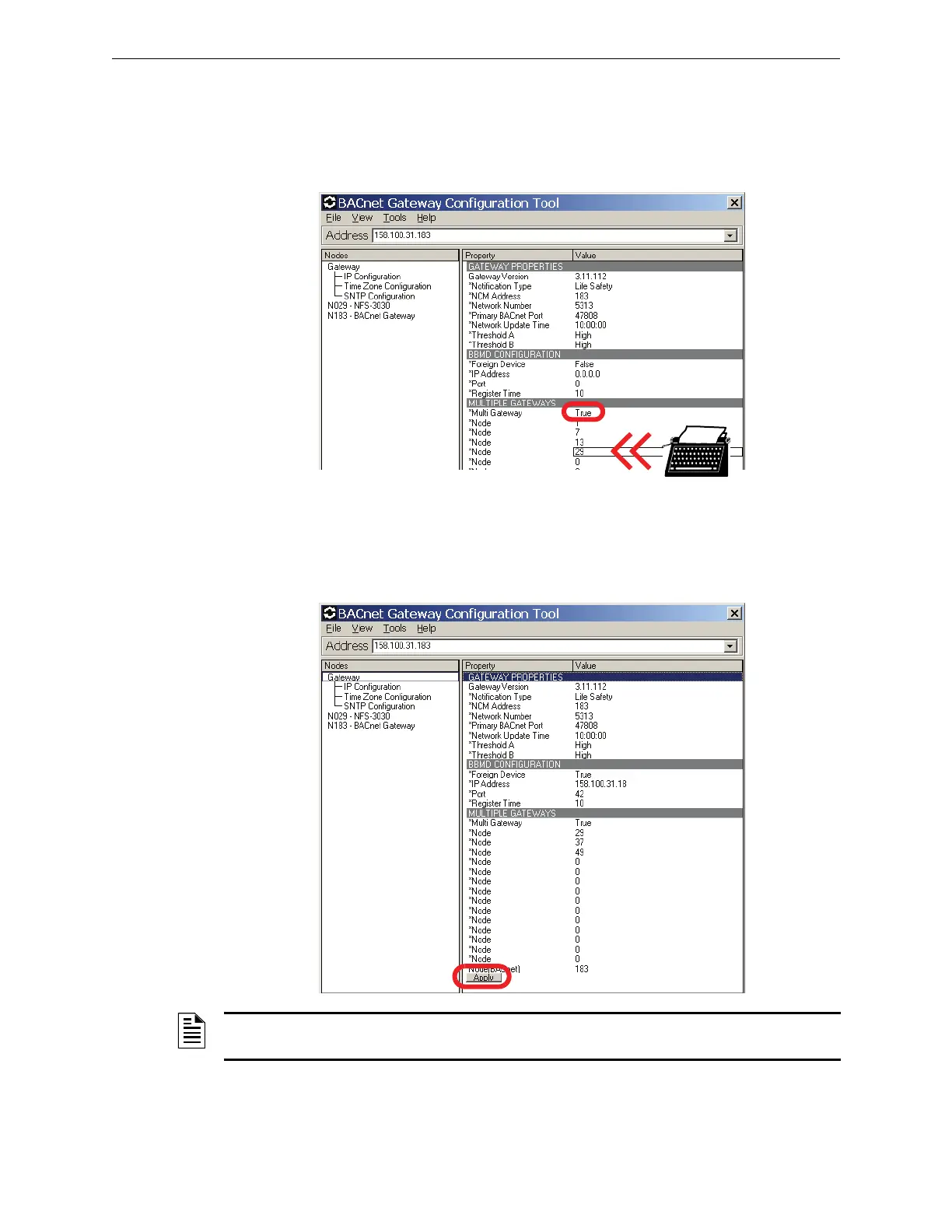

 Multiple Gateways
• NFN networks with more than 15 nodes must be monitored using the Multiple Gateway
option.
• When using this Multiple Gateway option, set the Multiple Gateway value to True, and enter a
value for each network node to be monitored by this BACnet GW-3.
• You may enter up to 14 nodes for FACPs to be monitored, since the BACnet GW-3 can support
15 nodes including itself.
 Apply Settings
Step 5. Once all BACnet GW-3 settings have been properly configured, click Apply at the bottom
of the Value pane to apply the settings and reboot the gateway.
NOTE: If you are changing settings on a BACnet GW-3 previously configured with monitored
nodes, this screen button will be labeled Apply And Delete Objects.
