BACnet GW-3 Local Configuration Direct Connection to the Gateway Board
50 BACnet Gateway-3 Installation and Operation Manual - P/N: 53372:Rev: A 5/6/09
The cross over cable can be purchased or you can make one. Please use the following information
for the correct pinout requirements for each end of the cable. EIA/TIA wire color-code standard
568B is applicable.

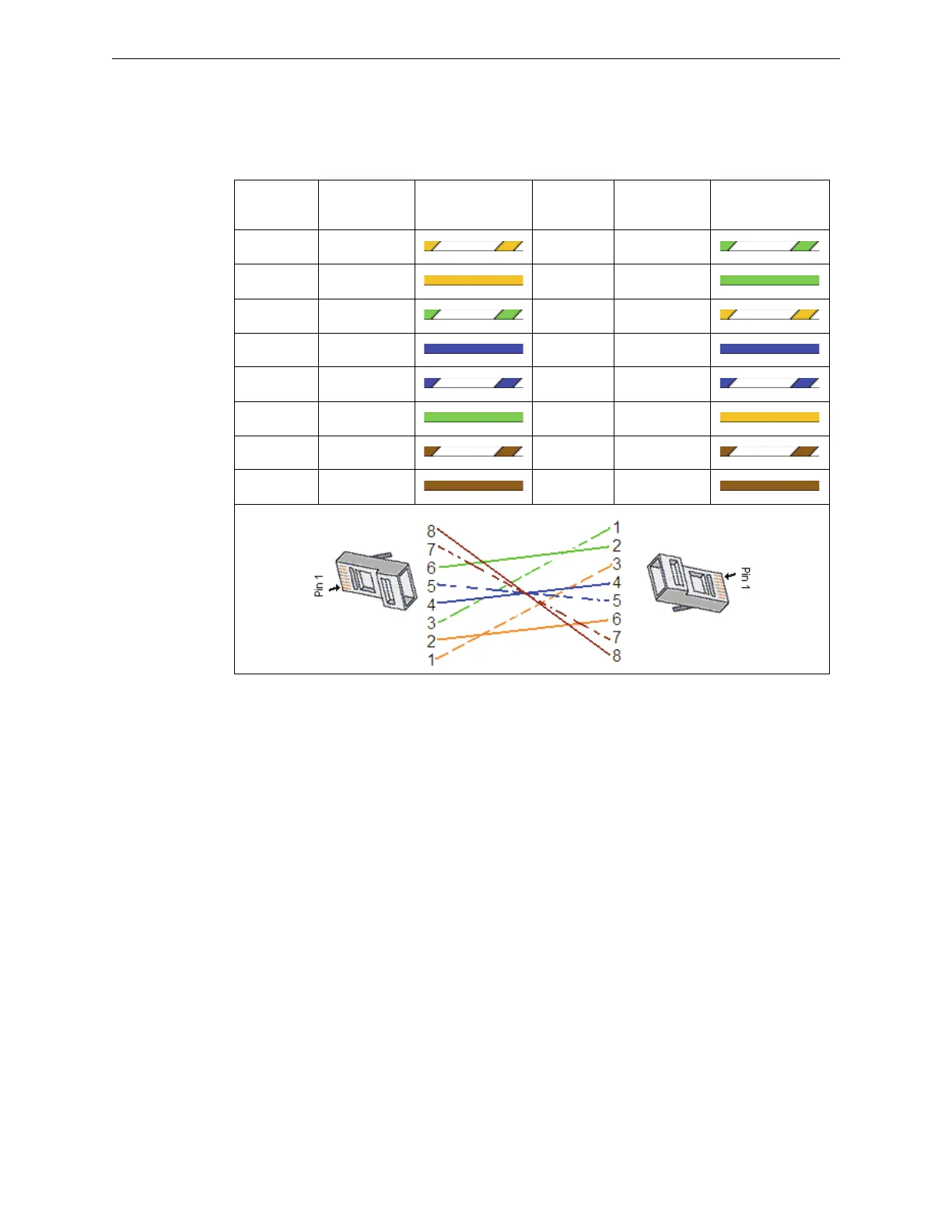

Table C.1 Cross Over Cable (568B)
RJ45 Pin #
(END 1)
Wire Color Diagram End #1
RJ45 Pin #
(END 2)
Wire Color Diagram End #2
1 White/Orange 1 White/Green
2 Orange 2 Green
3 White/Green 3 White/Orange
4Blue 4Blue
5 White/Blue 5 White/Blue
6 Green 6 Orange
7 White/Brown 7 White/Brown
8Brown 8Brown
