ATTENTION
DISASSEMBLING THE MAIN BODY

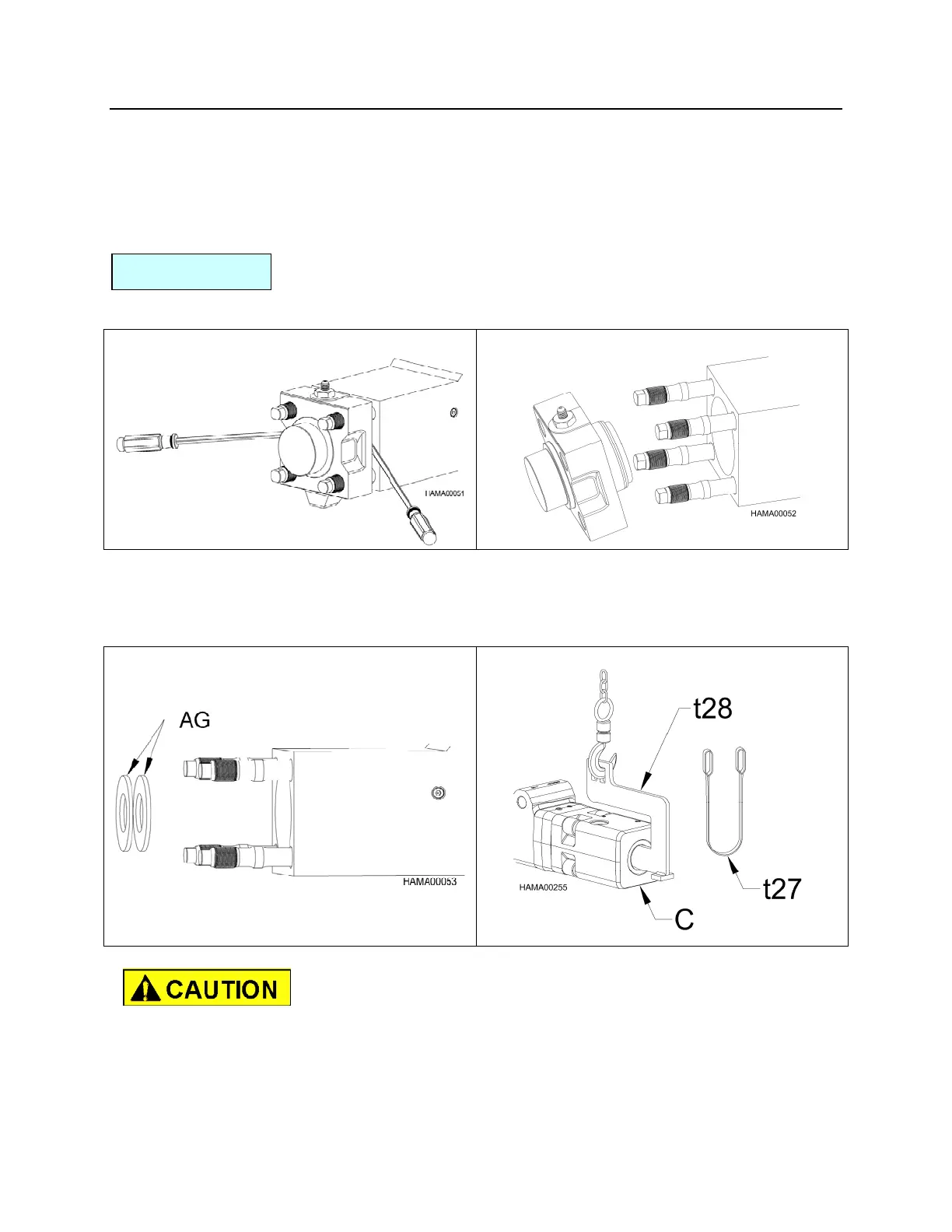

4. Remove the gas head and spacer springs.
a. Pry off the gas head using screwdrivers or pry bars as levers. Care should be
exercised so as not to apply undue force. Remove the gas head from the tie
rods.
When the gas head is removed, hydraulic oil will
flow out of the body bore. Therefore, have oil
pans ready.
b. Remove the spring washers
(AG).
5. Sling (t27) or hook (t28) the tool
holder (C).
The tool holder must be kept level and square
to the main body.
