DISASSEMBLING THE MAIN BODY

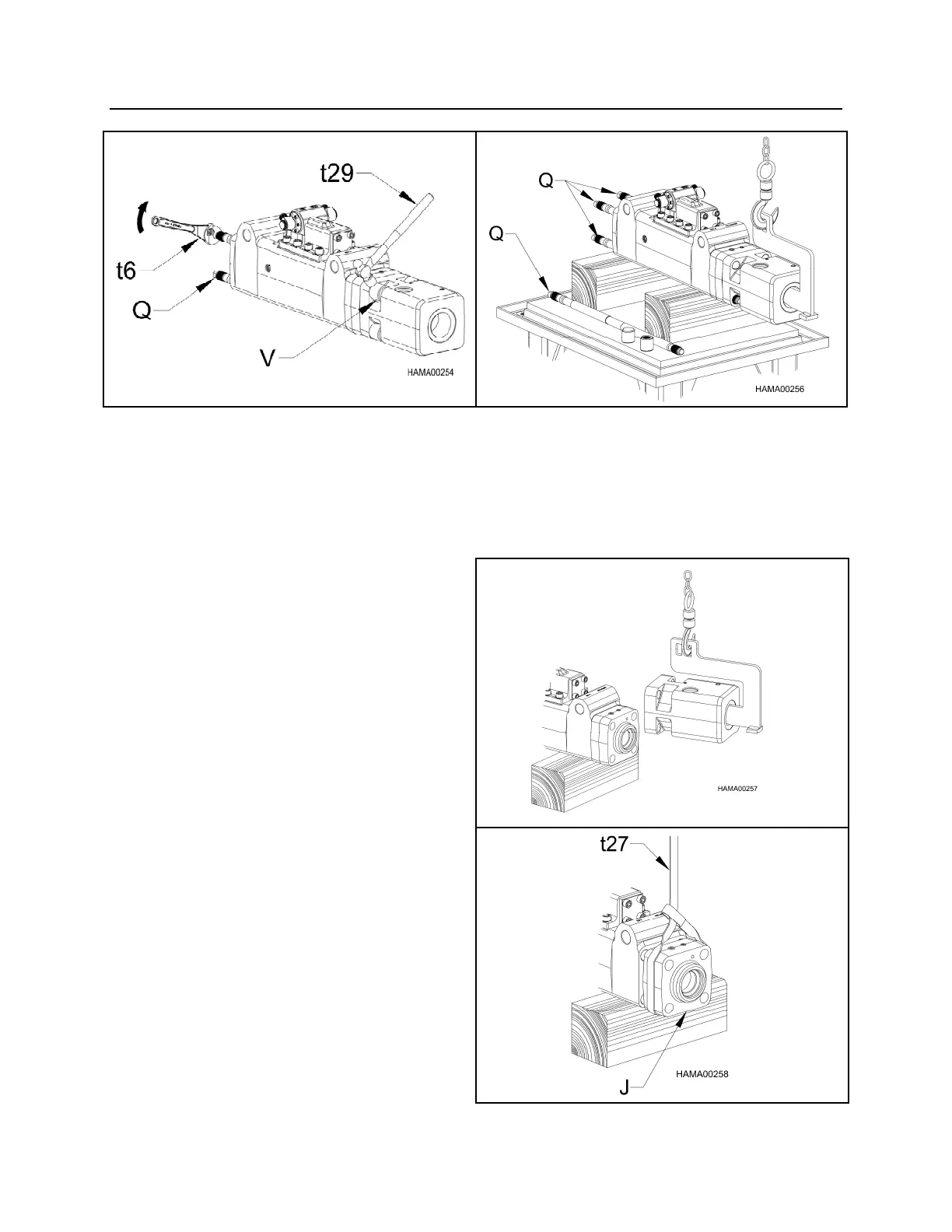

Loosen the tie rods (Q) with a wrench (t6)
by hand. If a tie rod (Q) should fail to turn,
rap the bottom nut (V) with a hammer
(t29). If the tie rods (Q) are still tight, re-
position the tool holder to remove the bind
on the tie rods (Q). Loosen all four of the
tie rods (Q) before removing any of them.
6. Pull out the tie rods (Q).
7. Hoist the tool holder by a crane to
remove it from the main body.
8. Remove the spacer section (J).
Hoist the spacer section (J) by a
sling (t27) to remove it from the main
body.
