- 56 -
MAIN BODY BORE REPAIR
REPAIR OF BODY BORE BY GRINDING AND POLISHING
After polishing, remove all o-rings from the “B” sleeve (longest sleeve). Apply a light
coat of NPK Assembly Lubricant, part no. H010-5010.

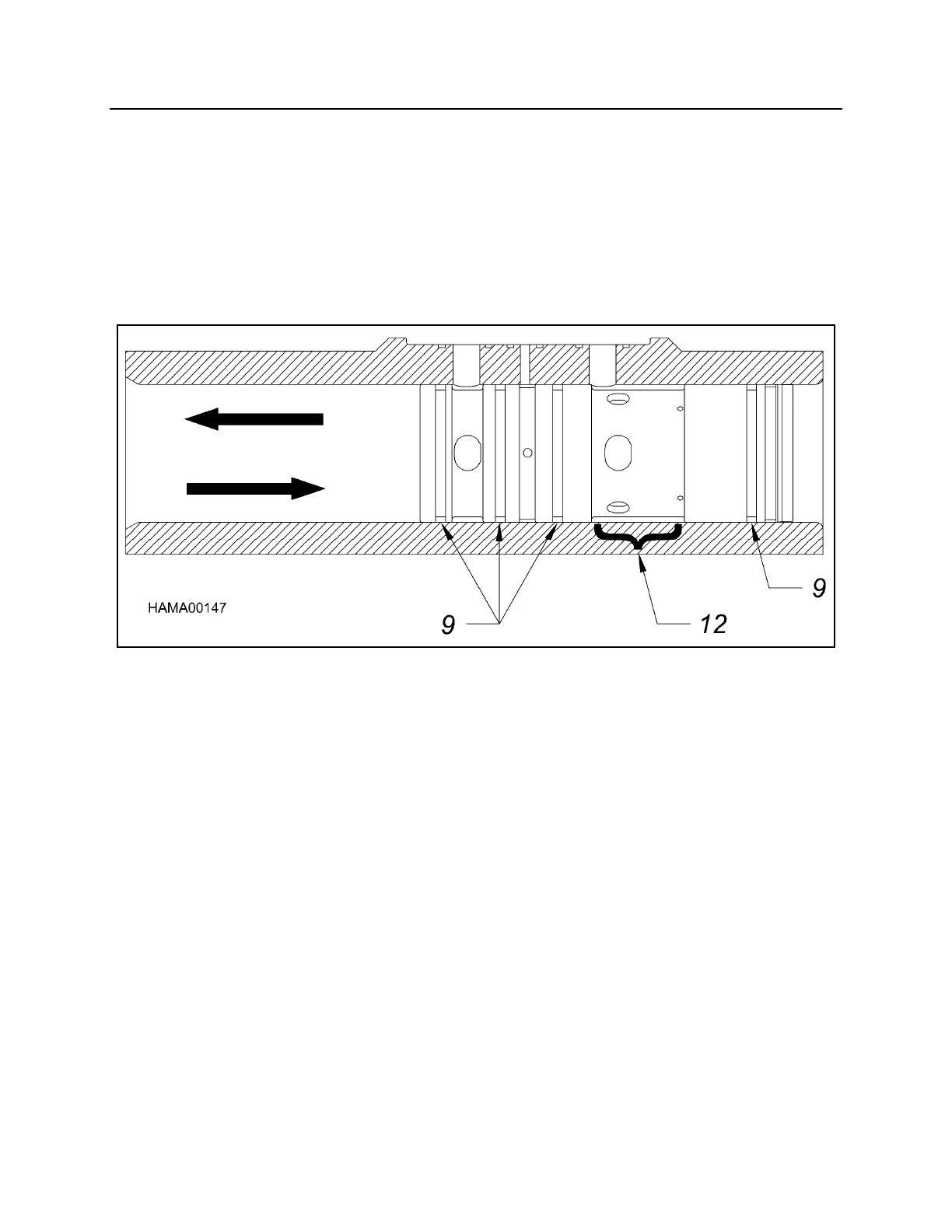

Pass the sleeve in and out through the bore to check for any high spots, which
require additional polishing.
9. REPAIRED O-RING – CONTACT SURFACE
12. GROUND AREA – NO O-RINGS HERE
