Figure 5-1

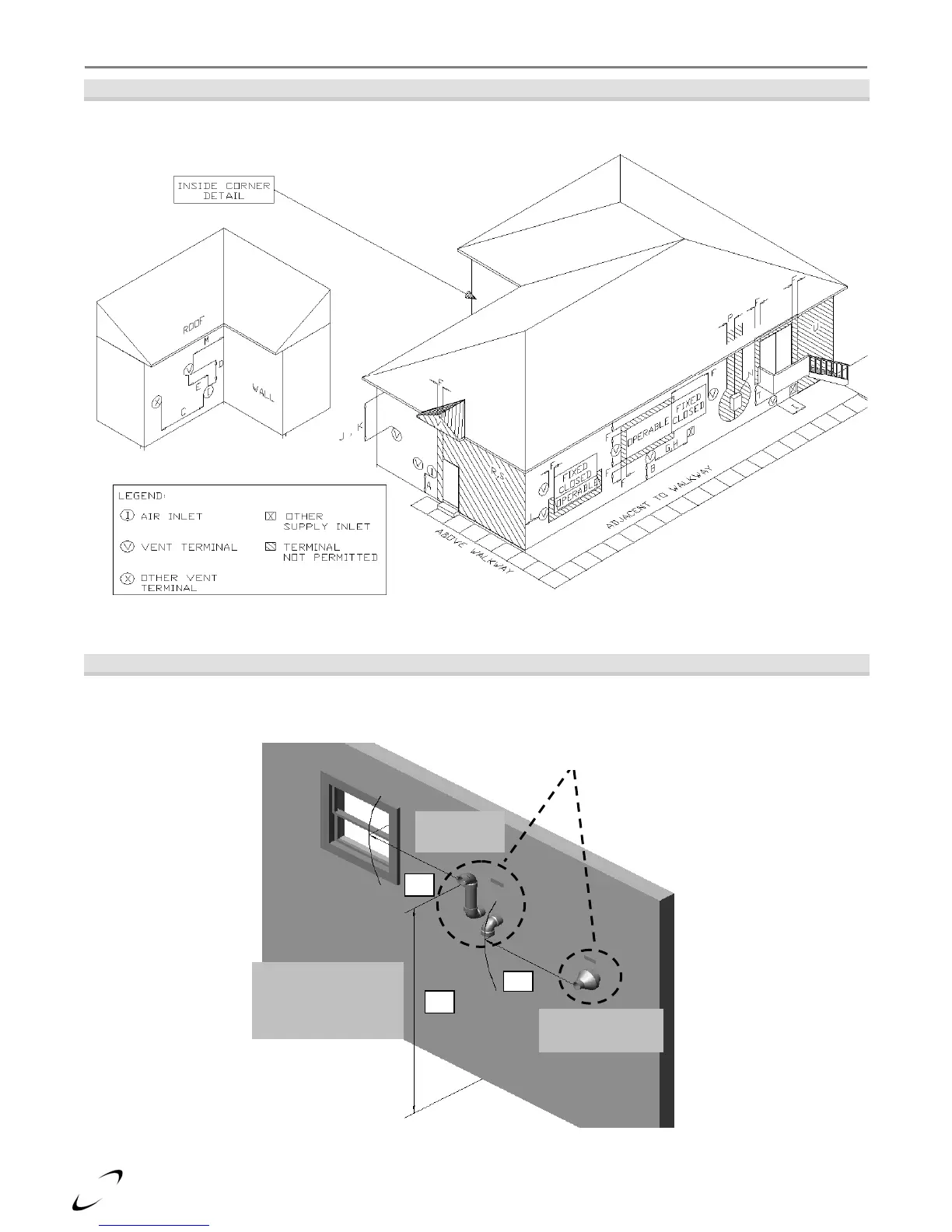

Termination Clearances Quick Reference Diagram
Illustrations of Termination Clearances
Figure 5-2
Side Wall Termination - Clearances Above Grade
G – Letter represents a specific Termination Position. Refer to Table 5-1 for corresponding termination clearances.
Concentric Vent
Termination
Q
Two-Pipe
Termination
F
Clearance “Q”
Adjacent to Public
Walkway or Driveway
Minimum 7ft [2.13 m]
G
Clearances “F” and “G”
Canada – Minimum 3 ft [915 mm]
The US – Minimum 1 ft [305 mm]
