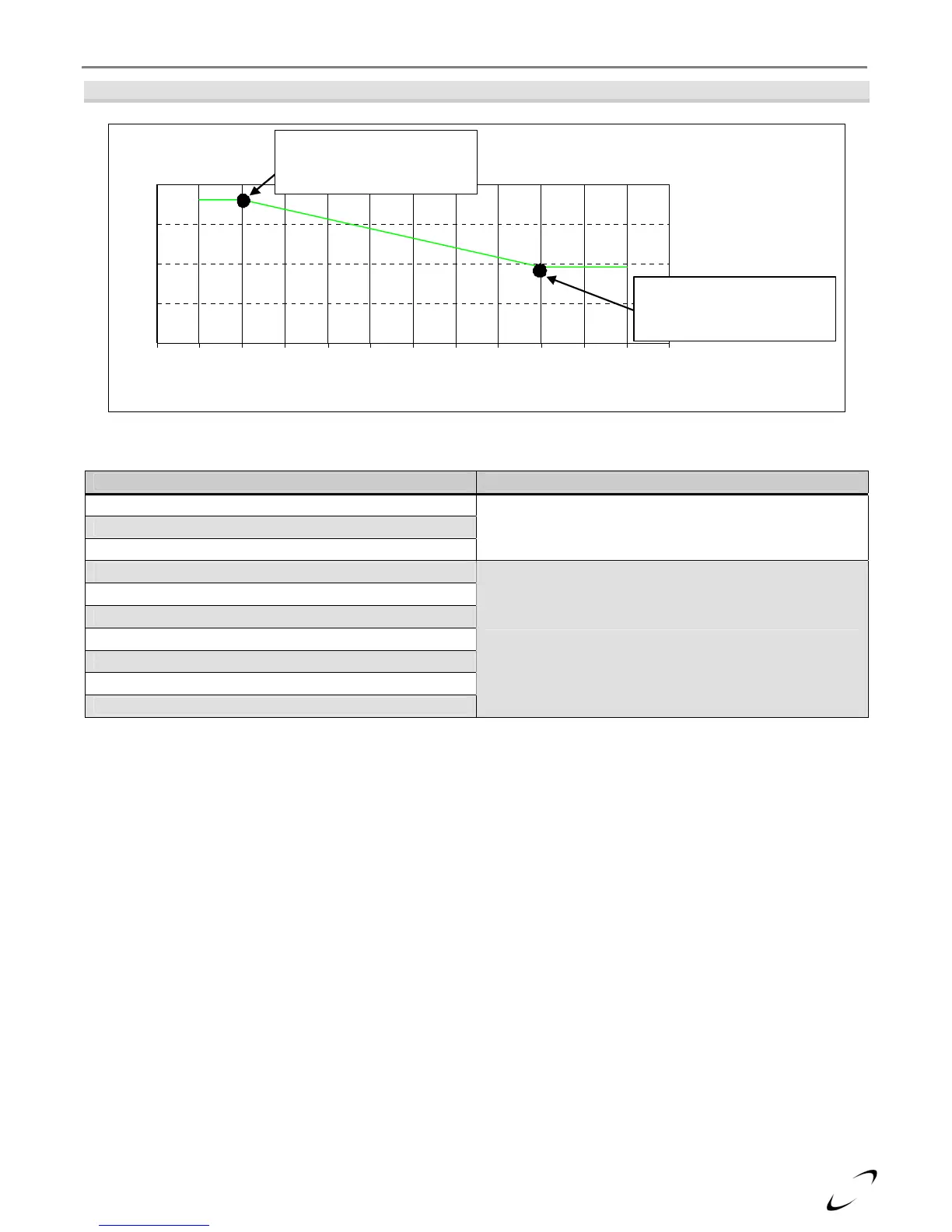

Figure 13-3 Example Outdoor Reset Curve
Example Outdoor Reset Curve
0
50
100
150
200
-20-100 102030405060708090100
Outdoor Temperature °F
CH Setpoint °F
Point defined by:
LOD = 0°F
CH Setpoint = 180°F
Point defined by:
HOD = 70°F
LBT = 95°F
Table 13-5 Setup Mode Screen Timeouts
Screen Displayed Length of Inactivity that Causes Timeout
Temperature units
Outdoor reset on/off
Outdoor reset temperatures
1 minute
Rmt Adr (see Note 1)
LL (see Note 1)
HS (see Note 1)
bL (see Note 1)
Sd (see Note 1)
ASC
BAC/rES (see Note 2)
5 minutes
Note 1: Not applicable to the Ts80 model.
Note 2: Requires optional PIM memory module.
