Near Boiler Piping (Central Heating – CH)

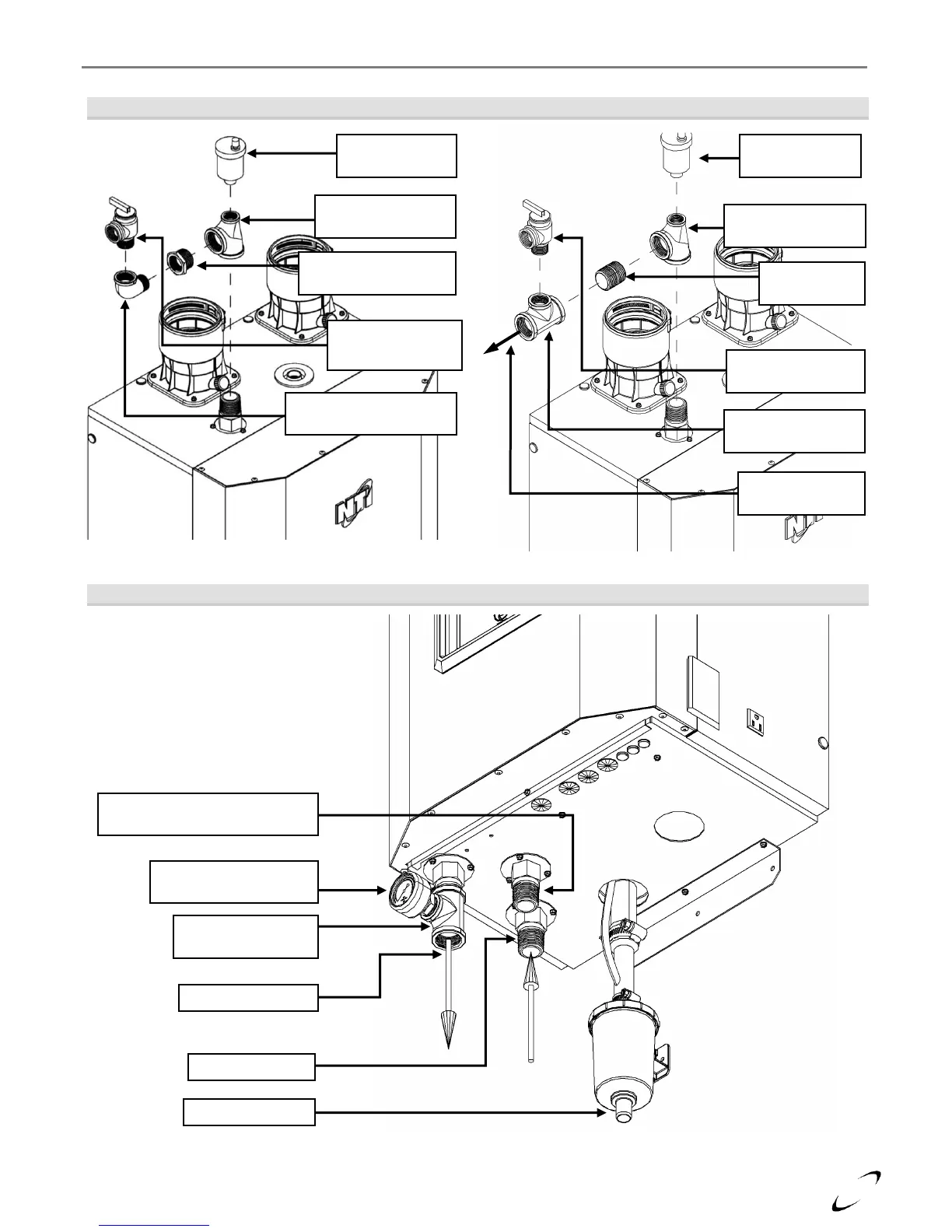

Figure 10-2(a) VM110 Top – Option A
Figure 10-2(b) VM110 Top – Option B
Figure 10-2(c) VM110 Bottom
Central Heat Outlet
Inlet from Indirect Water Heater
(and location for boiler drain)
Condensate Drain
60 PSI Pressure Gauge
(factory supplied)
Tee Fitting - Typical
(field supplied)
Central Heat Inlet
1x3/4” Brass Bushing
(factory supplied)
30 PSI Relief Valve
(factory supplied)
Auto Air Vent
(factory supplied)
3/4” Brass Street Elbow
(factory supplied)
1x1/2x1” Brass Tee
(factory supplied)
1” Nipple
(field supplied)
30 PSI Relief Valve
(factory supplied)
Auto Air Vent
(factory supplied)
1x1/2x1” Brass Tee
(factory supplied)
1x1x3/4” Brass Tee
(field supplied)
Outlet to Indirect
Water Heater
