NTI VM110 - Vmax Installation Kit Box; Parts List: Vmax Series

Vmax I&O Manual │ Parts List
77

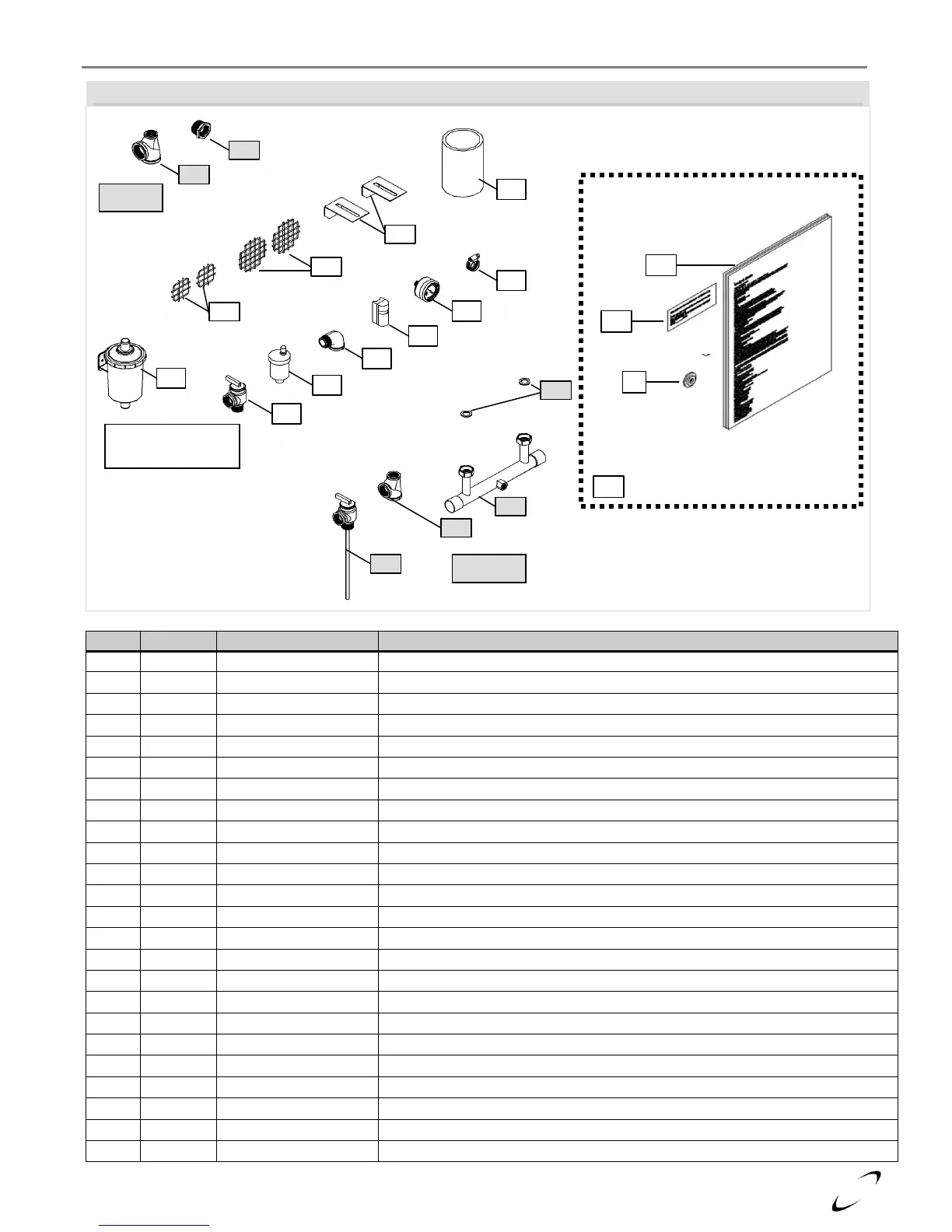

Figure 19-1(e) Vmax Installation Kit Box
Table 19-1 Parts List: Vmax Series
Item
Part #
Model
Description
1
84541
VM110, VM110P
Premix Burner
2
84542
VM110, VM110P
Premix Burner Gasket
4
84441
VM110, VM110P
Blower Gasket
5
85206
VM110, VM110P
Blower/Venturi Assembly
8
84795
VM110, VM110P
LP Orifice, 5.05
9
84713
VM110, VM110P
Gas Valve
10
83870
VM110, VM110P
Ignition Electrode, Dual (c/w gasket)
14
85108
VM110, VM110P
Gas Valve Adapter ½” NPT (c/w screws & O-ring)
15
84419
VM110, VM110P
Outlet Sensor (Dual)
16
84733
VM110P
O-ring, 2.76 x 17.72mm
17
84463
VM110, VM110P
Pipe Coupling, groove joint, 1”
18
85096
VM110P
Supply Pipe, VM110P
18
85118
VM110
Supply Pipe, VM110
19
84474
VM110, VM110P
Auto Air Vent, ½” NPT
20
83608
VM110, VM110P
Flue Sensor, Dual
21
85095
VM110P
Return Pipe, VM110P
21
85117
VM110
Return Pipe, VM110
22
85122
VM110P
Indirect Fired Water Heater (60L)
23
84423
VM110, VM110P
Receptacle, 120VAC
24
84745
VM110, VM110P
Inlet/Pressure Sensor
25
84546
VM110, VM110P
Sight Glass Assembly
26
84453
VM110, VM110P
Heat Exchanger ASME
28
85208
VM110, VM110P
Flue Sensor Grommet
29
84915
VM110P
Diverter Valve Stepper Motor
Each Vmax comes with an LP (Propane)
Conversion Kit, containing the
required LP orifice, decal and
converions instructions.
113
112
8
Natural Gas to LP Conversion Kit
119
30
109
19
71
31
38
111
Common
(VM110 & VM110P)
VM110
VM110P
115
81
114
116
81
69
50
110
83
108
