NTI VM110 - VM110 Plumbing Schematic - Single CH Pump

Vmax I&O Manual │Field Wiring
41

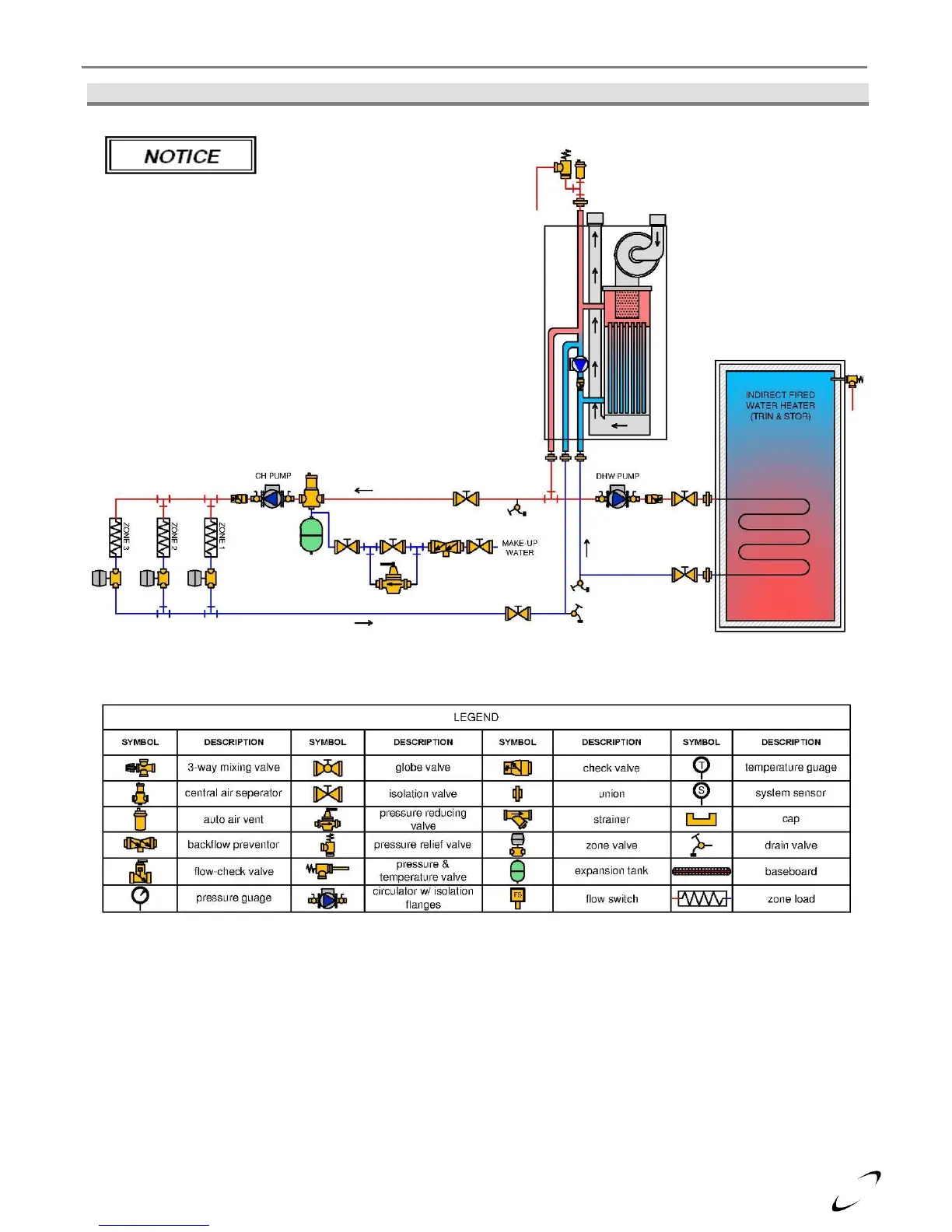

Figure 10-5 VM110 Plumbing Schematic – Single CH Pump
w/ Indirect Fired Water Heater (Option A)
Figure illustrates the basic
plumbing requirements for
a VM110 boiler installation with a single Central
Heating circulator, and an Indirect Fired Water Heater
installed using Option A. Refer to Figures 10-2(a)
and 10-2(c) for boiler fitting identification.
