Field Wiring │ Vmax I&O Manual
42

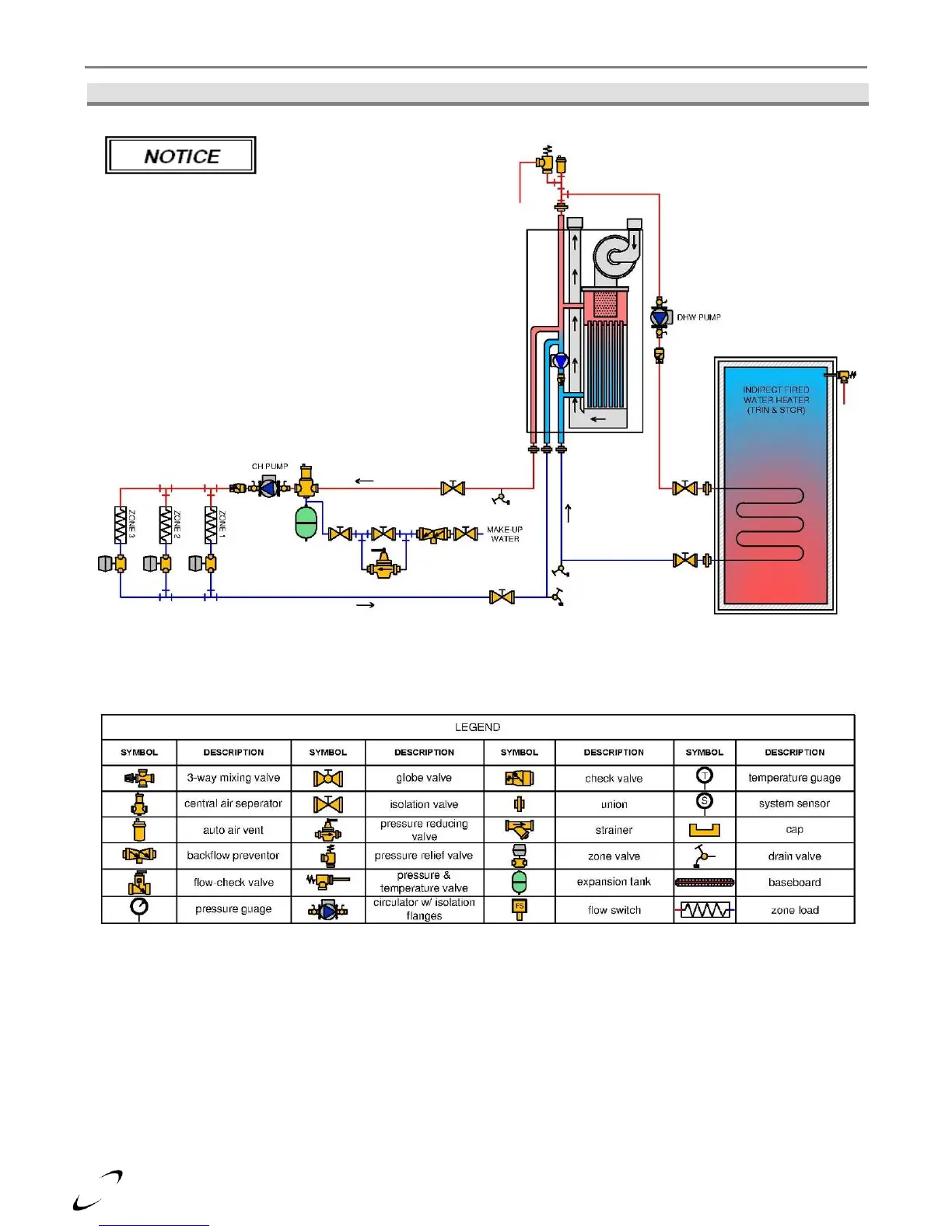

Figure 10-6 VM110 Plumbing Schematic – Single CH Pump
w/ Indirect Fired Water Heater (Option B)
Figure illustrates the basic
plumbing requirements for
a VM110 boiler installation with a single Central
Heating circulator, and an Indirect Fired Water Heater
installed using Option B. Refer to Figures 10-2(b)
and 10-2(c) for boiler fitting identification.
