SERVICE AND REPLACEMENT GUIDE SUB–123 OWNER'S MANUAL
C. Position the replacement Door Latch on the latch bracket. Align the holes in the adjustment plate
with the holes in the Door Latch body and secure the adjustment plate and Door Latch to the latch
bracket.
D. Adjust the replacement latch to obtain proper door sealing and closure (see:
DOOR LATCH, How
To Adjust
). Tighten the mounting screws securely.
E. Install the acorn nuts on the ends of the top and bottom Door Latch screws. Turn the nuts on all the
way until they just contact the back side of the latch bracket, then loosen them by 1½ to 2 full
turns. Install the Latch Cover and tighten the acorn nuts lightly to hold the Latch Cover in place.
DOOR LATCH CATCH PLATE, How To Replace:
(refer to
Fig. #19
on page 41)
A. Mark the location of the Catch Plate on the face of the unit. Remove the two Catch Plate mounting
screws and remove the Catch Plate.
B. Place the replacement Catch Plate on the face of the unit in the same position as the original.
C. Fasten the Catch Plate in place with the two mounting screws. Tighten them securely.
HINGES, How To Adjust:
Hinges on Flush-Mount Doors are preset at the NU-VU
®
factory and should not need adjustment.
However, if you experience any problems with Door operation please call the NU-VU
®
Service
Department for assistance at (800) 338-9886.
HINGES, How To Replace:
A. Open the Oven Door [41] or Proofer Door [42] until it is
straight out from the face of the unit. Lift the Door straight
up and off of the Door Hinge [43] pins.
B. Remove the bottom half of each Hinge (with the pivot pin)
from the unit. Replace with the identical part from the new
Hinge. Make sure the pivot pin points up and that the
screws are fully seated and tight.
C. Remove the top half of each Hinge from the Door. Replace
with the identical part from the new Hinge. Make sure that
the screws are fully seated and tight.
D. Make sure that any washers provided with each
replacement Hinge are installed on the pivot pin between
the Hinge halves. Position the Door so that the sleeve of the top half of each Hinge is centered
over the end of the pivot pin on the bottom half of each Hinge. Lower the Door onto the pivot
pins. Work the Door back and forth to fully seat the Hinges.

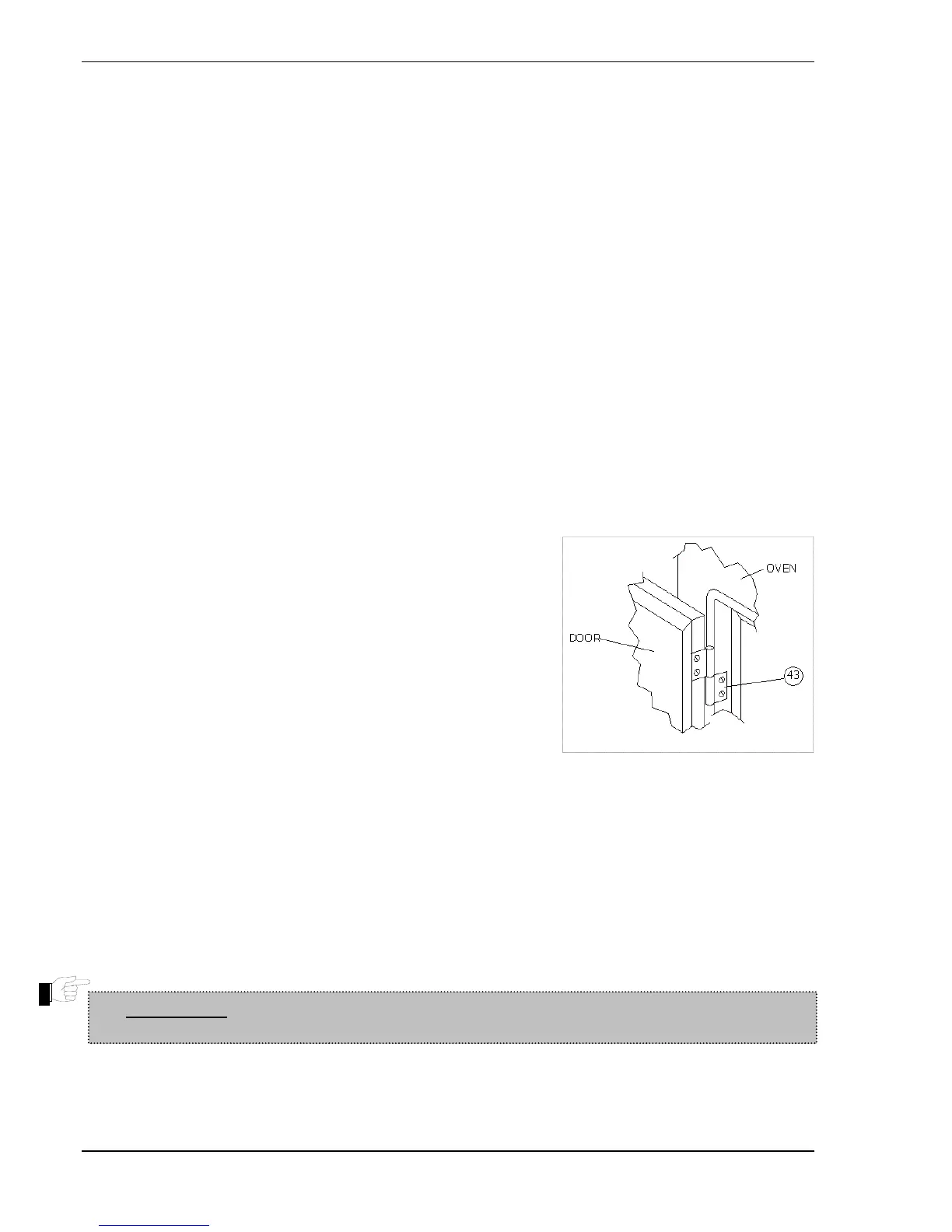

Fi
g
. #20
–
Door Hin
g
e Assembl
y
E. Test the Door for proper closing and sealing (refer to the
DOOR TEST PROCEDURE
).
DOOR GASKET, How To Replace:
Follow these instructions to correctly and easily replace your Door Gasket with minimal problems. If
you have any problems or questions please call the NU-VU
®
Service Department at (800) 338-9886
Monday through Friday from 7:00 a.m. until 5:30 p.m. for assistance.
IMPORTANT: DO NOT DISASSEMBLE THE DOOR FRAME WHEN REPAIRING OR
REPLACING THE DOOR GASKET!
NU-VU
®
FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035
