Numatic TTB 1840 - Clean Water Tank Removal; Waste Water Tank Replacement

36

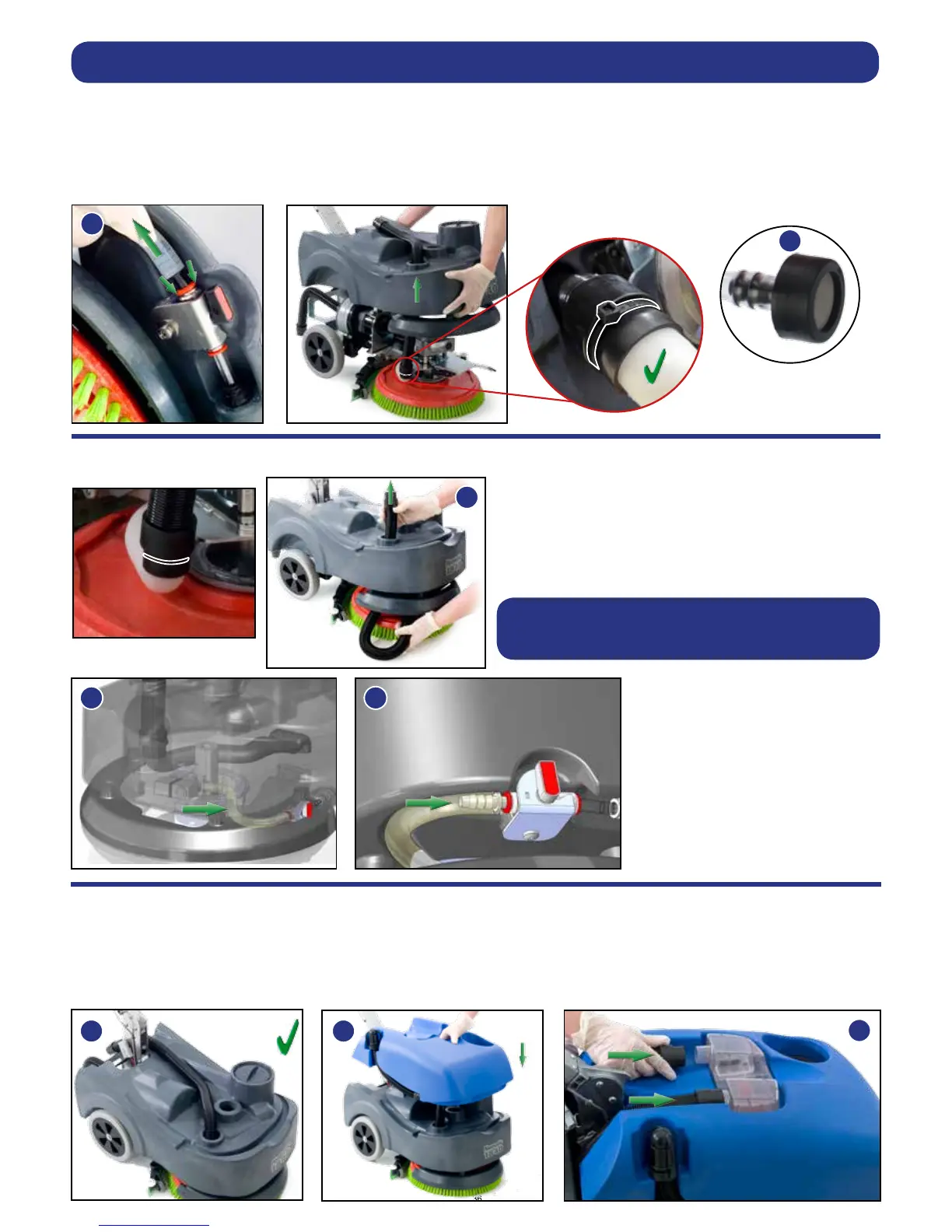

Once the clean water tank has been emptied, the tank can be removed.
Firstly detach the water feed pipe from the tap, this can be done by pushing the red tap clip in whilst pulling off the pipe. (Fig.35).
Removing the Clean Water Tank
Inside the clean water tank is a lter, located below the clean water inlet (Fig.36)
Clean all hoses and lters by ushing with clean water.
Replacing the Clean Water Tank
Fit the suction hose to the oor-tool and pass through the
hole in the clean water tank (Fig.37).
Note: If the hose is removed for any reason,
the cable-tie needs to be replaced.
Place the tank onto the machine base.
The water feed pipe simply
pushes onto the tap (Fig.38a).
NOTE:
Ensure the water feed pipe locates in the channel
moulded into the base of the tank (Fig.38).
Replacing the Waste Water Tank
Place the suction hose as shown (Fig.39).
Place the tank onto the machine (Fig.39a).
Ret the separator and reconnect the vacuum and suction hose (Fig.40).
Regular Maintenance
35
36
37
38
38a
39
39a
40
