Numatic TTB 1840 - Waste-Water Tank

45
PROBLEM CAUSE SOLUTION
Machine will not operate Missing or blown fuses
Battery not connected
Low battery charge
Fit or replace fuse (page 40)
Connect battery (page 20)
Charge batteries (page 42)
Vacuum will not operate Vacuum not turned on Turn on vacuum (page 32)
Poor water pick-up Waste-water tank full
Clogged / blocked vacuum hose
Loose hose connections
Debris basket lter clogged / blocked
Separator lter clogged / blocked
Poor separator seal
Damaged separator seal
Damaged / split vacuum hose
Damaged oor-tool blades
Low battery charge
Empty waste-water tank (page 34)
Remove and clean (page 36)
Push tight connections (page 36)
Remove and clean (page 36)
Remove and clean (Page 36)
Clean and ret (page 36)
Renew (contact service dept)
Renew (contact service dept)
Renew (contact service dept)
Recharge batteries (page 42)
No brush / scrub function No brushes tted
Brush overloaded
Check and t (page 22)
Reset machine (page 32)
Little or no water ow Clean-water tank empty
Clean-water tank lter blocked / clogged
Incorrect water ow setting
Fill clean-water tank (page 24)
Remove and clean (36)
Adjust tap as desired (Page 26)
Machine just ‘stops’ while
operating
To much load on the brush system
Blown fuse in Battery pack
Reset the machine and decrease the brush load to
best suit the oor type (page 32)
Replace 40 Amp fuse (page 40)

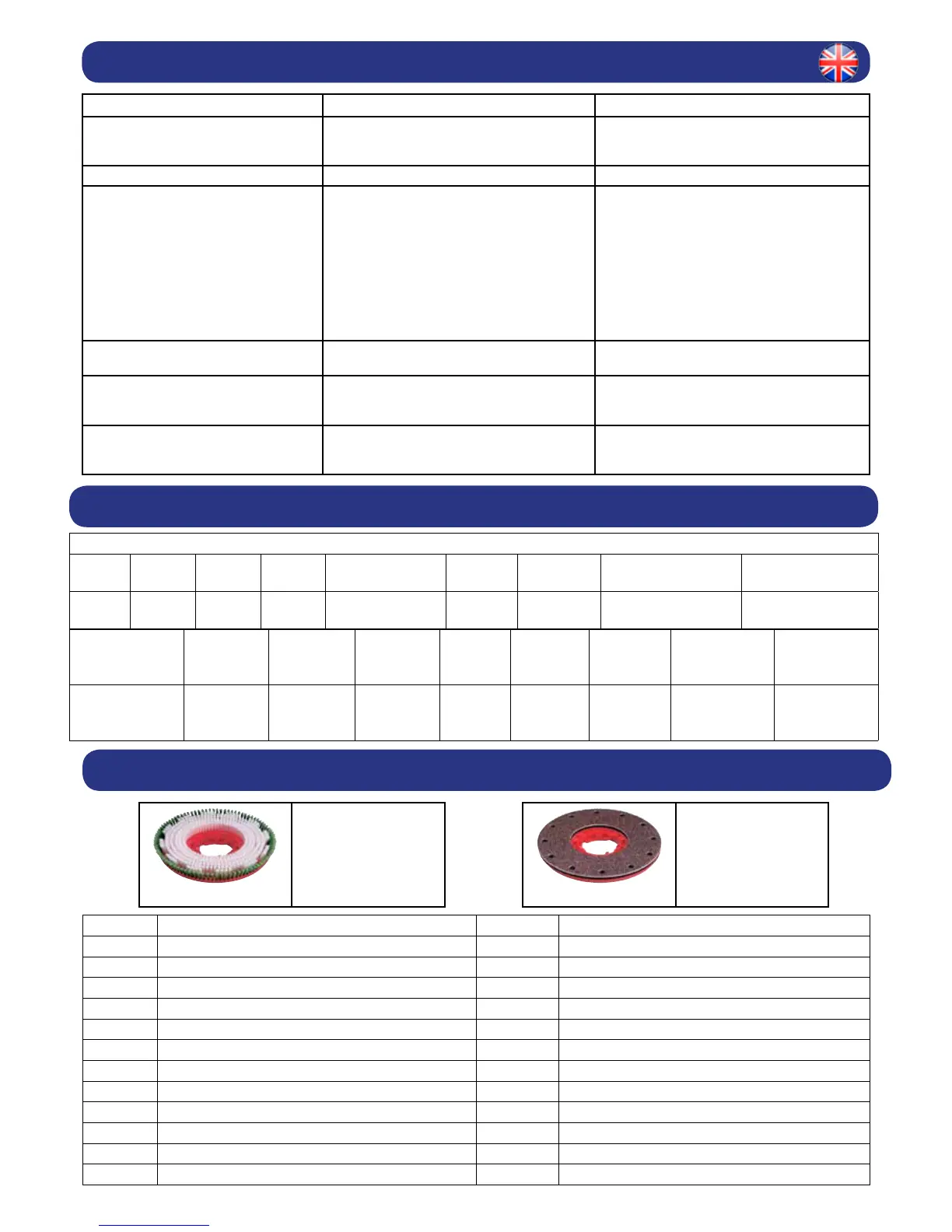

Model TTB-1840 Trouble-Shooting
TTB 1840
Brush
Motor
Vac
Motor
Brush
Sizes
Pad
sizes
Net Weight
(inc. battery pack)
Gross
Weight
Protection
Class
Run Time
per battery pack
Power
400W
24V
300W
400mm 360mm 52 Kg 70 Kg IPX4
Hi - 35 mins
Lo - 45 mins
2 x 12V (24V) 18Ahr
Area
Performance
per battery pack
Fluid Flow
(Tap at 45’)
Brush / Pad
Pressure
Speed
Recharge
time
Cleaning
Speed
Hand Arm
Vibration
Noise Size
1050m
2
0.35 LPM
(60 mins)
27.4/
26.2 g/cm
2
Hi-150 rpm
Lo-130rpm
6 hrs 0-4.2Kph 0.6 m/s
2
Hi-70.3 dB(A)
Lo-68.2 dB(A)
850mmx
1132mmx
520mm
Specications
606260 BATTERY PACK (BOXED) 606261 REPLACEMENT BLADE SET
606266 BATTERY & CHARGER PACK (UK) 303985 FILLER CAP ASSEMBLY
606267 BATTERY & CHARGER PACK (EURO) 237268 FILLER CAP LID
606268 BATTERY & CHARGER PACK (SWISS) 237232 SEPERATOR FILTER
606269 BATTERY & CHARGER PACK (CSA) 237260 GRIT BASKET
606270 BATTERY & CHARGER PACK (SOUTH AFRICA) 231054 SUCTION HOSE
606271 BATTERY & CHARGER PACK (AUS) 213055 VAC HOSE
606272 CHARGER PACK (UK) 208471 CONSTANT TENSION CLIP
606273 CHARGER PACK (EURO) 303997 DUMP-HOSE ASSEMBLY
606274 CHARGER PACK (SWISS) 208448 TANK DRAIN CAP
606275 CHARGER PACK (CSA) 208526 REPLACEMENT 40AMP FUSE
606276 CHARGER PACK (SOUTH AFRICA) 208455 M5 KNOB (BLACK)
606277 CHARGER PACK (AUS) 208537 CONSTANT TENSION CLIP (VAC HOSE)
606105
400mm
Scrubbing Brush
(MDA-21)
606400
360mm
Drive Board
Padloc
Spare Parts
