Nvidia Jetson Orin NX Series - Common USB Routing Guidelines; Figure 7-3. IL;NEXT Plot; Figure 7-4. TDR Plot; Table 7-7. Orin USB 2.0 Signal Connections

USB and PCIe
PRELIMINARY INFORMATION
Jetson Orin NX Series and Jetson Orin Nano Series DG-10931-001_v1.1 | 34
Parameter
Requirement
Units
Notes
General: See Chapter 17 for guidelines related to serpentine routing, routing over voids and noise coupling
The following figures show the USB 3.2. Interface signal routing requirements.

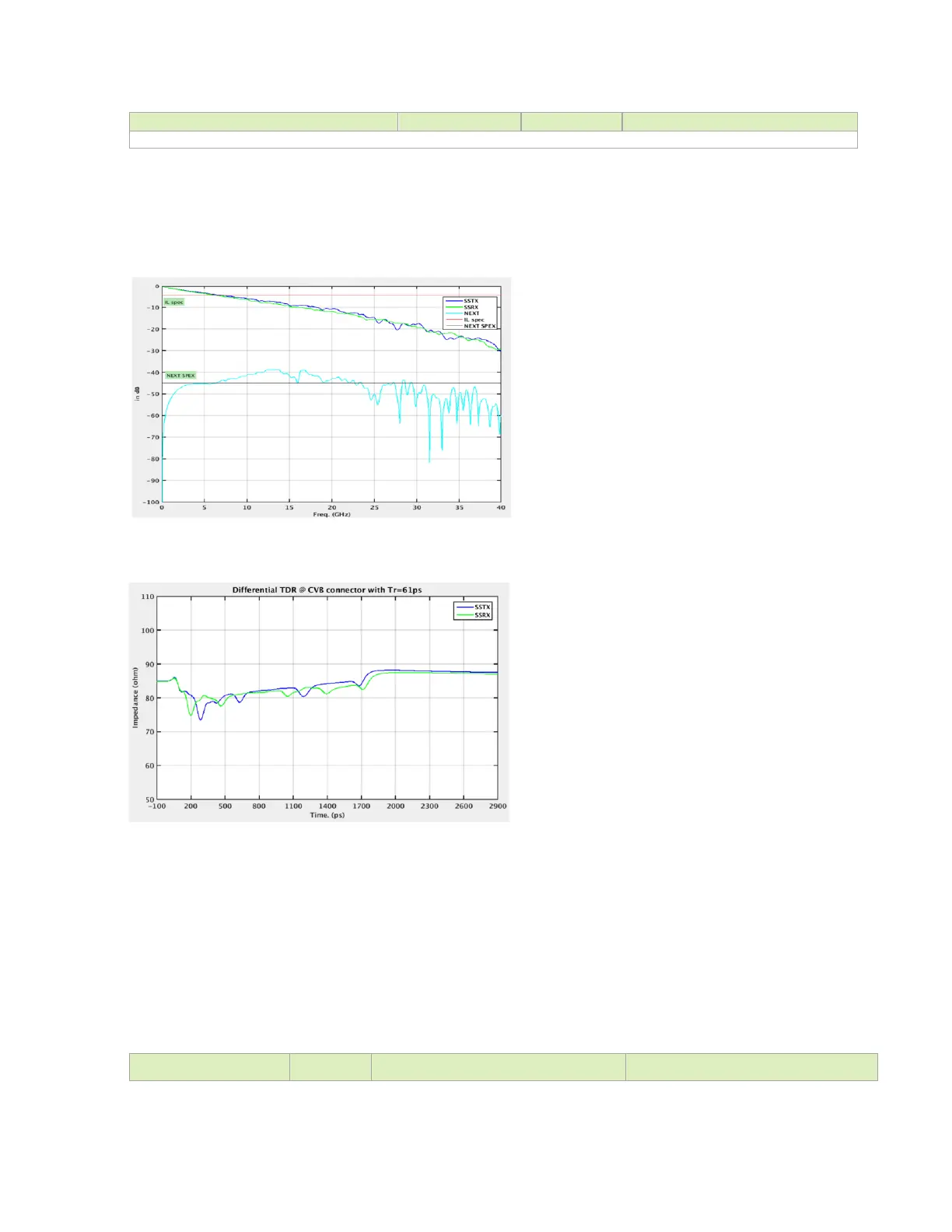

Figure 7-3. IL/NEXT Plot
Figure 7-4. TDR Plot
7.1.2.1 Common USB Routing Guidelines
If routing to USB device or USB connector includes a flex or 2nd PCB, the total routing
including all PCBs and flexes must be used for the max trace and skew calculations.
Keep critical USB related traces away from other signal traces or unrelated power traces and
areas or power supply components.
Table 7-7. Orin USB 2.0 Signal Connections
Module Ball Name
Type
Termination
Description
