USB and PCIe
PRELIMINARY INFORMATION
Jetson Orin NX Series and Jetson Orin Nano Series DG-10931-001_v1.1 | 40
Parameter
Requirement
Units
Notes
Keep critical PCIe traces such as PEX_TX/RX, etc. away from other signal traces or unrelated power traces and areas or power supply
components
Note:
1. This does not consider the loss of the end device or any additional connectors. These need to be accounted for and will reduce
the loss budget which will affect the max length or delay possible.
2. The max length and delay numbers are examples. These should be updated based on the actual PCB material loss and the loss
for the end device and any additional connections.

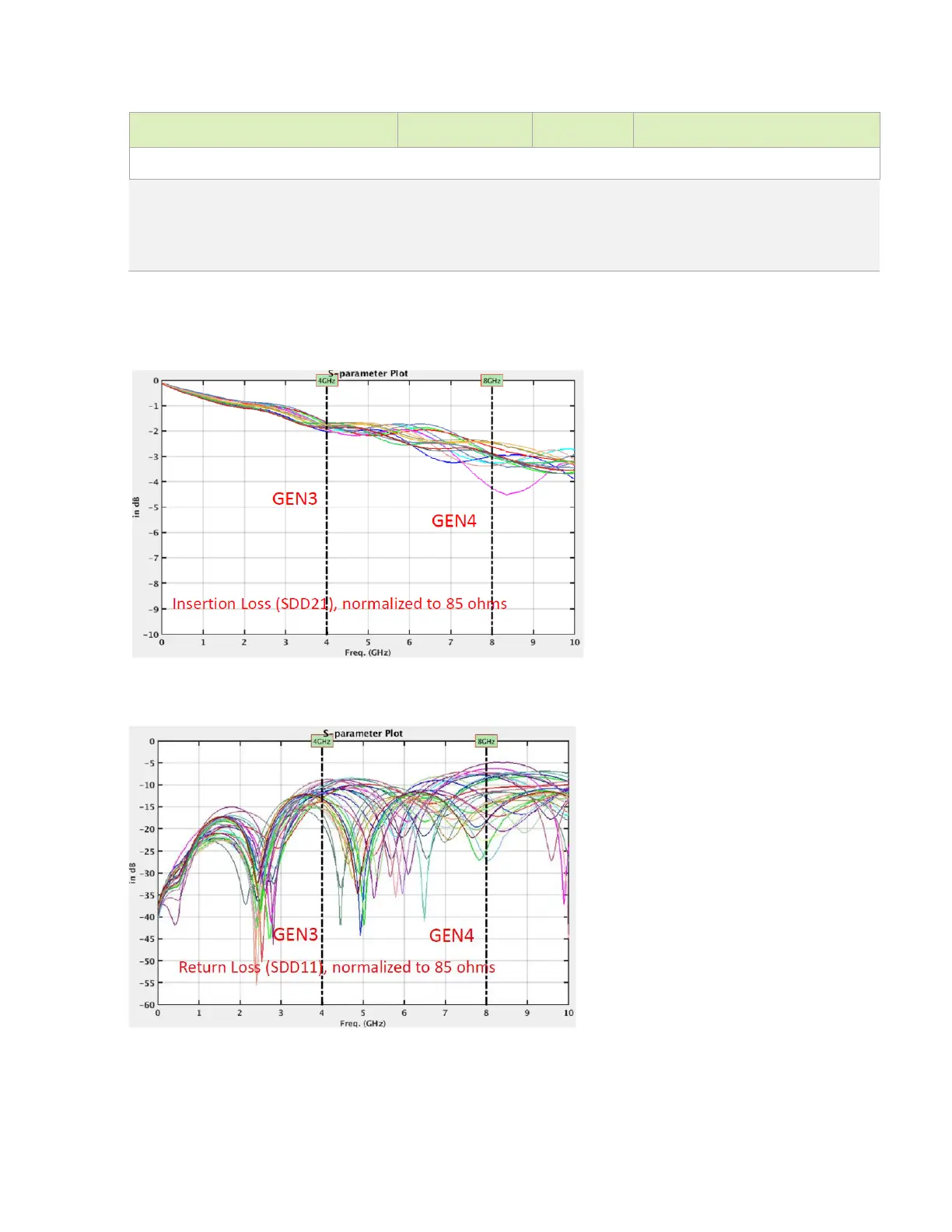

Figure 7-7. Insertion Loss S-Parameter Plot SDD21
Figure 7-8. Insertion Loss S-Parameter Plot SDD11

Nvidia Jetson Orin NX Series Specifications

General

Networking	Gigabit Ethernet
Module Size	69.6 mm x 45 mm
Operating System	Linux (JetPack SDK)
GPU	NVIDIA Ampere architecture with 1024 CUDA cores
CPU	8-core ARM Cortex-A78AE v8.2 64-bit CPU
Memory	16GB 128-bit LPDDR5
Storage	eMMC 5.1
AI Performance	100 TOPS (INT8)
Camera	Up to 6 cameras (24 via virtual channels) CSI camera
Power	15W to 25W
Video Encode	1x 4Kp60 | 2x 4Kp30 | 4x 1080p60
Connectivity	PCIe Gen4
Other I/O	GPIO, I2C, SPI, UART, CAN
