Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 9
Chapter 02 : NVIDIA Graphics-to-SDI
Operating NVIDIA SDI
The following sections provide an overview of SDI operation:
 “Understanding the Connections” on page 9
 “About the Software” on page 11
 “Recommended Operating Practices” on page 12
Understanding the Connections

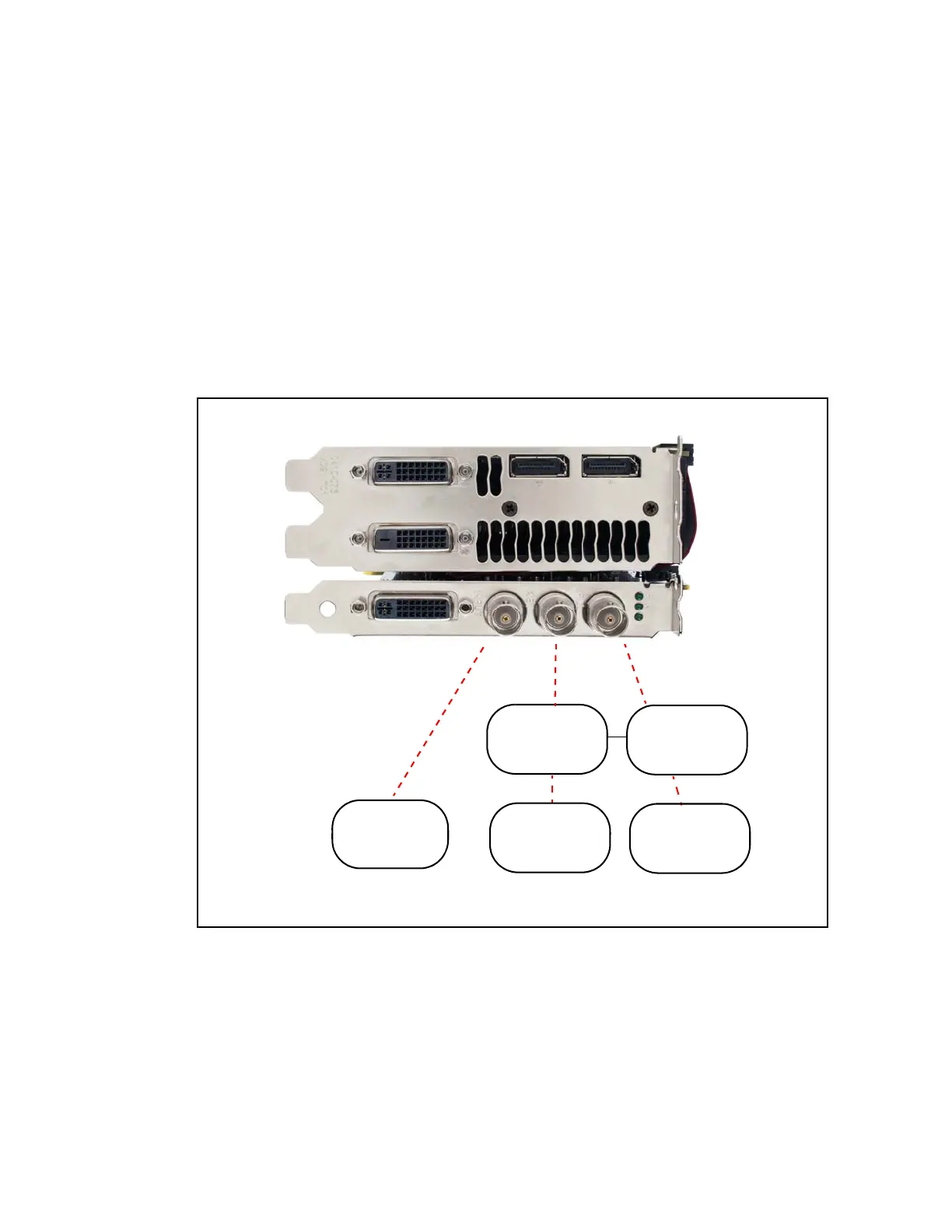

Figure 2.4 shows the available SDI and external sync connectors on the NVIDIA Quadro
SDI.
Figure 2.4 NVIDIA Quadro SDI Connectors
Key portion
of a dual-link
SDI output
Fill portion
of a dual-link
SDI output
- or -
SDI/Composite
Sync Signal
“FILL”“KEY”
“INPUT”
Fill portion
of a single-link
SDI output
Fill portion
of a single-link
SDI output

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
