Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 38
Chapter 04 : Linux—Using the Graphics to Video Out Control Panel
Step 3: Choose Data Formats

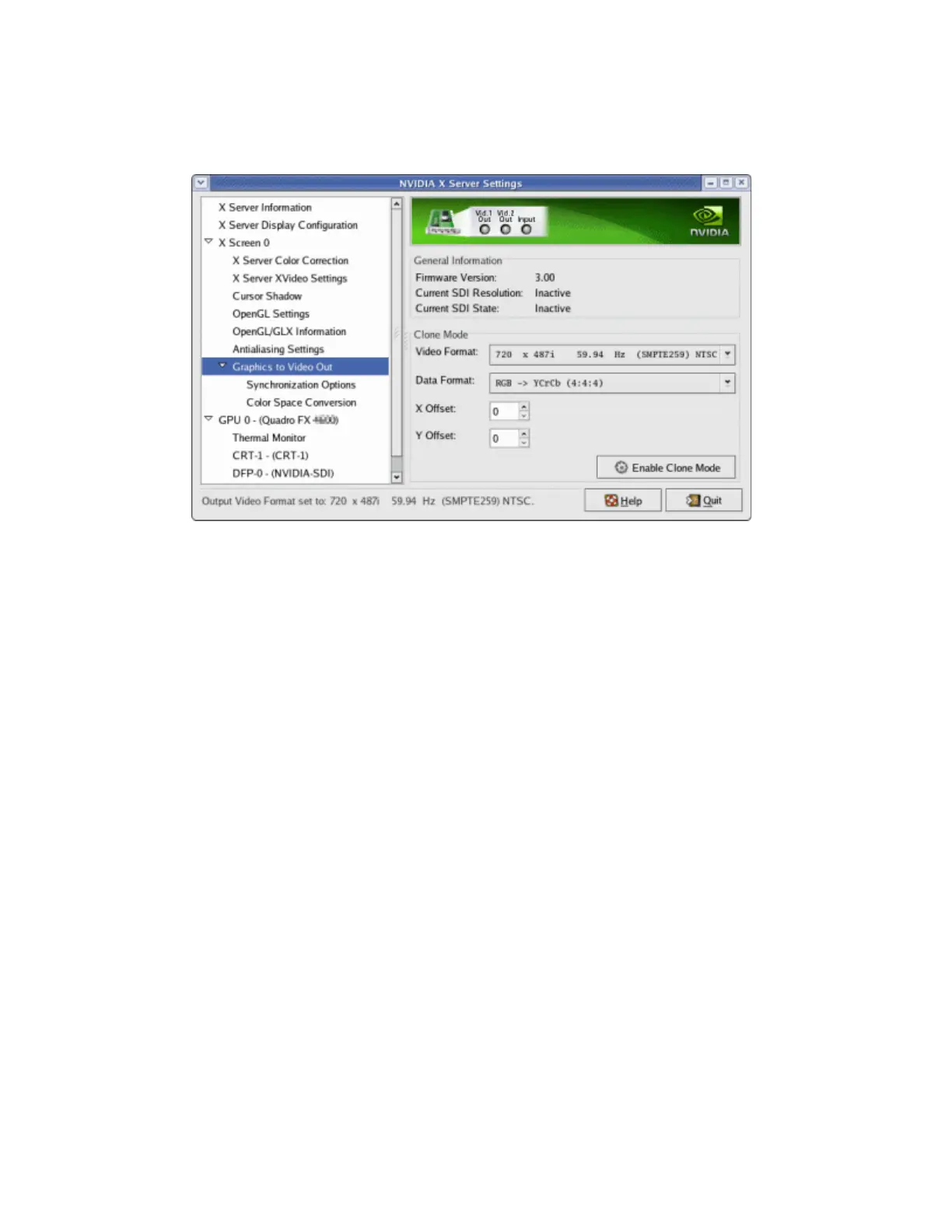

1 Click the Graphics to Video Out tree item from the side menu.
2 Specify the Data Format
Click the Output Data Format arrow and then click the color format you want to use.
Data Format controls the color model, data packing, and alpha or z components in
the outgoing video stream.
Note: The video format should already have been set up from the display configuration screen.
Advanced Setups
This section describes the following SDI controls and supplemental information:
 “Understanding the Status Indicators” on page 39
 “Adjusting the Desktop Area” on page 40
 “Customizing the Color Space Conversion” on page 40
 “Synchronizing the SDI Output to an External Source” on page 41

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
