Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 41
Chapter 04 : Linux—Using the Graphics to Video Out Control Panel

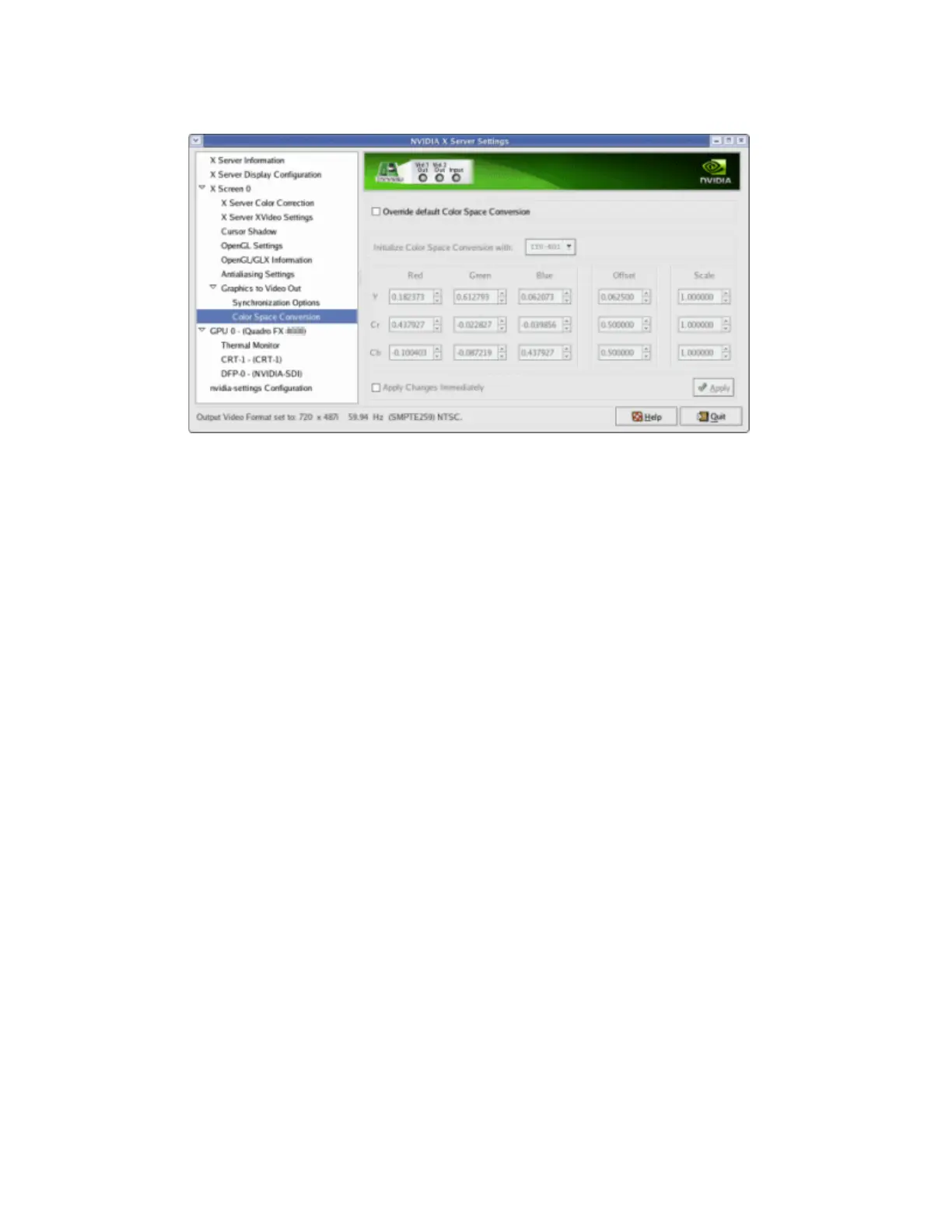

The Color Space Conversion page appears.
2 Check Override default Color Space Conversion.
3 Click the Initialize Color Space Conversion with list arrow and then click one of
the standards to use as a starting point: ITU-601, 709, 177, or Identity.
4 Either enter values directly in the text boxes or use the corresponding up and down
arrows to change any of the settings.
5 Click Apply to apply the settings.
To apply the settings as you change them, check Apply Changes Immediately.
Synchronizing the SDI Output to an External Source
You can synchronize the SDI output with other equipment in a broadcast or post
production environment.
Genlock Versus Frame Lock
The Graphics to SDI page provides two methods for synchronizing the SDI output to a
common sync source—Genlock and Frame lock.
Using Genlock
Genlock synchronizes the pixel scanning of the SDI output to an external
synchronization source.
When using genlock, the SDI refresh rate is determined by the sync source, so any
refresh rates that you may have chosen in the Output Video Format list do not apply.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
