Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 34
Chapter 04 : Linux—Using the Graphics to Video Out Control Panel
Click the Output Data Format arrow and then click the color format you want to use.
Data Format controls the color model, data packing, and alpha or z components in
the outgoing video stream.
Step 4: Begin SDI Output
Click Enable Clone Mode.
Basic SDI Setup with X-window or under Dualview Mode
Step 1: Configure the Display for Dualview or X-Screen
1 From the command line, enter “ nvidia-settings ”
The NVIDIA X Server Settings page appears.

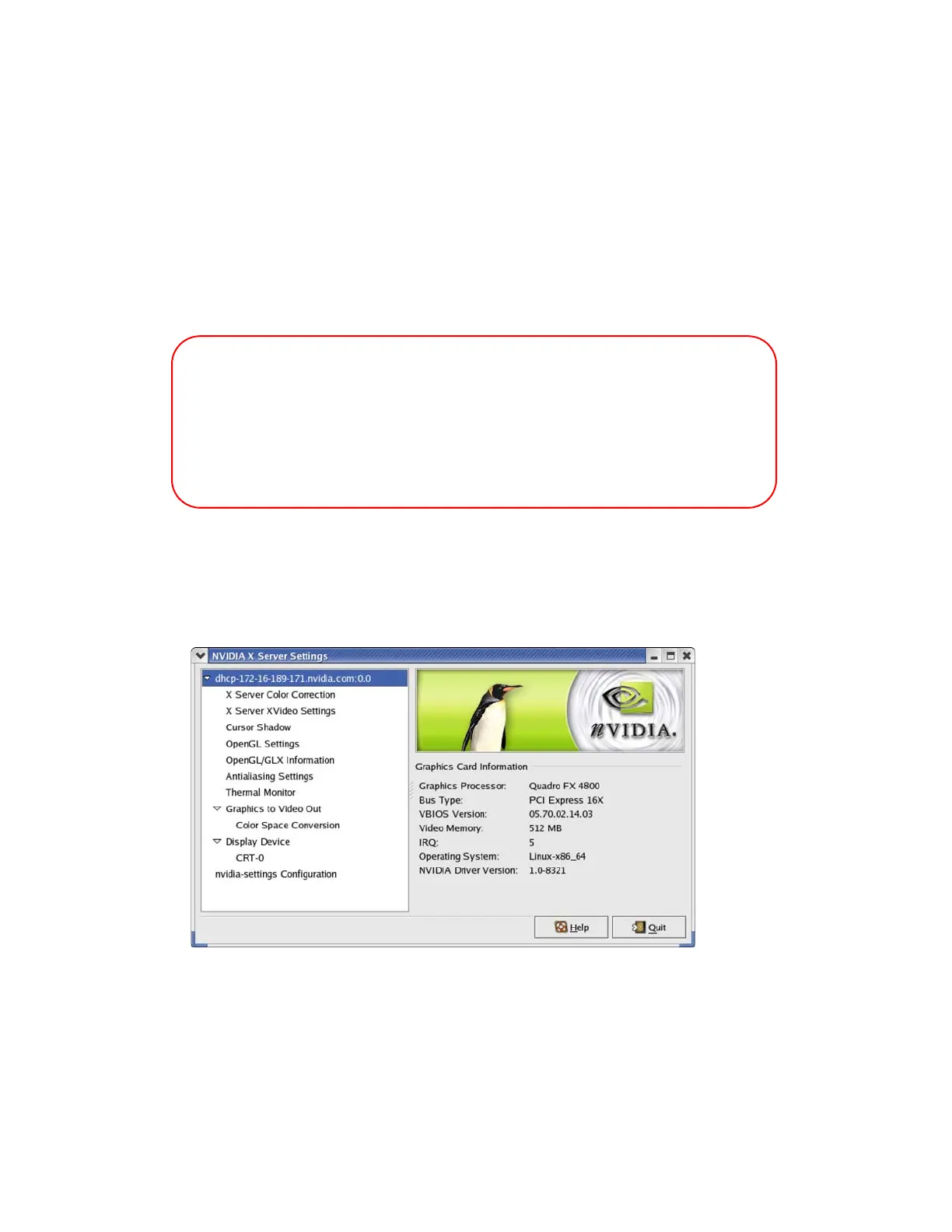

Figure 0.3 NVIDIA X Server Settings Page
To ensure proper operation, NVIDIA recommends the following -
 Set the desktop resolution to be the same or larger than the SDI output for better
image quality
 Stop background applications—such as virus scan, backup and archiving
applications—prior to starting SDI output and going on air.
 Close the control panel before going on air.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
