Nvidia Quadro K5000 - Setting up the Color Space Conversion

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 24
Chapter 03 : Windows–Using the Graphics to SDI Control Panel

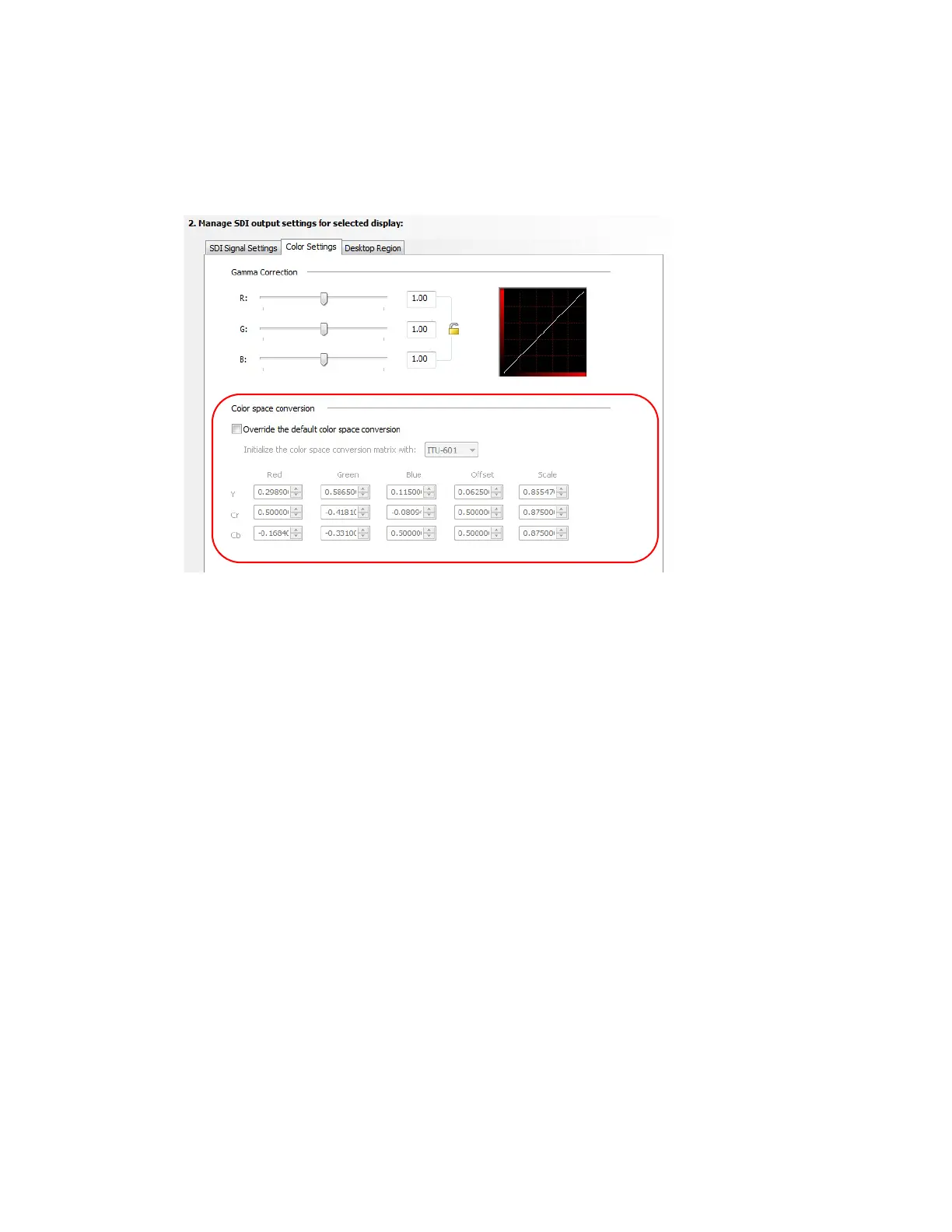

Setting Up the Color Space Conversion
1 From the NVIDIA Control Panel navigation tree pane, under Workstation, click
Manage SDI Output Settings and then select the Color Settings tab.
2 Check Override the default color space conversion.
3 Click the Initialize the color space conversion matrix with list arrow and then click one
of the pre-defined color-space standards to use as a starting point.
4 In each color-space text box, either enter values directly or use the corresponding up
and down arrows to change the values.
5 Click OK when finished.
