Nvidia Quadro K5000 User Manual

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 28
Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Allowing Application Control of the SDI Output
The SDI application programming interface allows OpenGL applications to have full and
exclusive control of the SDI output.
Refer to the Quadro SDI Output Programmer’s Guide for instructions on using the APIs.
When an application requests control of the SDI card it will disable any configured SDI
settings.
Once the application is running and the SDI output is under application control, you can
view the SDI settings and check the status using the Manage SDI Output Settings page.

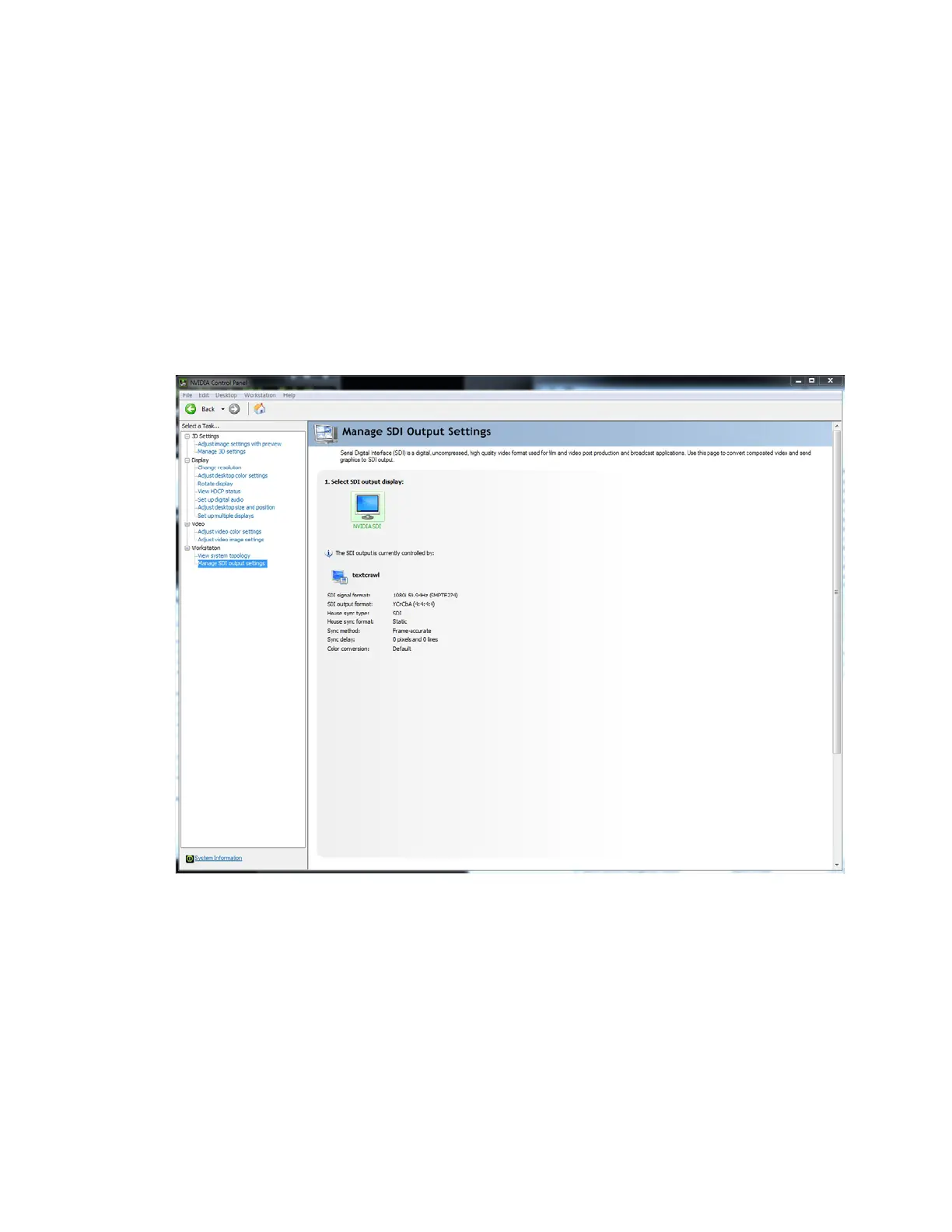

Figure 3.4 Manage SDI Output Settings Page—Application Control

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
