Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 23
Chapter 03 : Windows–Using the Graphics to SDI Control Panel

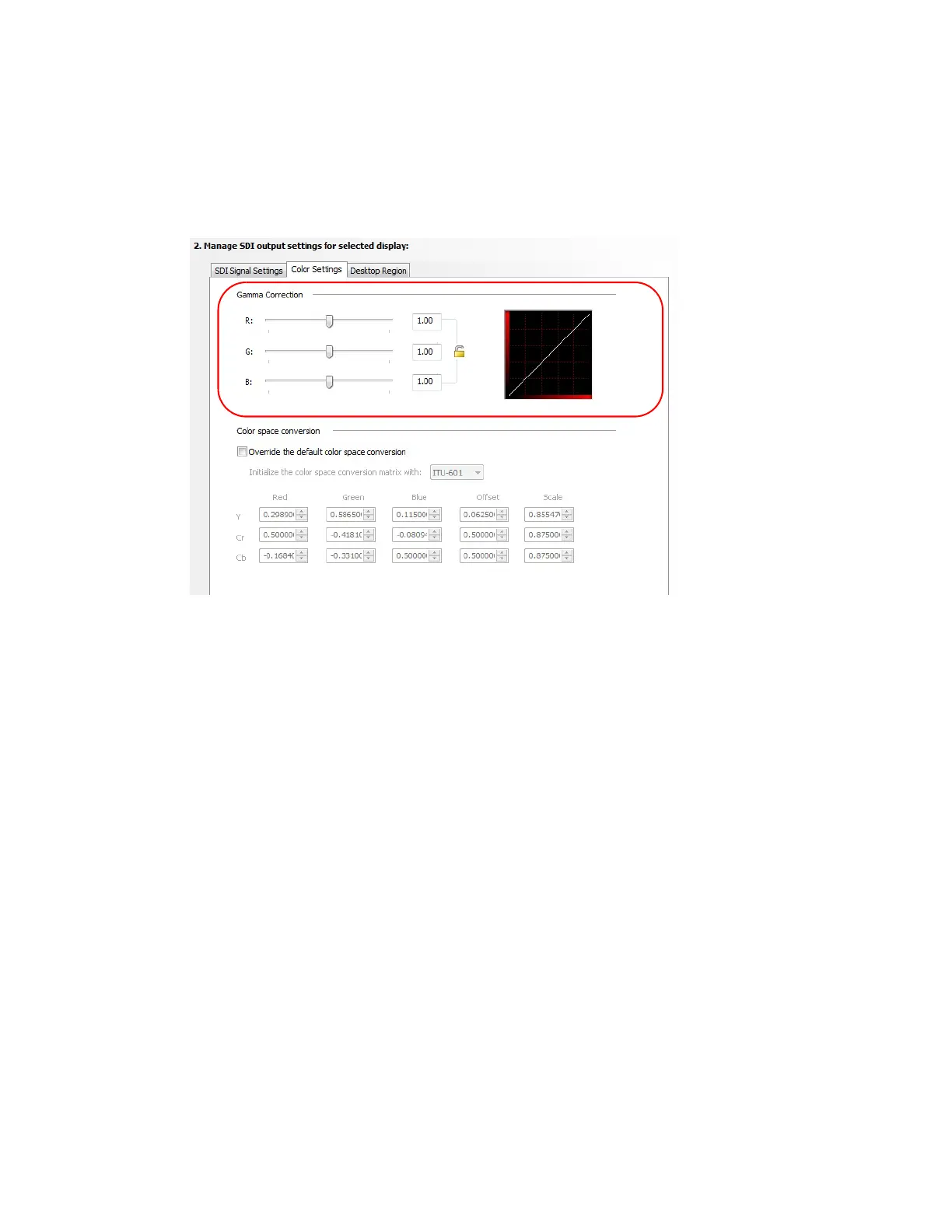

Applying Gamma Correction
To specify the gamma correction to use for the source stream:
1 From the NVIDIA Control Panel navigation tree pane, under Workstation, click
Manage SDI Output Settings and then select the Color Settings tab.
2 Specify the RGB Gamma values using one or more of the following methods, then
click OK when finished:
• Click and drag each R, G, or B slider to the appropriate value.
• Enter the R, G, or B value in the respective boxes or use the up and down arrows.
To keep all gamma channels at the same value while you adjust them simultaneously,
click the Lock all channels check box.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
