Nvidia Quadro K5000 User Manual

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 6
Chapter 02 : NVIDIA Graphics-to-SDI
Installing the NVIDIA Quadro SDI

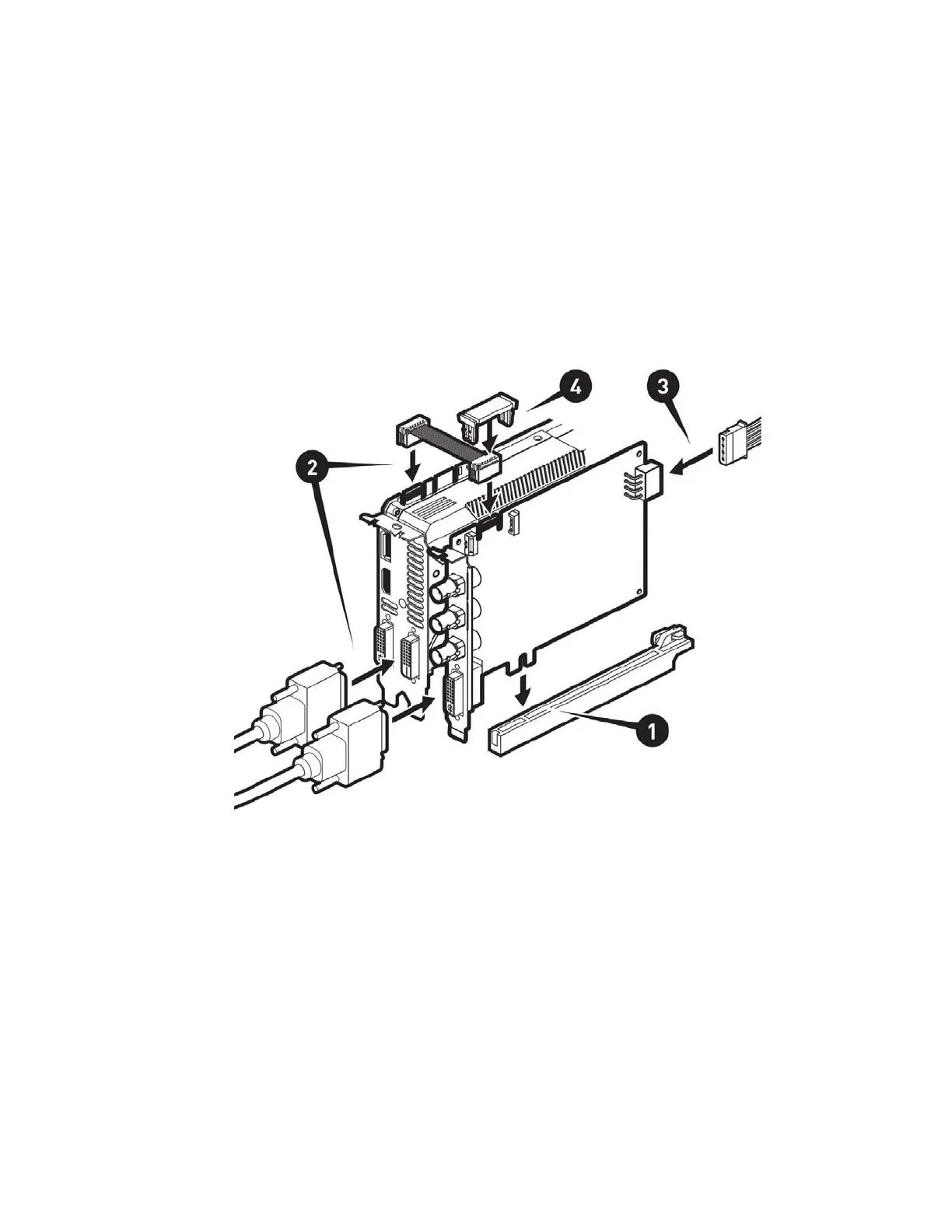

Step 1: Install the NVIDIA Quadro SDI
1 Insert the Quadro SDI Output board into a free PCI or PCI Express slot.
2 Connect the included cables between the SDI Output board and Quadro GPU.
Make sure to use the connector labeled "SDI" or "SDI | SYNC" on the Quadro board
3 Connect the Molex HDD power cable to the SDI Output board.
4 Attach the included retention clips to the SDI Output board and Quadro GPUs.
5 Close the chassis cover.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
