Nvidia Quadro K5000 User Manual

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 7
Chapter 02 : NVIDIA Graphics-to-SDI
Step 2: Connect the Auxiliary Cabling and Monitor
1 Connect the DVI Connectors.
Connect one end of the DVI cable to the DVI connector on the SDI Output card, and
the other end to the DVI connector on the NVIDIA Quadro SDI card as shown in
Figure 2.1 and Figure 2.2.
The NVIDIA Quadro SDI will not work properly if the cable is connected to the other
digital connectors. .

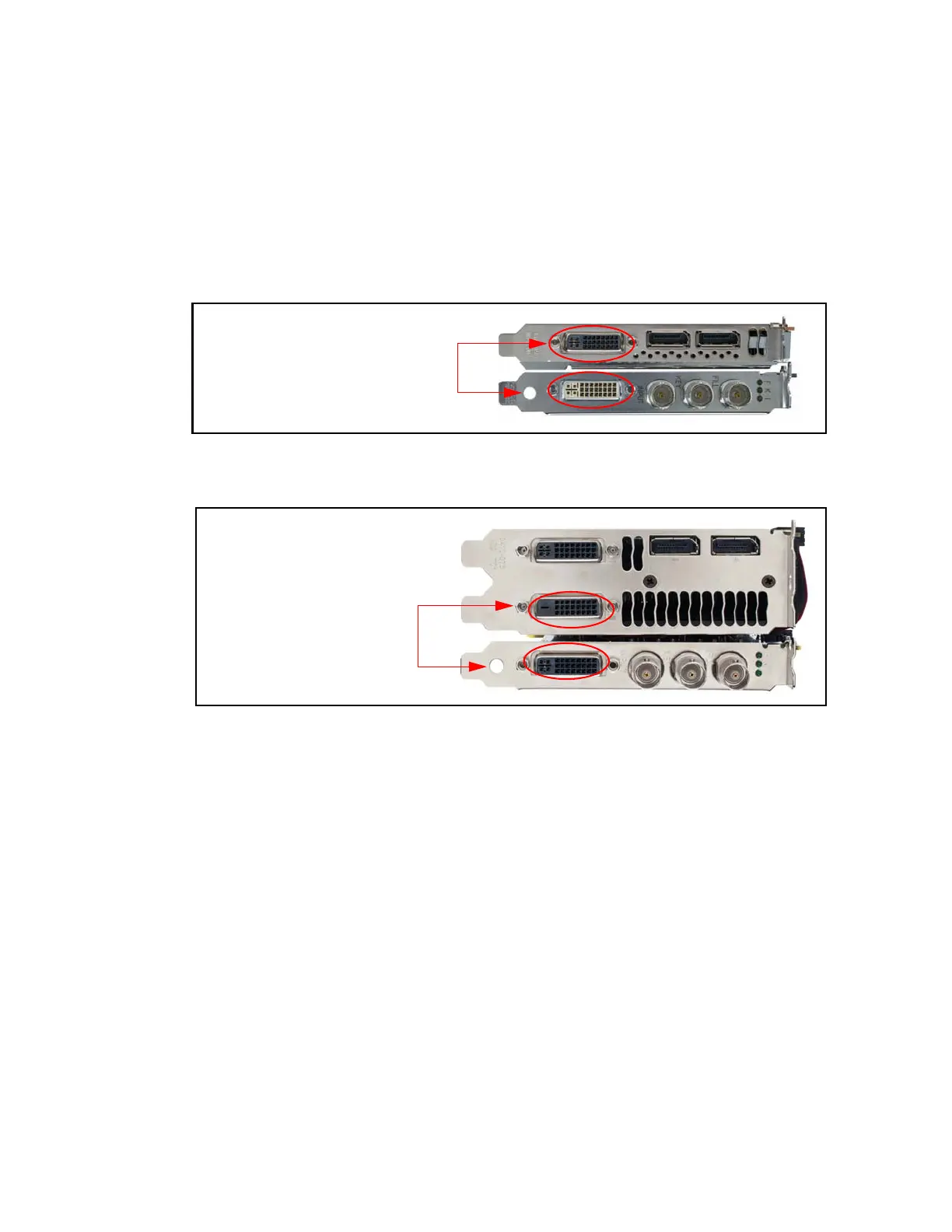

Figure 2.1 DVI Connection: SDI Output card to Quadro K4000
Figure 2.2 DVI Connection: SDI Output card to Quadro K5000/K6000
SDI-Output Card DVI Connector
Quadro K4000 DVI connector
Quadro K5000/K6000
SDI-Output Card
DVI Connector
DVI Connector

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
