Nvidia Quadro K5000 User Manual

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 29
Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Viewing the SDI Connection Status Using the
Topology Viewer
For workstation systems, a topological view of the system is available to let you quickly
check the status of your particular graphics environment.

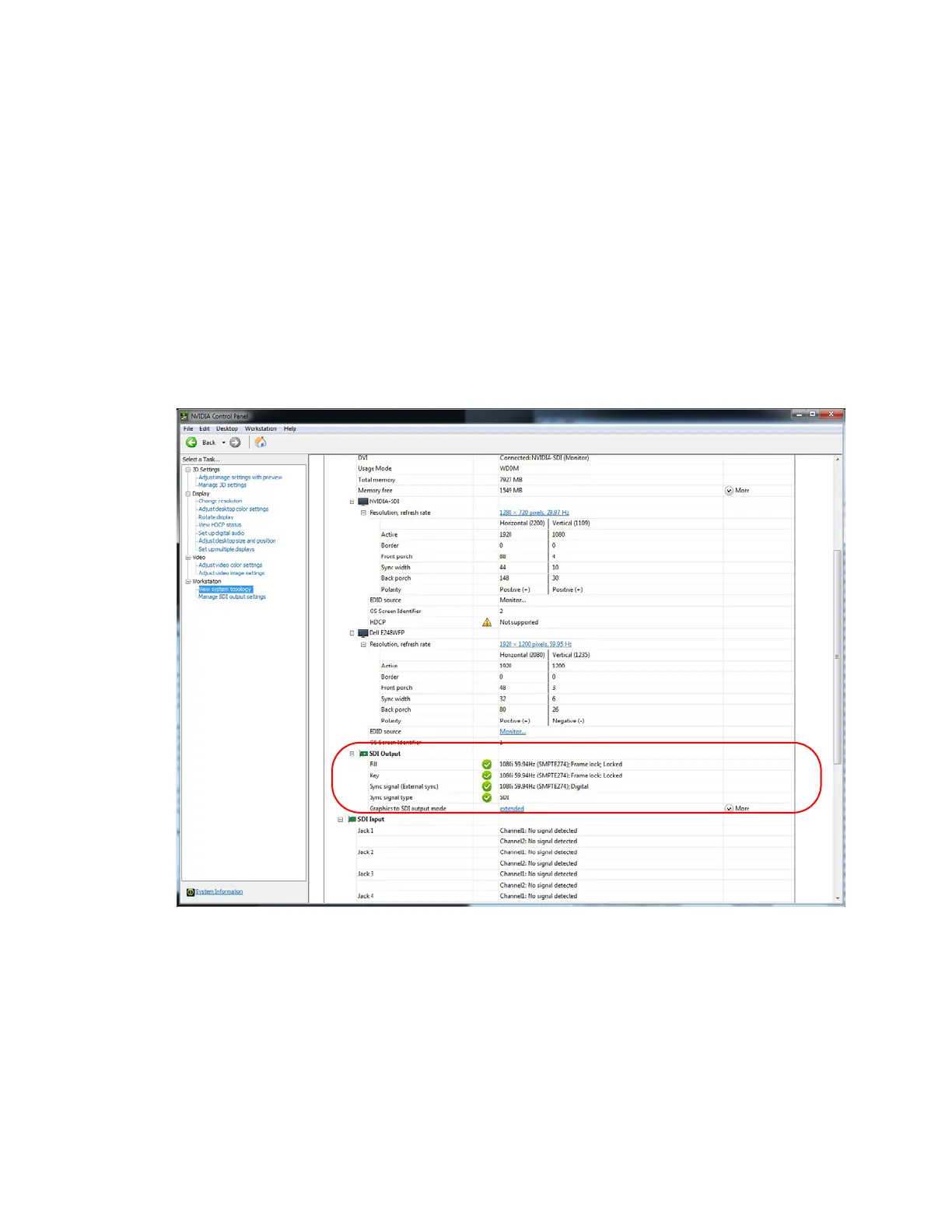

The View System Topology page provides SDI status information for each display, the
graphics card-to-SDI card pairing, and the connection status information for the NVIDIA
Quadro SDI cards. In addition to viewing status information, you can also change
various settings using the View System Topology page.
To view the system topology, go to the NVIDIA Control Panel Select a Task pane, and
under Workstation click View system topology.
The SDI output board appears after the displays connected to the GPU.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
