Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Understanding the Status Indicators
The LEDs on the NVIDIA SDI Output Card connector bracket indicate the status of the
SDI outputs and the synchronization input signals.

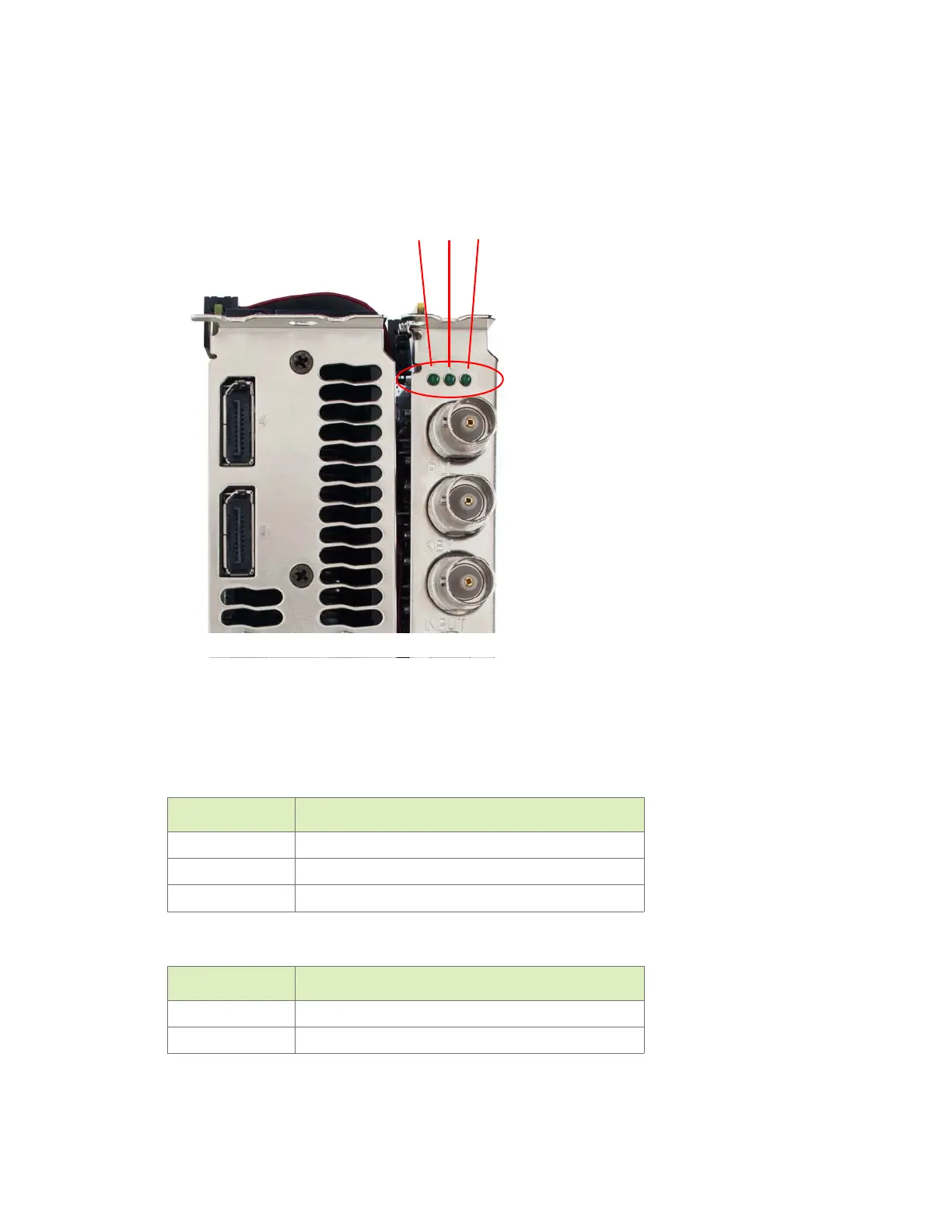

Figure 3.1 SDI Connection LED Indicators
The activity of the LEDs indicates the signal status as follows:
 FILL or KEY Out
 Input
Status Meaning
Off (gray) SDI output is not in use
Steady Green SDI output has power.
Blinking Green SDI output is active.
Status Meaning
Off (gray) SDI input synchronization is disabled.
Blinking Green Valid SDI synchronization signal is detected.
SDI Output Card LEDs
FILL KEY INPUT

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
