Chapter 03 : Windows–Using the Graphics to SDI Control Panel
2 If you are using more than one NVIDIA Quadro SDI card, then under Select SDI
output display click the display icon corresponding to the display you want to
configure and follow the remaining instructions for that display.
If this option does not appear and your system contains more than one NVIDIA
Quadro SDI card, see “Enabling Multiple SDI Cards” on page 27 for instructions on
enabling the cards.

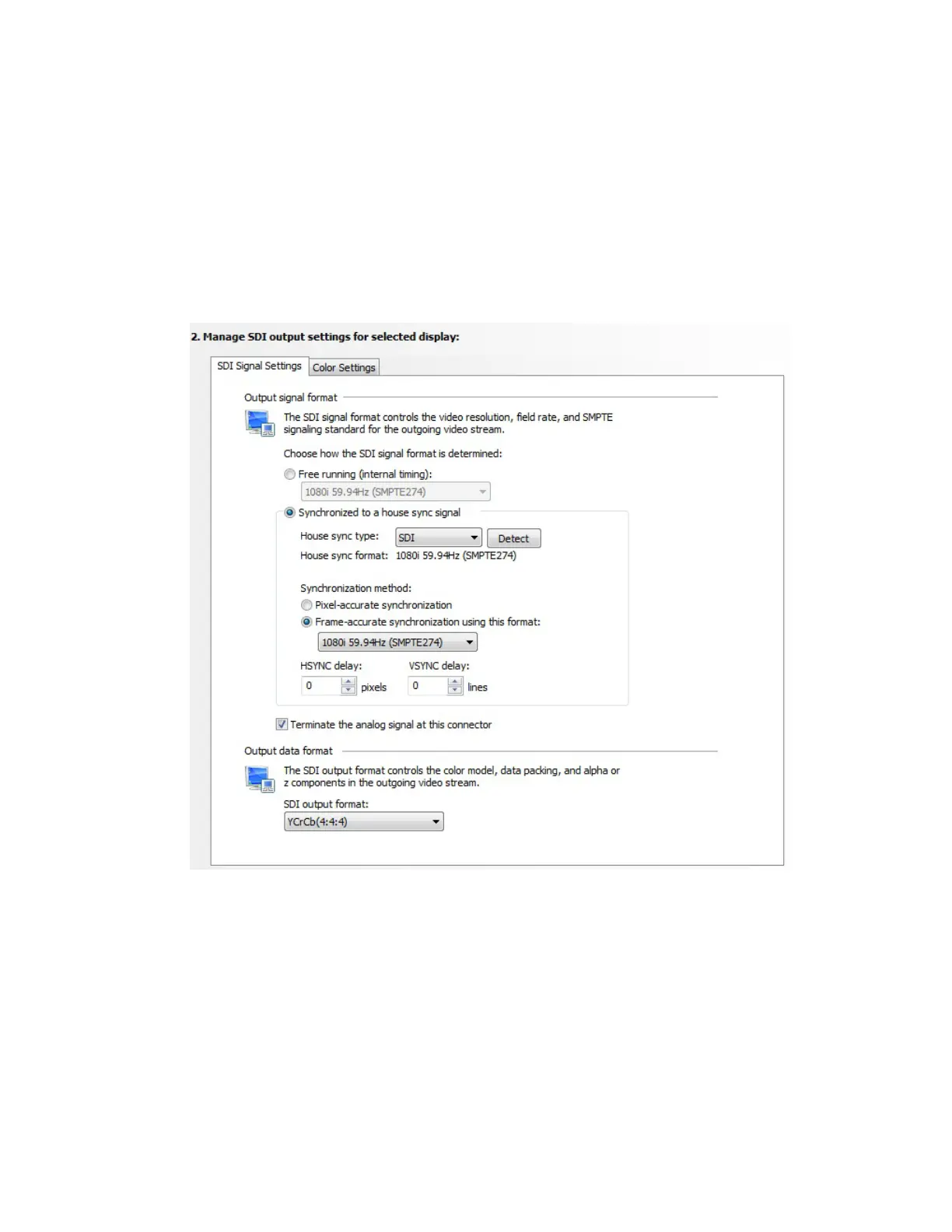

3 Click the SDI Signal Settings tab and choose a method for determining the format of
the SDI output - either using internal timing or synchronized to an external signal
source.
To use internal timing, select Free running (internal timing), then click the list
arrow and choose from the list of available SDI signal formats.
To synchronize to an external signal source, make sure the house sync is connected to
the INPUT BNC connector on the graphics card, then select the Synchronized to a
house sync signal radio buttion and set up the synchronization and signal formats
as follows:
• Select the House sync type radio button (SDI or Composite) that corresponds to
the sync signal type you are using.
• To synchronize the pixel scanning of the SDI output to the external signal using
genlock, select Pixel-accurate synchronization.
