APPENDIX A ONBOARD DIP SWITCH
The Quadro SDI graphics card has an onboard dip switch, located on the SDI output
card, that determines the default SDI operating mode. Subsequent software changes
override these settings.

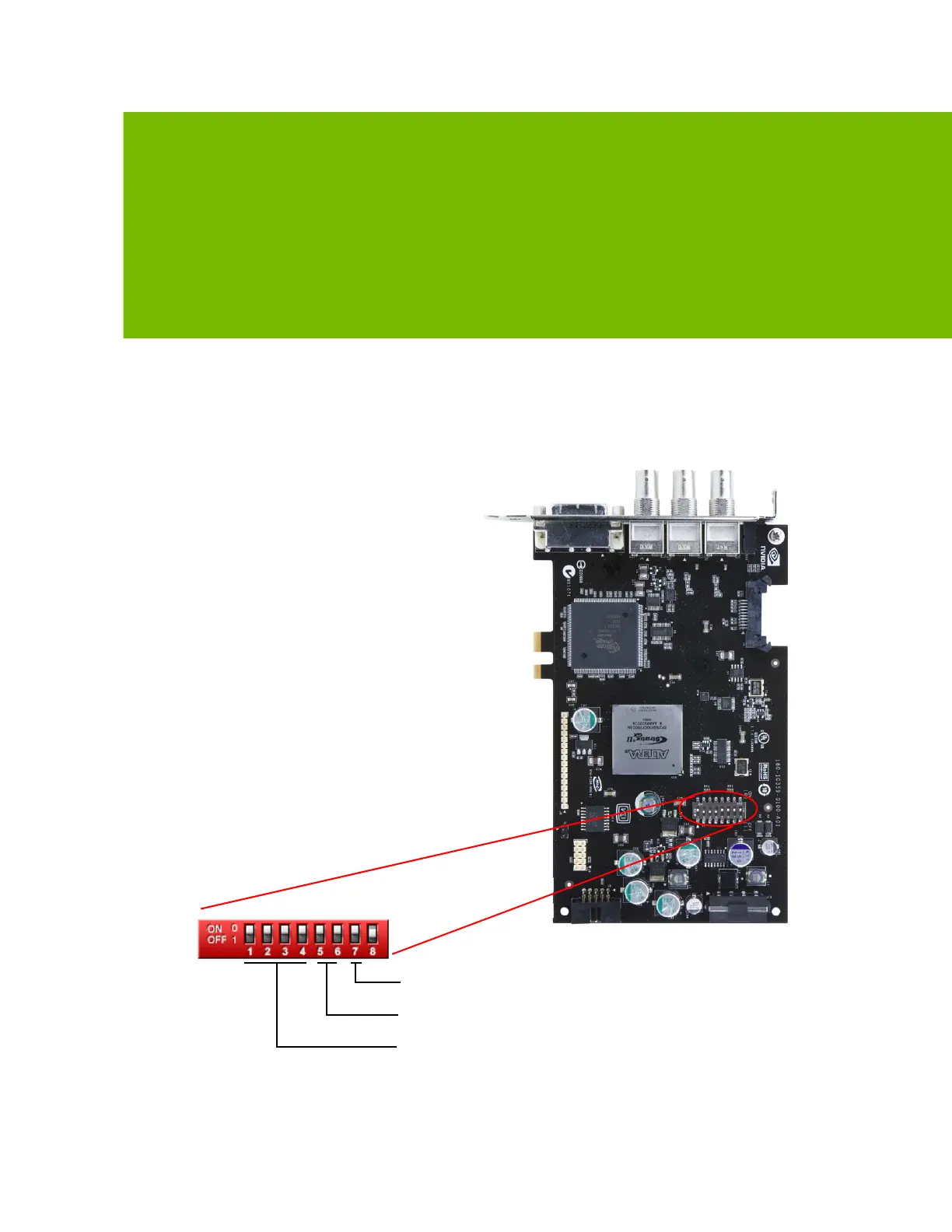

Figure A.1 Onboard DIP Switch Positions
(7) Auto Switch (See Table A.3)
(5-6) Sync Source (See Table A.2)
(1-4) Output Video Format (See Table A.1)
