Physical Specications and
Clearances
Table 5: Physical Specications
Water Side Pipe Connections 1-1/4” FPT
Condensate Pipe Connection 3/4” CTS Stub
Main Power Conduit Connection 1-1/2” Female Thread
120V Power Conduit Connection 3/4” Female Thread
Net Weight (Dry, no Fans) 2,300 Pounds
Net Weight (Shipping) 2,400 Pounds
Net Weight (Filled, w/Fans) 2,604 Pounds
Fan Unit Net Weight (Each) 140 Pounds
Refrigerant Charge 60.0 Pounds
Refrigerant Oil Charge 158.4 Ounces
Internal Water Volume 2.9 Gallons

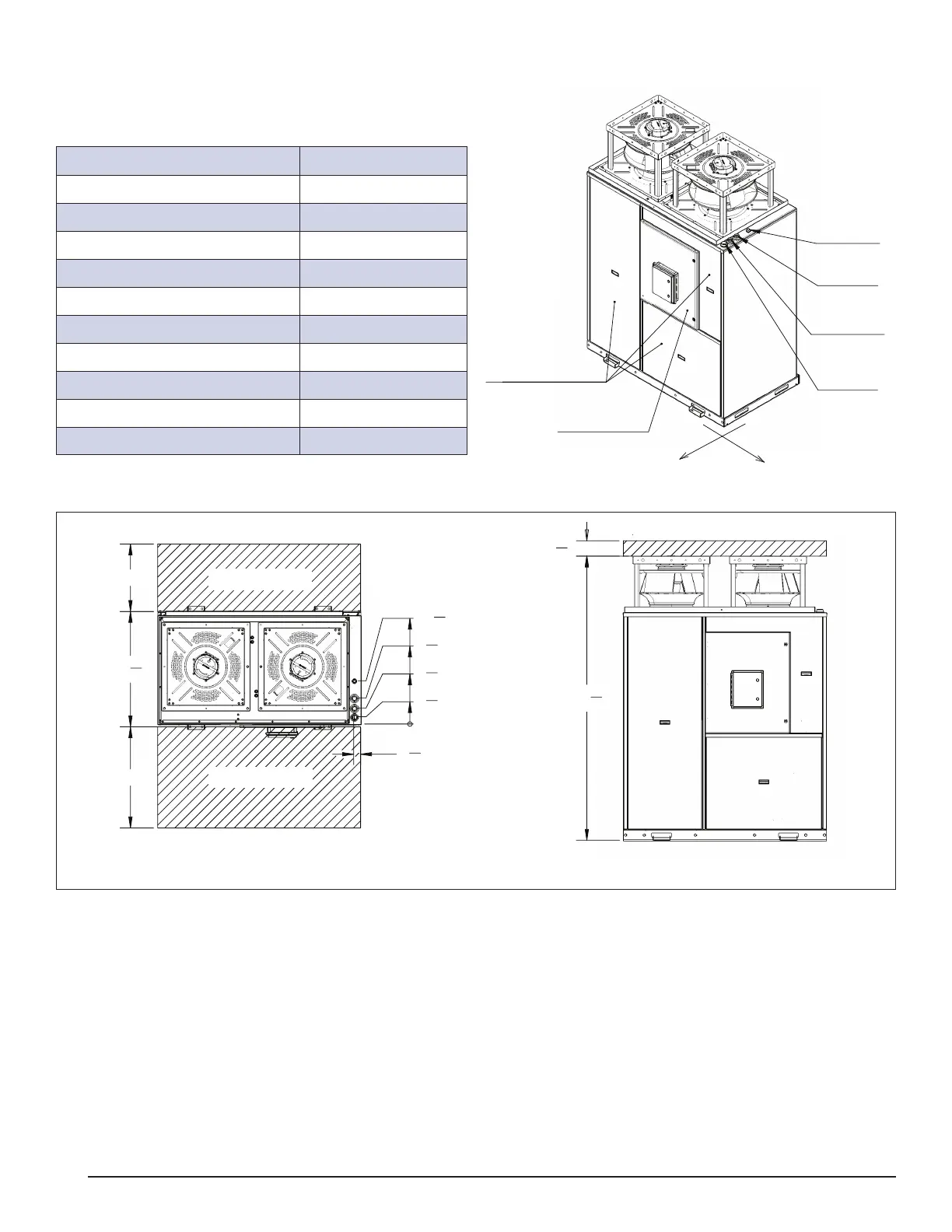

Figure 1: Clearances
101
1
4
"
5
1
2
"
FRONT
2
1
2
"
24"
36"
41
1
8
"
0"
2
5
8
"
5
3
4
"
9
1
4
"
15
3
8
"
TOP
CLEARANCE
CLEARANCE
Figure 2: Component Locations
FRONT
LEFT
WATER OU
T
1-1/4" FPT
WATER IN
1-1/4" FPT
POWER
ACCESS
CONDUIT
SERVICE PANELS
ELECTRICAL
ENCLOSURE
CONTROL
ACCESS
CONDUIT
Clearance Notes:
1. Unit is designed to be installed with zero side clearance, and all typ-
ical service items are serviceable from the front. However, defrost
heaters would need to pull out to the side if replaced. Units may be
installed with successive units offset 6" to the rear to allow the evapo-
rator mounted heaters to pull from the unit right side, or in the unlikely
event of element failure the unit could be temporarily disconnected
and moved.
2. Bottom clearance to the ground varies by project requirements, and is
driven by the height required to properly pitch condensate piping to drain.
Free discharge (unpiped) condensate applications are not generally rec-
ommended. See “Condensate Piping” beginning on page 21 for more in-
formation about piped and free discharge condensate applications.
3. If vibration transmission and/or seismic activity is a concern for your
installation, account for the additional height of vibration isolation or
seismic measures as recommended by a qualied engineer.
4. Top clearance required for fan installation/removal. If fans are in-
stalled prior to mounting and unit can be moved to replace fans in the
event of failure, this can reduce to 1" clearance.
