To Wire for Single Point Power on 208V
Systems
1. Run main power only as normally. Be sure to in-
clude a properly sized additional neutral conductor
in the main power feed wiring. Refer to Diagram 3.
2. Run a new conductor from the Neutral power lug to
the SN terminal on the STB terminal block.
3. Run a new conductor from the L1 main power dis-
tribution block to the secondary fuse on the STB
terminal block.

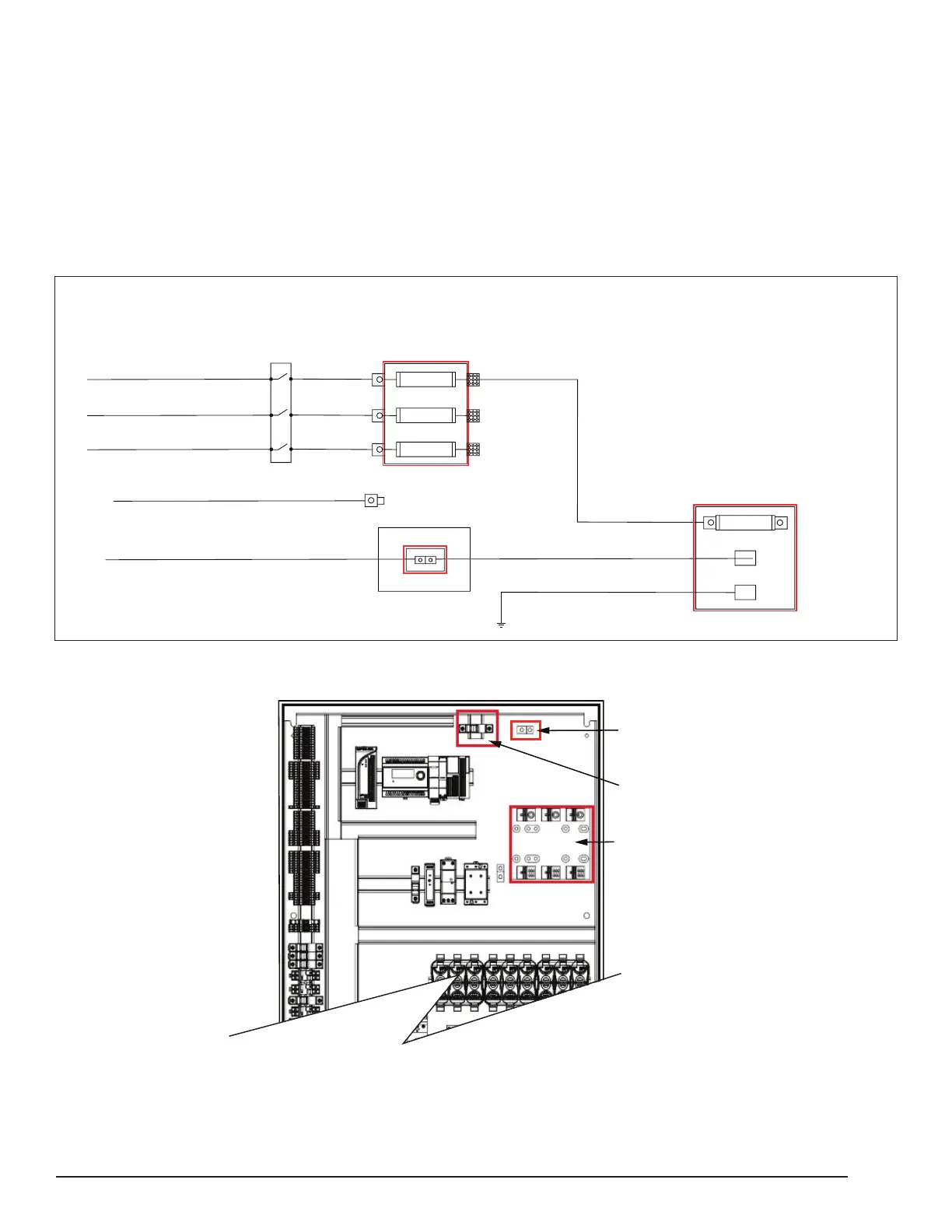

Diagram 3: 208V Single Point Power Additional Wiring
Note: Only eld installed wiring is shown.
Primary Power
Field Supplied
Exterior Disconnects
Main Power IN
Field Installed Wiring
Field Installed Wiring
Field Installed Wiring
L3
L2
L1
Field Installed Wiring
Ground
Ground Lug
L3
L2
L1
Terminal Block
STB
15A
Secondary Fuse
SN
SG
GRN #14 Ground
Neutral
120V
BLK #14
WHT #14
Neutral IN
Field Installed Wiring
N
120 Volt Secondary / Control Power
L3
L2
L1
Electrical Enclosure Backboard
Main Powe
r
STB
Neutral
