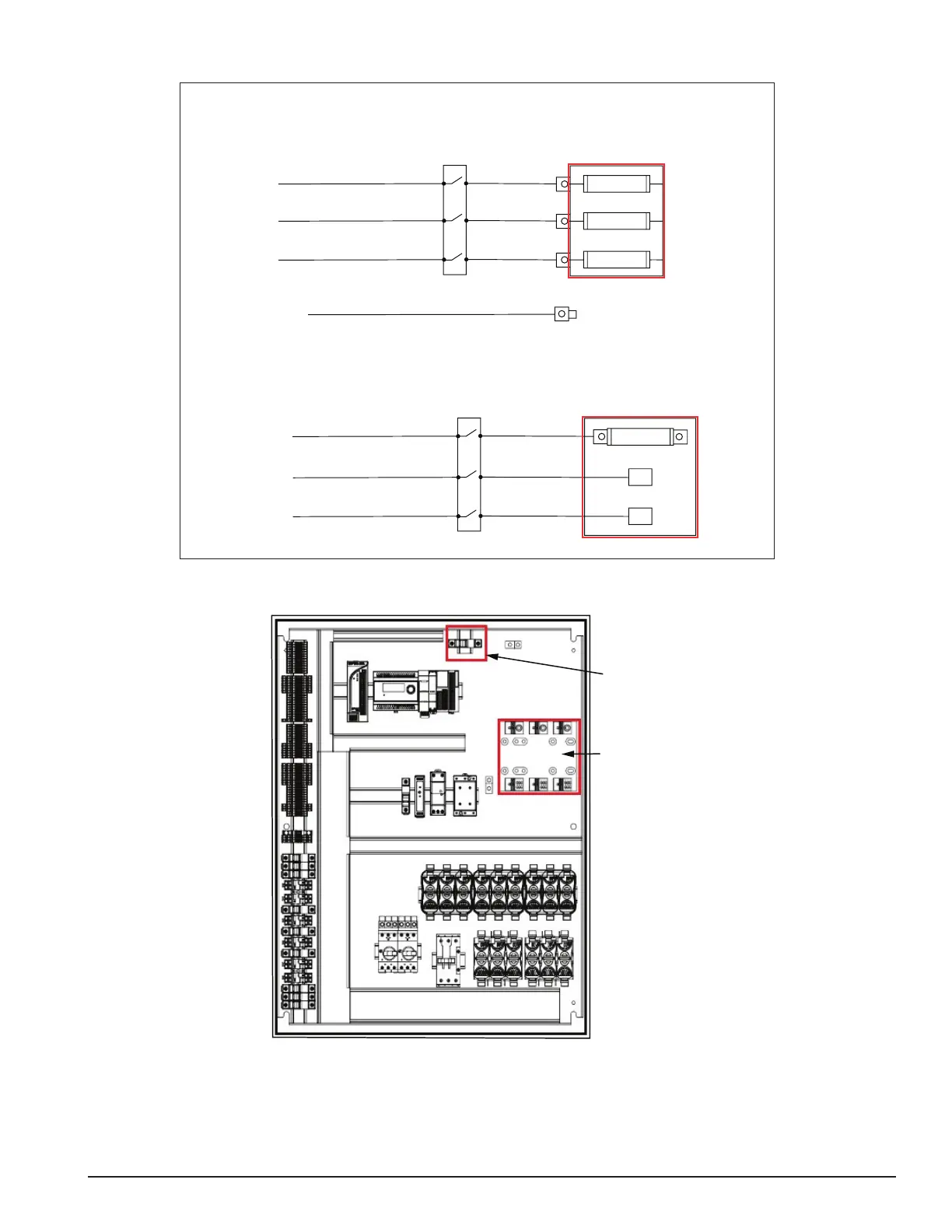

Diagram 2: Power Wiring Connections

120V Secondary / Control Power

Field Supplied

Exterior Disconnects

Terminal Block

STB

Field Installed Wiring

Ground

Neutral

120V

Ground

Neutral

120V

15A

Secondary Fuse

Primary Power

Field Supplied

Exterior Disconnects

Main Power IN

Field Installed Wiring

Ground

Ground Lug

Electrical Enclosure Backboard

Main Powe

STB
