a. Tissue Loading Bar Graph
b. Variable Ascent Rate Indicator
c. Oxygen Loading Bar Graph
d. Breathing Gas Time Remaining Bar Graph
e. Icon - Maximum Depth
f. Icon - Log Mode
g. Icon - Audible Alarm
h. Icon - Temperature
i. Icon - Deco Stop Ceiling
j. Icon - Elapsed Dive Time
k. Icon - Operating Mode (detail A)
l. Icon - Low Battery
m. Control Button - Select
n. Control Button - Advance
o. Sensors - Smart Glo™/ Download

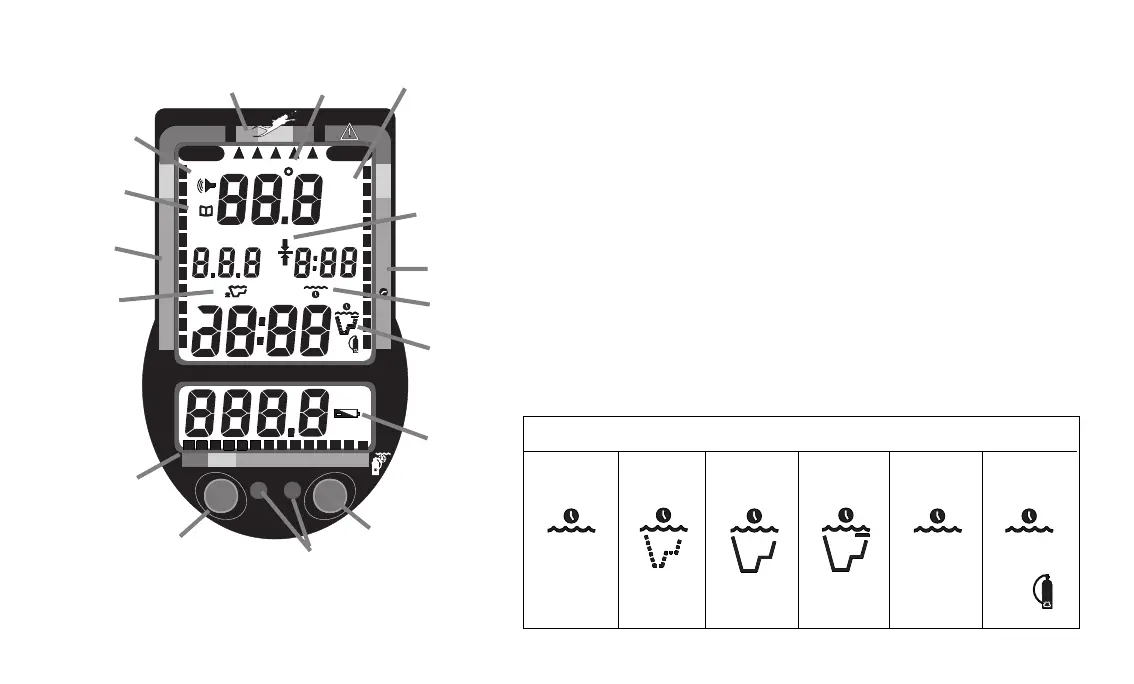

Graphic Interface Legend
Surface
Plan No Deco Deco Gas Time
Detail 'A' - Operating Mode Icons
n
O2 Time
