OCULUS Pentacam User Manual

11 Quality Specifications
20 / 29 Instruction Manual Pentacam® / Pentacam HR® (G/70700/0109/en)
Î Click on the "QS" button if it is highlighted in yellow.
The following dialog box appears:

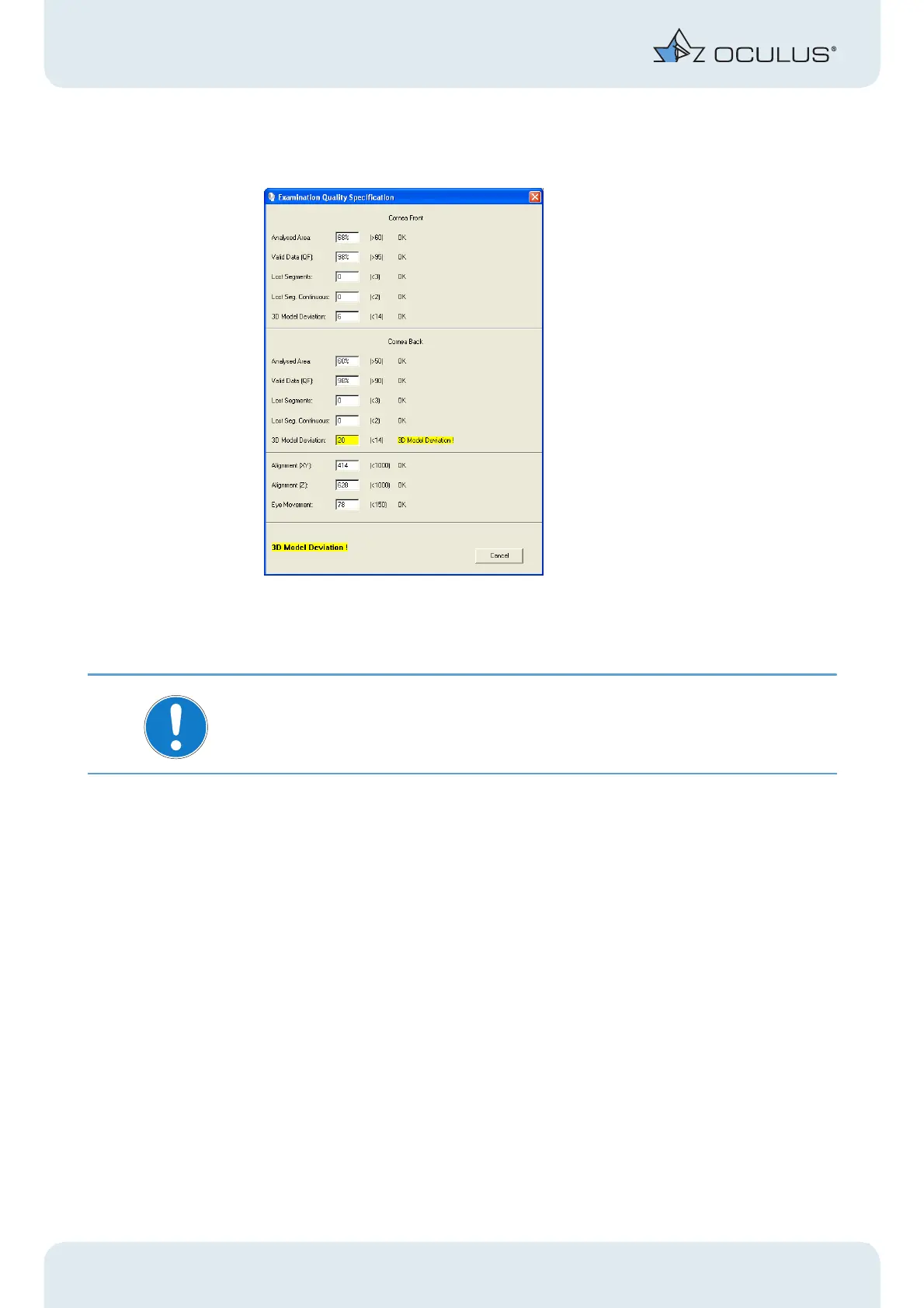

Fig. 11-2: Examination Quality Specification
Î Check the measurement results.
Î If you have any doubts, repeat the measurement.
Note
All examinations are automatically saved, regardless of the quality of the measurement
taken.
Notes on individual parameters
 Analysed Area
If this value is less than the permissible threshold, the patient must widen his or her
eye.
 Valid Data
If this value is less than the permissible threshold, you must darken the room.
 Lost Segments and Lost Seg. Continuous
If one of these values exceeds the permissible threshold, you must ask the patient
not to blink while you are measuring.
 Alignment (XY) and Alignment (Z)
If one of these values exceeds the permissible threshold, you may have moved the
cross slide at the moment you began measuring.
 Eye Movement
If this value exceeds the permissible threshold, it is possible that fixation of the pa-
tient is inadequate.

OCULUS Pentacam Specifications

General

Measurement Time	Less than 2 seconds
Corneal Coverage	Up to 12 mm
Software	Pentacam Software
Data Transfer	USB
Corneal Topography	Yes
Display	External monitor required
Measurement Principle	Scheimpflug imaging
Camera	Rotating Scheimpflug camera
Light Source	Blue LED
Pachymetry	Yes
Anterior Chamber Analysis	Yes
Imaging Principle	Scheimpflug imaging
Fixation	Internal
Power Supply	100-240 V, 50/60 Hz
Resolution	High resolution
Lens Density Measurement	Yes
Dimensions	Varies depending on model and configuration
Weight	Varies by model, check manufacturer specifications
Number of Images	25 or 50
