9600 Periodic Maintenance Procedure 00-880606-02
Page 34
DICOM MODULE (OPTION)
Access the DICOM Q-card, then follow the steps on the Q-card to test the DICOM box module for proper
operation.
MECHANICAL LUBRICATIONS PERFORMED (ANNUAL PM)
LUBRICATE COLLIMATOR
1. Remove the X-ray Tube Housing cover and the Collimator Cover to expose the Collimator.
NOTE: Do not over lubricate the Collimator Iris Ring. Use Permatex Super Lube P/N: 88-299483-00
or equivalent.
2. Sparingly lubricate the edge of the Collimator Iris Ring that rotates through the Iris Brass Guides.

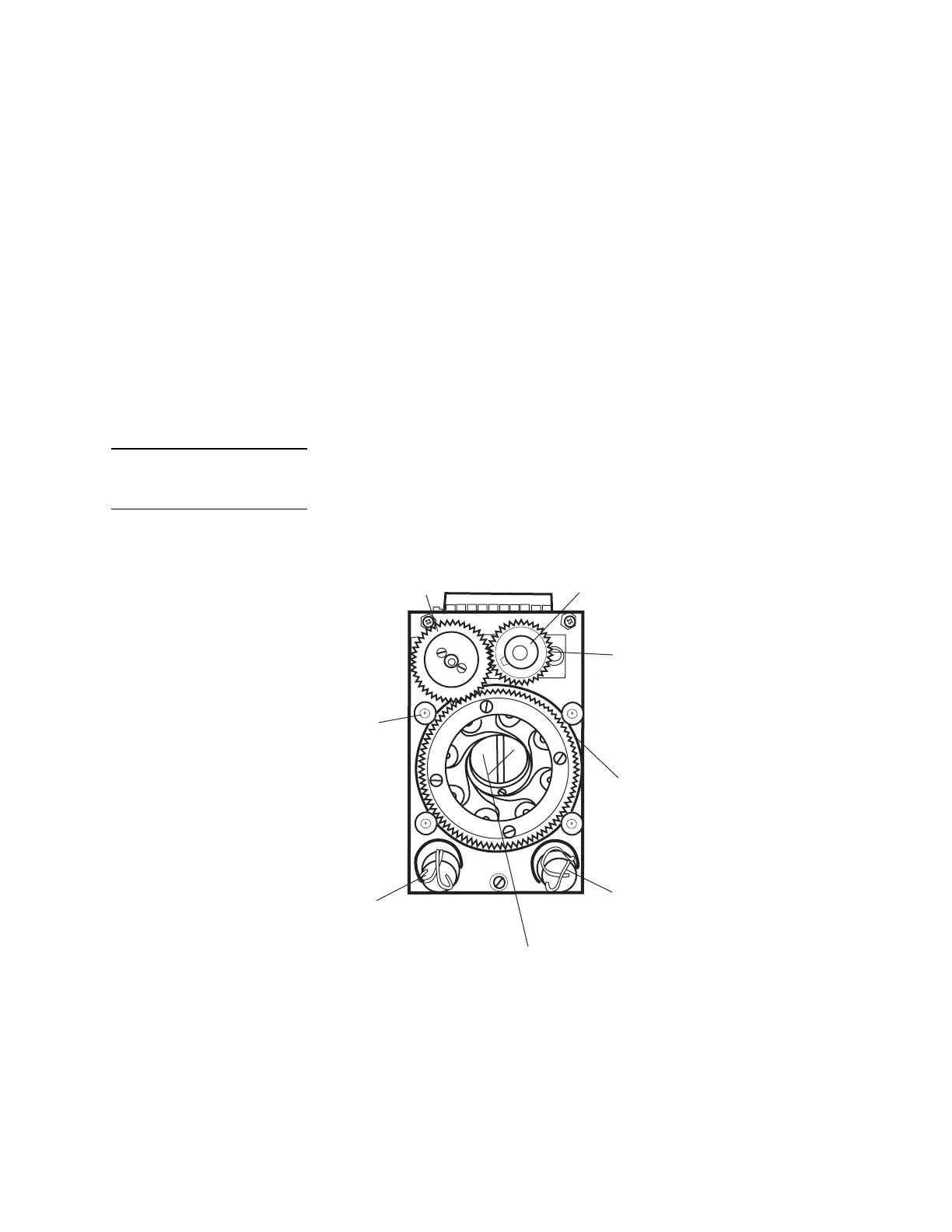

Bottom View of the
Collimator
IRIS
POTENTIOMETER
IRIS BRASS
GUIDE
SHUTTER IN/OUT
MOTOR (M1)
SHUTTERS
SHUTTER
ROTATE
MOTOR
(M2)
IRIS RING
IRIS MOTOR (M3)
IRIS CLUTCH ASSEMBLY
LUBRICATE VERTICAL COLUMN CHAINS
1. Operate the vertical lift motor until the upper limit switch is reached.
