OEC 9600 - X-Ray Beam Alignment Verified (Annual PM Only); Setup

9600 Periodic Maintenance Procedure 00-880606-02
Page 35
2. Reach through the access holes in the casting and spray the horizontal and vertical chains lightly
with Permatex Super Lube Spray P/N - 88-299485-00.
5. X-RAY BEAM ALIGNMENT VERIFIED (annual pm only)
WARNING The following steps produce X-rays. Use appropriate precautions.
Setup
1. To nominalize C-Arm flexure, release the C-Arm brake and position the C-Arm at a 45° angle as
shown below.
2. Attach the Beam Alignment Tool on the Image Intensifier.

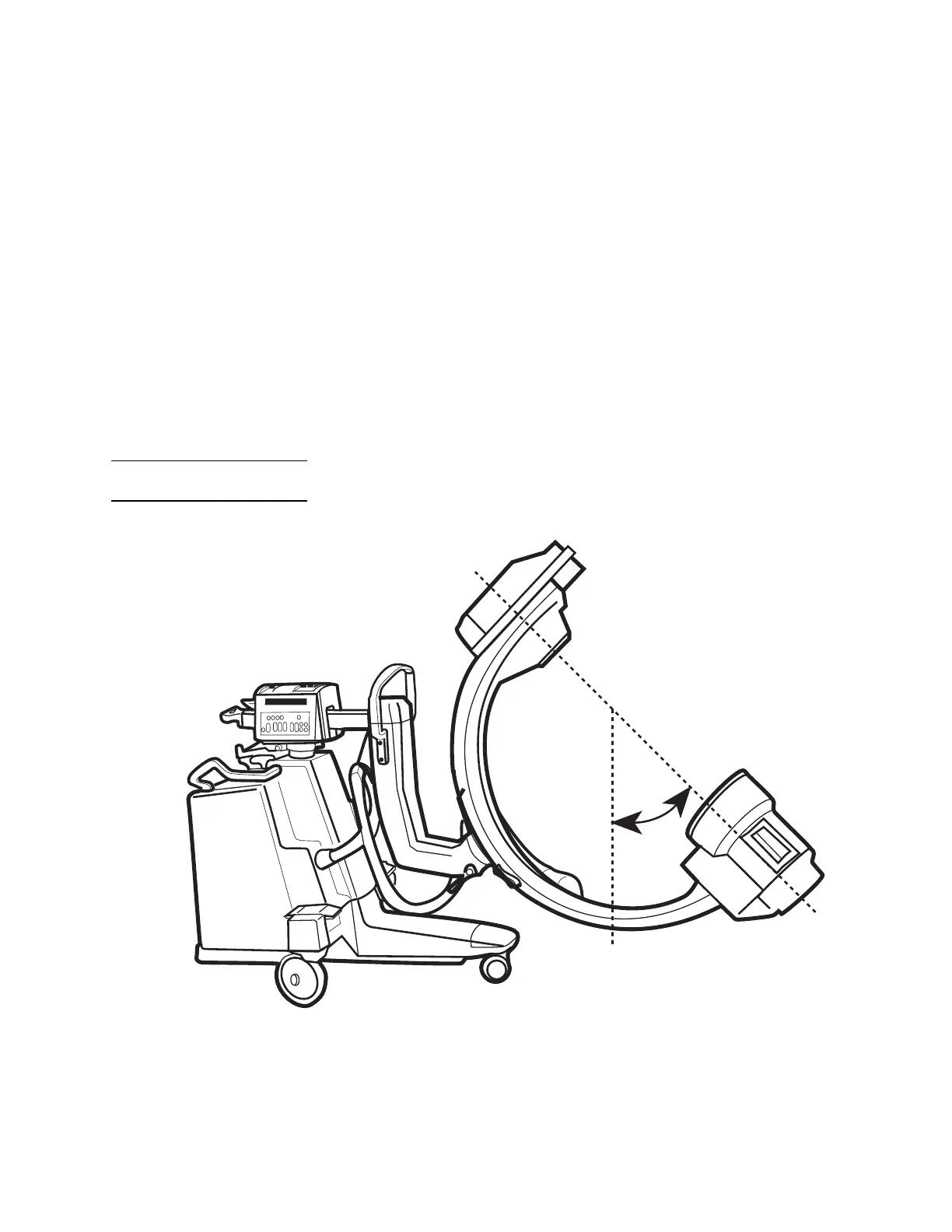

C-Arm Positioning
45°
