OEC 9600 - Beam Alignment Verification

9600 Periodic Maintenance Procedure 00-880606-02
Page 36

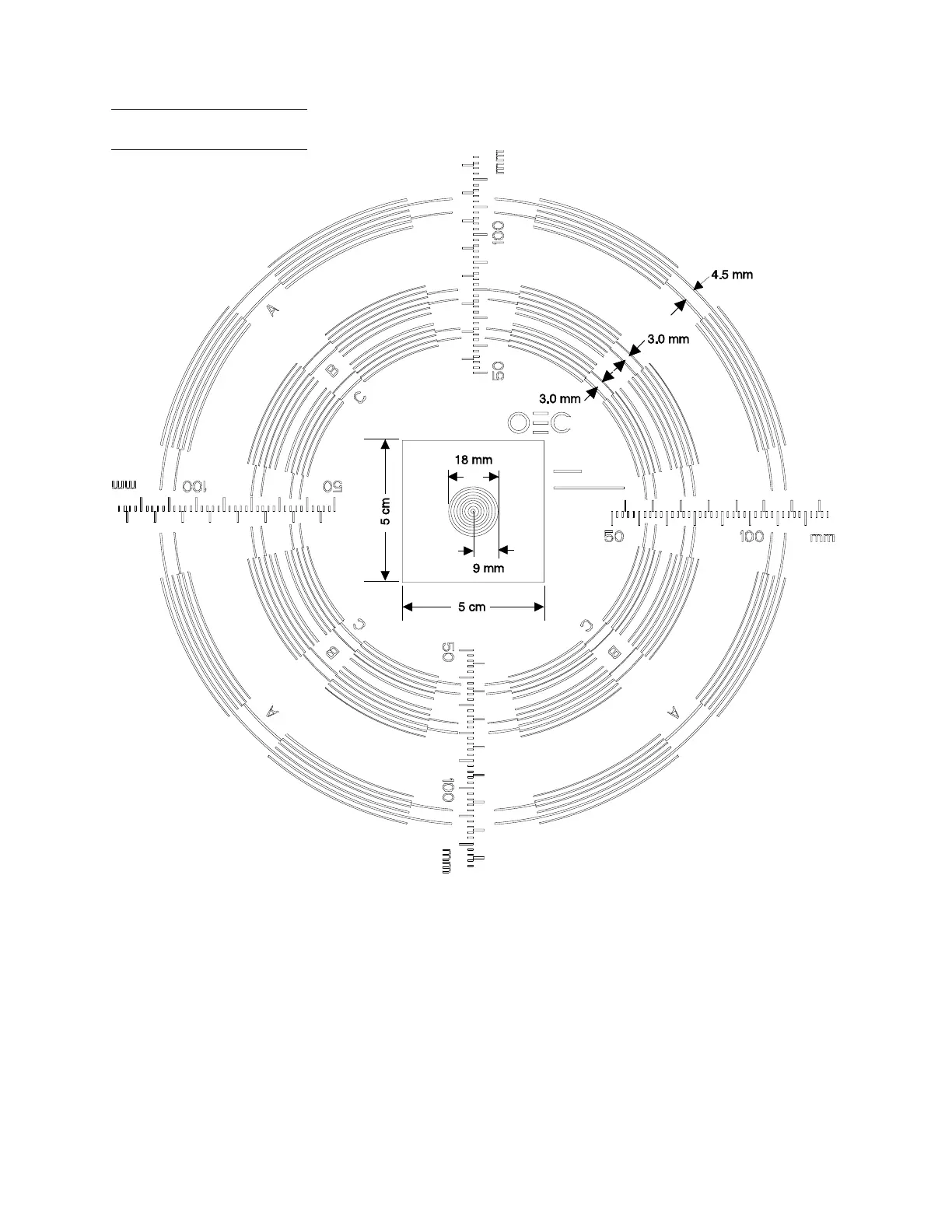

Beam Alignment Mask
BEAM ALIGNMENT VERIFICATION
1. Load a film cassette in the alignment tool. Make the following four exposures on one sheet of film:
2. Select Manual - Fluoro, Normal field and then Film mode. Take a 50 kVp @ 0.9 mAs exposure.
3. Select Manual - Fluoro, MAG 1 field and then Film mode. Take a 50 kVp @ 0.9 mAs exposure.
4. Select Manual - Fluoro, MAG 2 field and then Film mode. Take a 50 kVp @ 0.9 mAs exposure.
