18. Replace printer head
! DON’T GRIDE THE PRINTER HEAD.
Take out printer head.
• Power off and take out the power cable from electrical outlet.
• Take away platter.
• Open printer door, pull out printer.

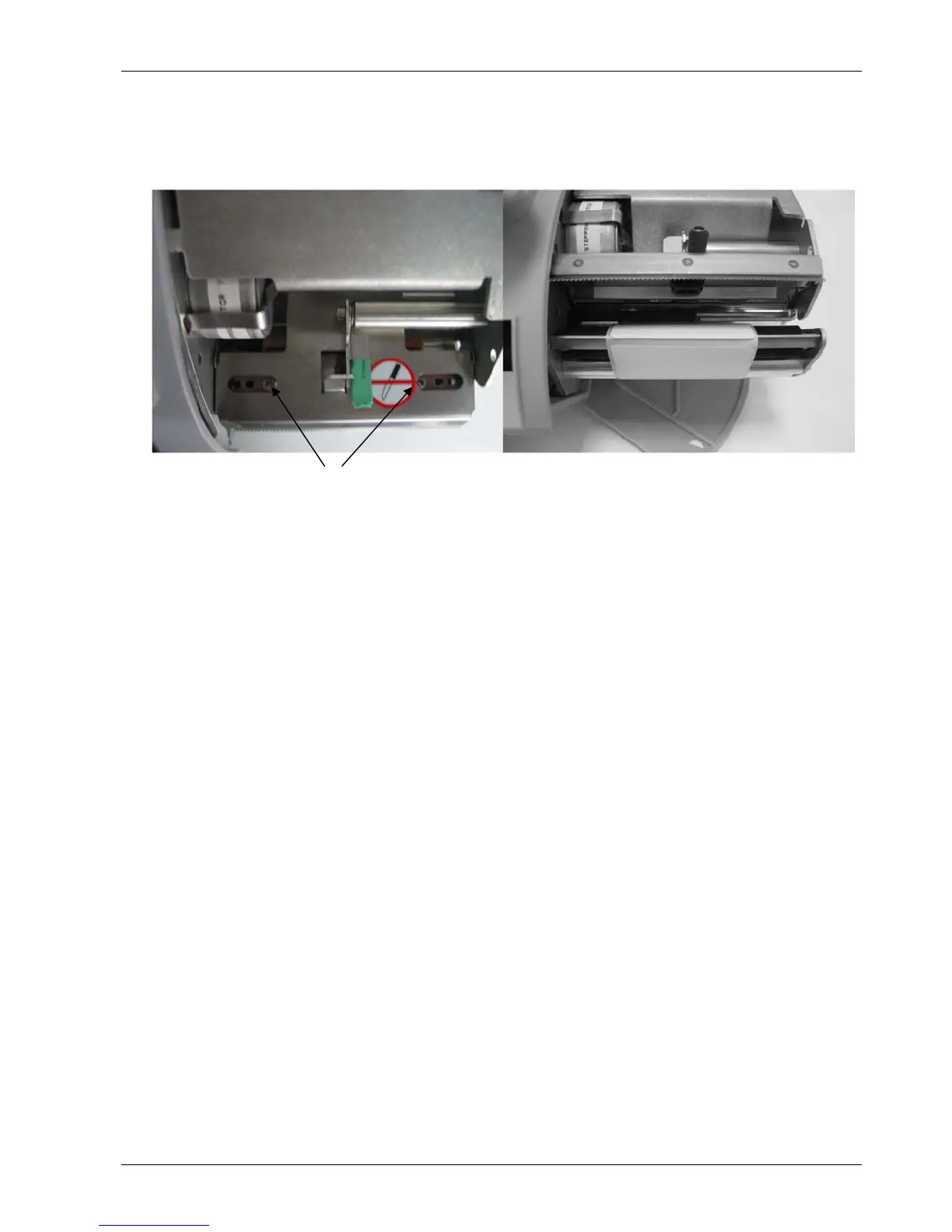

• Screw out 2 screws (J) for fixing printer head.
• Pull out the harness from printer head.
• Take away printer head.
Install printer head
• Insert the printer head harness.
• Put the printer head and spacer to right position. Screw down 2 bolts.
• Close the printer head.
• Push the printer back to scale.
• Put on platter.
• Power on scale.
J
