43502101TH Rev.1 129 /
Oki Data CONFIDENTIAL
APPENDIX F MULTI PURPOSE FEEDER MAINTENANCE
1. OUTLINE
1.1 Functions
This Multi-Purpose Feeder is installed on the front section of the printer, and it supplies paper
automatically through the operation of pulse motor, which is driven by signals sent from the printer.
The main functions are the followings:
• Paper that can be used:
[Paper Types]
• Standard paper: Xerox 4200 (20-lb)
• Special paper: OHP sheets (for PPC), label sheets (PPC sheets)
* Not guaranteed for OHP sheets with attachments on the edge or
reverse side.
• Cut sheet size: Letter, Executive, A4, A5, B5, Statement, A6, COM9, COM10,
Monarch, DL, C5
Special size: Width: 87 to 216mm
Length: 148 to 297mm
[Weight and Thickness]
• 16-lb to 32-lb (60~128 g/m
2
)
• For labels and OHP Sheets: Label sheets: 0.1 to 0.15mm
OHP sheets: 0.08 to 0.11mm
* When using sheets which exceed 24-lb, make sure that the paper exits through the face-up route.

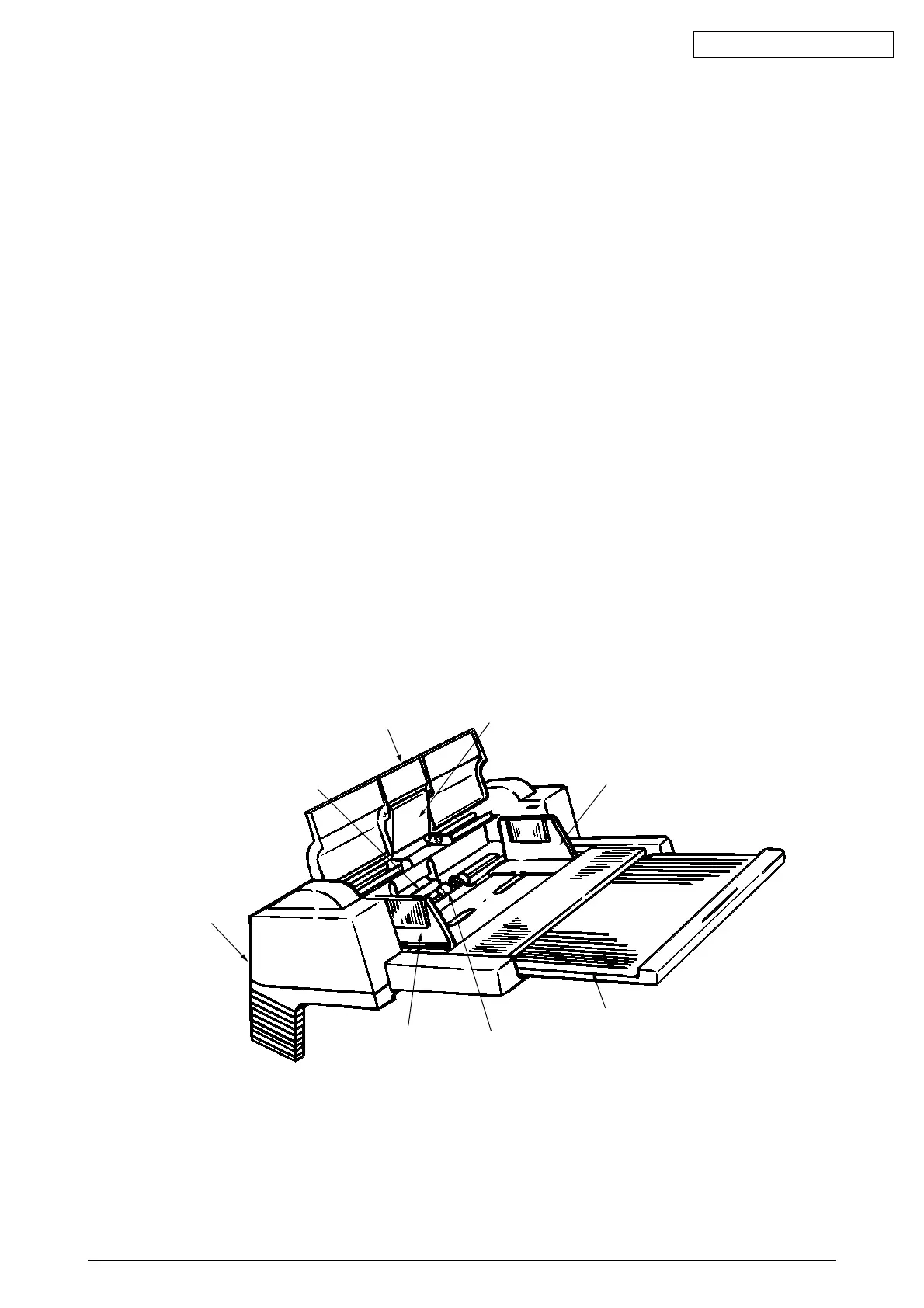

1.2 External View and Component Names
Figure 1-1
Paper Feed Cover
Link
Paper Guide-R
Paper Support
Roller-B
Paper Guide-L
Front Cover
Roller-A
