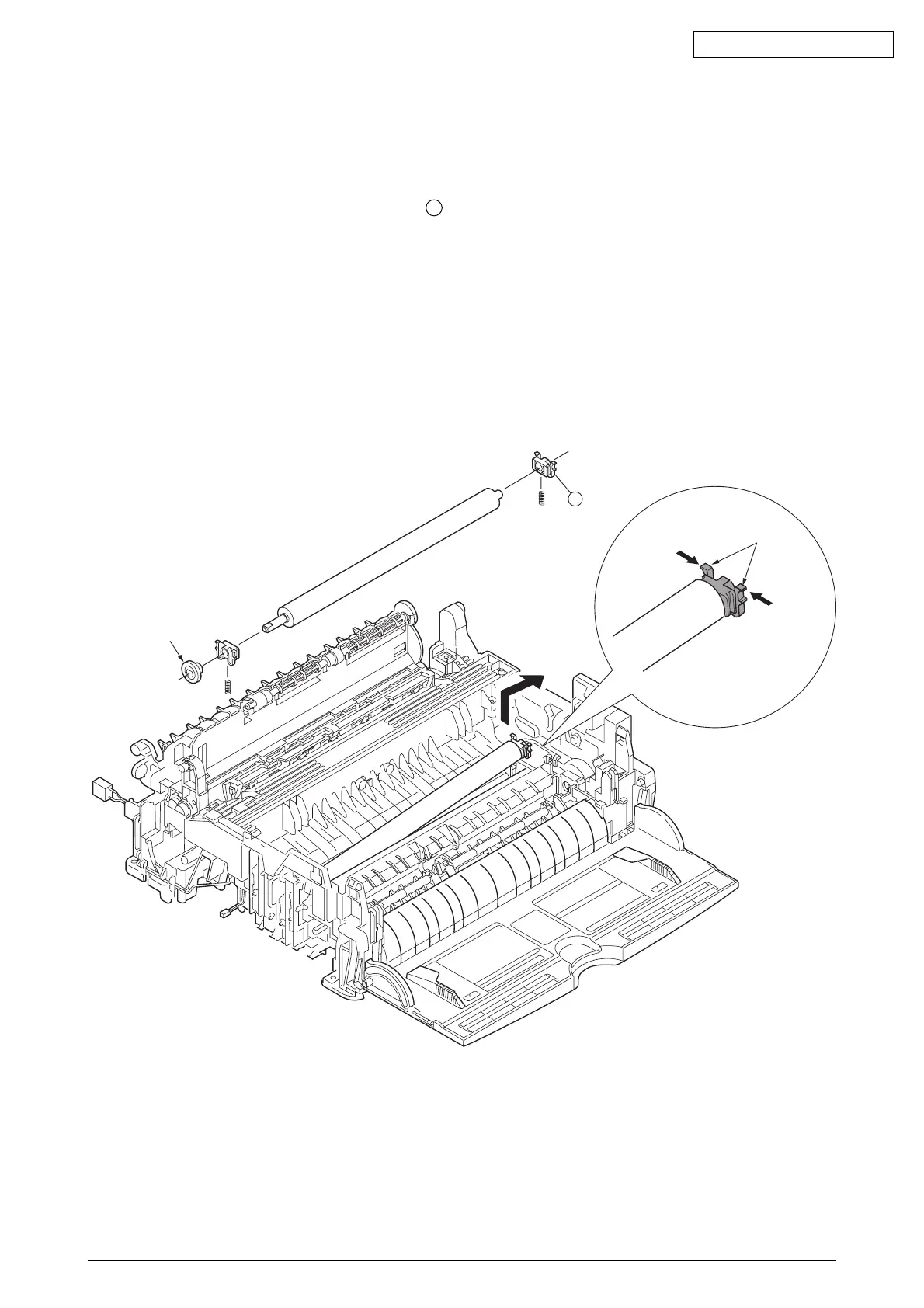

2.3.14 Roller Transfer Assy
(1) With the power switch turned off, unplug the AC cord from the outlet.
(2) Open the stacker cover.
(3) Remove two latches from the bearing A on the opposite side of the gear. (When you release a latch,
do not add the excess force.)
(4) Slide the transfer roller to the right side a little and detach the post in the end part of the gear from
the lower base unit to release two latches of the bearing in the gear side.
(5) Holding the bearing, lift up the transfer roller Assy. (The transfer roller Assy and gear will be also
detached in this time.)
(6) To attach the transfer roller Assy, do the operation in the reverse way of detachment. Be careful
about the vertical direction of the bearing of the transfer roller Assy.
lutch
Gear
A
To Next Page
