Oki B4500 - Sensor Plate (Inlet)

43502101TH Rev.1 36 /
Oki Data CONFIDENTIAL
2.3.17 Sensor Plate (Inlet)
(1) Remove the upper cover (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the face up stacker assy (see 2.3.8).
(4) Remove the lower base unit (see 2.3.4).

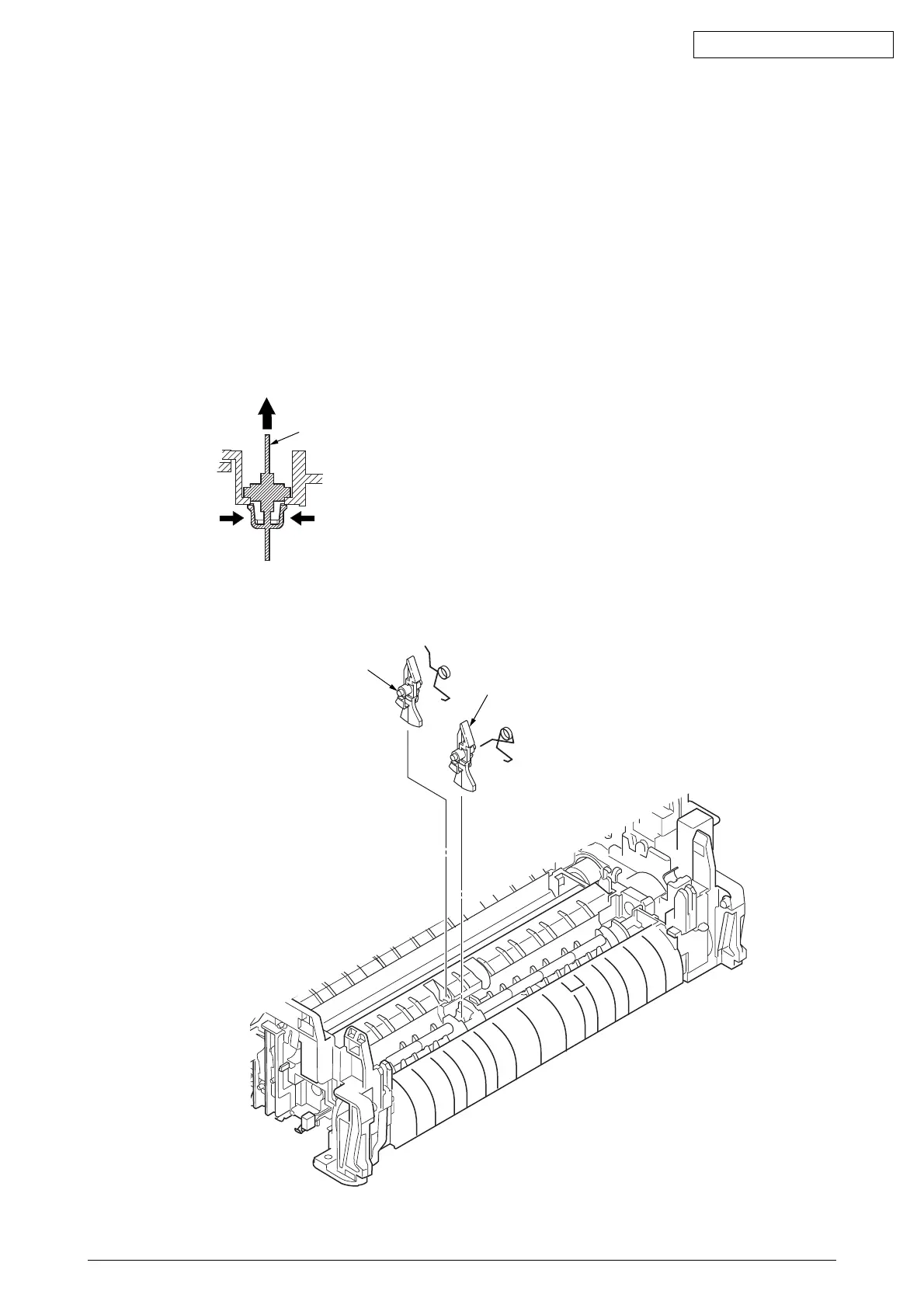

(5) Press the clamps of three sensor plates (inlet and paper) 1, and remove them by pressing them
upward from the bottom. When removing the sensor plates, take care not to lose the springs.
Note : Be careful not to touch (or rotate) the DC motor thoughtlessly. Rotating the DM motor
counterclockwise removes the eject spring. (Refer to 2.3.9.)
Sensor plate (paper)
Sensor plate (inlet)
Spring sensor IN
Spring sensor write
1
1
1
