2.3.6 Pulse Motor (Registration)
(1) Remove the upper cover assy (see 2.3.1).
(2) Remove the lower base unit (see 2.3.4).

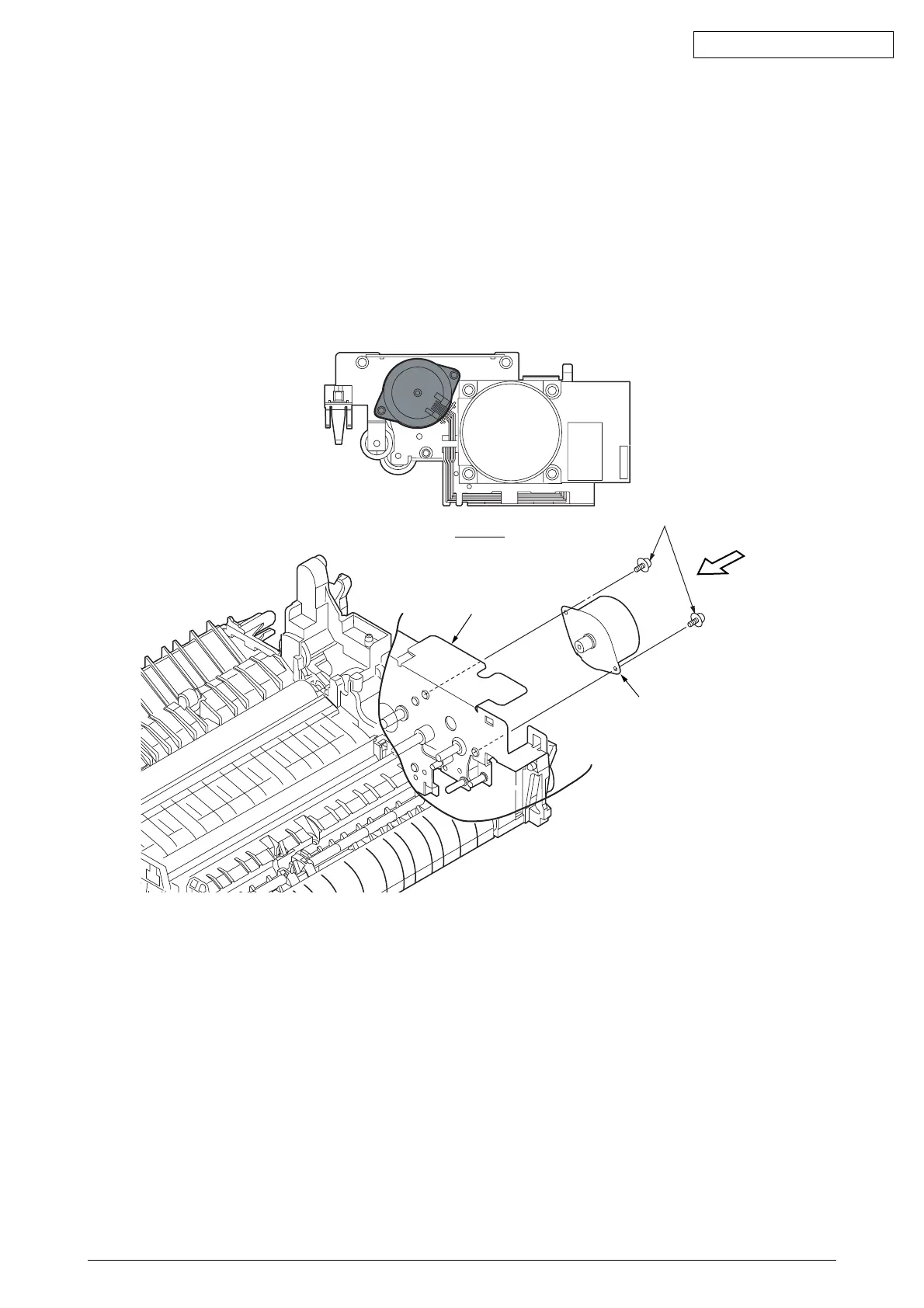

(3) Remove two screws 1 and remove the pulse motor (registration) 2 from the motor bracket 3.
Note : Be careful not to touch (or rotate) the DC motor thoughtlessly. Rotating the DM motor
counterclockwise removes the eject spring. (Refer to 2.3.9.)
2
3
1
View A
View A
